Relacart CONFER X 64-Channel Digital Automatic Mixer
Key Features:
- Dante Digital Audio Protocol
- TCP/IP Connection Mode
- High Pass Filter
- DANTE Digital Sound Card
- HD OLED Display
- Wide Application
Description
Description
CONFER X is a digital automatic mixer with 64-channel input and 16-channel output, which is independently developed by Relacart and the global-first creation. 64-channel input, 16-channel output analog and DANTE digital hybrid matrix control are suitable for wider application engineering. 1-32 automatic mixing channels can set each channel independently and open valves. It can set the most suitable valve level according to the environmental noise, echo and the channel near the loudspeaker.
- Dynamic Range (20 Hz to 20 kHZ, A-weighed, typical)：Digital-to-Analog : 100dB
- S/NS/N(22 Hz – 22 kHz, RMS, A-Filter)：118dB
- Dante interface：64 （input） X 8（output）
Features
Functional Features:

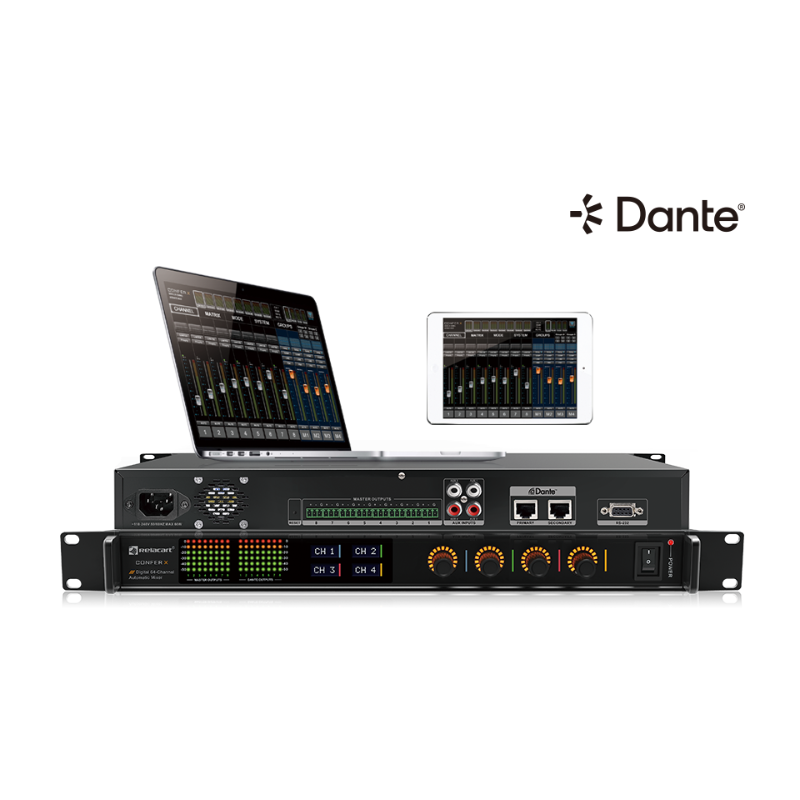

| TCP/IP Connection Mode | The main controller adopts TCP/IP connection mode, and can be connected with special software to realize remote control, remote diagnosis and upgrading of the conference system. |
|---|---|
| High Pass Filter | Full digital signal processing, built-in high pass and low pass filters, limiter, matrix, etc. The basic operation is connected to the computer through special control software, and each channel can be set and adjusted in detail. |
| Multichannel Analog Input Conversion | 64 channel Dante input, channels 1-32 adopt DSP algorithm for automatic mixing, and channels 33-64 support analog input conversion. |
| DANTE Digital Sound Card | The built-in DANTE digital sound card connects the mixer to any Dante device. |

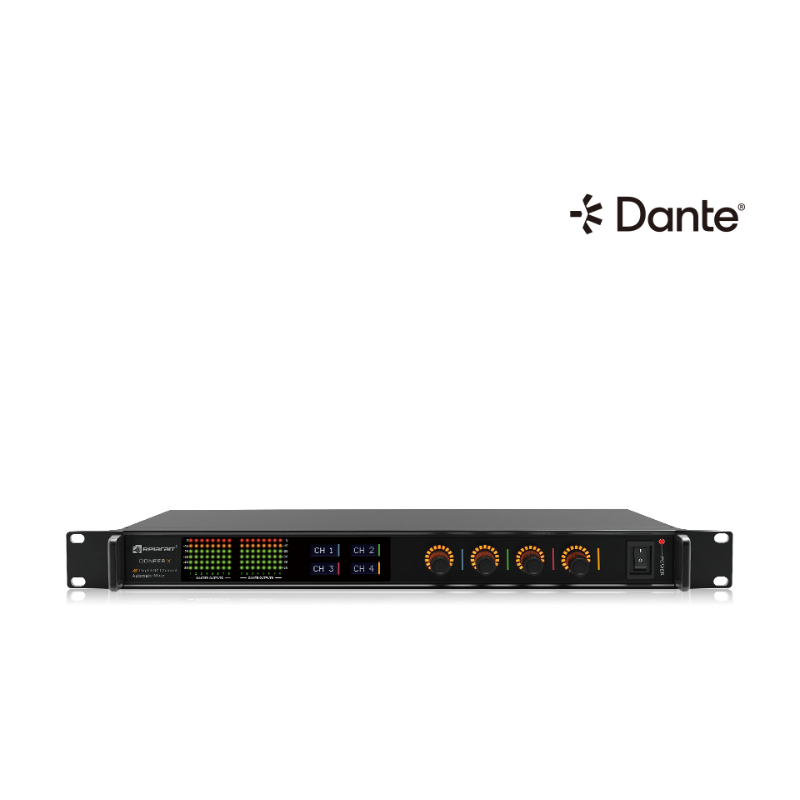

| HD OLED Display | The encoder with scale indication can control the volume of four channels, and any input/output channel can be set to display the volume scale, mute indication, distortion indication and output LINE/MIC indication respectively. Each encoder is equipped with an OLED display screen to display the channel name and channel volume value. |
| Wide Application | 64 x 64 Dante and analog mix matrix control for a wider range of applications. |
Specifications
| Dynamic Range (20 Hz to 20 kHZ, A-weighed, typical) | Analog-to-Analog : 100dB |
|---|---|
| THD+N Harmonic Distortion 1 kHz, +4 dBu out, mix output (MASTER) at +0 dB | <0.05% |
| S/N (22 Hz – 22 kHz, RMS, A-Filter) | 118dB |
| Common Mode Rejection Ratio 150Ω balanced source, at 1kHz | >60 dB |
| Number Of Input Channels | AUXx4、 Dantex64 |
| Maximum Input Level | Channel input AUX Input (Lotus): +25dBu |
| Power Requirements | ~110V-240V 50/60Hz 60W |
| Number Of Output Channels | Analog x4, Dante x 4 |
| Maximum Output Level | Line(+0)：+21dbu MIC(-20)：+1dbu |
| Dante Interface | 64 （input） X 8（output） |
| AD/DA Converter | 24bit, 48KHz |
| Internal Processing | 40-bit, floating point DSP |
| DSP Functions | Input, output equalization, limiter, FBK, matrix control, threshold control, high and low pass filter |
| FRQ Range | 20hz-20khz |

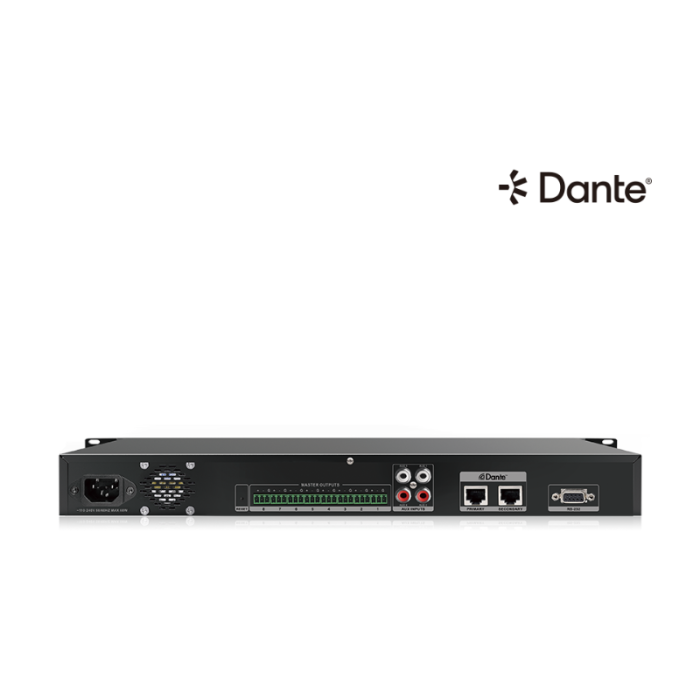

| Network Interface | 10/100/1000 Mbps Ethernet, Dante digital audio |
| Main Frame Size | EIA standard 1U |
| Dimensions | 410(W) x 43(H) x 206(D) |
| Weight | Approximately 2.7 Kg |
| Operating Temperature Range | 0 ～ 40℃ |
