QSC TouchMix-16 Digital Mixer
Key Features
- 20 Inputs
- 16 Mic Preamps
- Color Touchscreen
- Wireless Control Via iPad App
- DSP Processing Per Input Channel
- Assignable Pitch Correction
- Multi-Track Recording
- USB Wi-Fi Adapter Included
- Carrying Case Included
Description

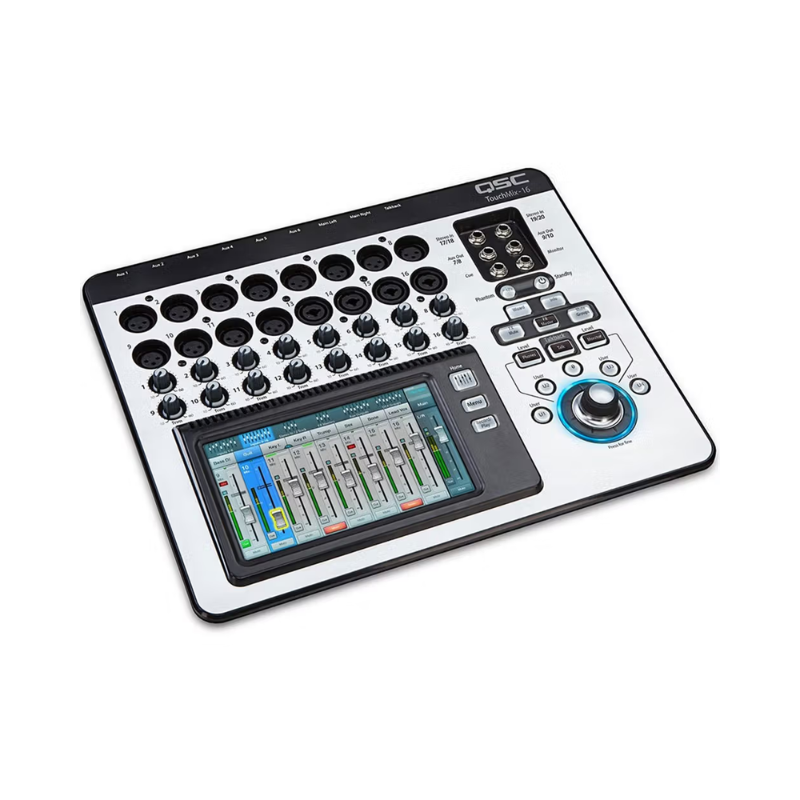

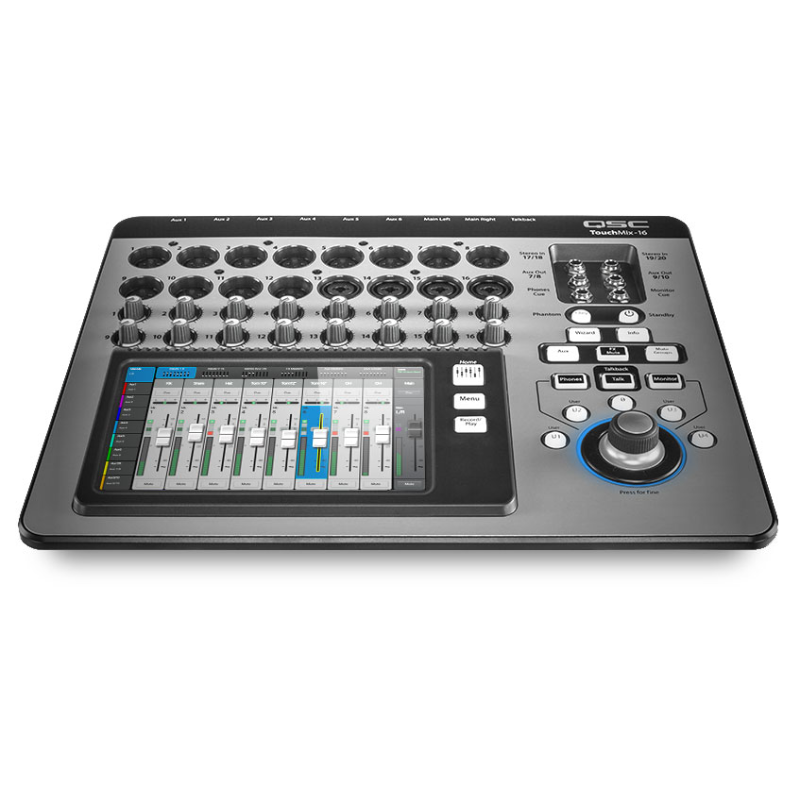

The TouchMix-16 Compact Digital Mixer with Touchscreen from QSC is a 20-input digital mixer that features 16 built-in mic preamplifiers and can be controlled by its integrated touchscreen or wirelessly via an iPad connected to the same wireless network. The mixer features a DSP-based 4-band parametric EQ with variable high- and low-pass filters, a gate, and compressor on each input channel. The TM-16’s DSP also provides reverb, echo, delay, and chorus effects in addition to assignable pitch correction.
The mixer is also capable of multi-track recording with sampling frequencies up to 48kHz to an optional external USB hard drive. A USB Wi-Fi adapter and carrying case are included.
Features
TouchMix® is quite simply the most powerful, compact mixer ever created. It offers the features, capabilities and sound quality of the world’s most esteemed large format consoles in a highly compact and portable package that’s small enough to be carry-on luggage. Perfect for musicians, bands, AV production professionals and small performance venues, the TouchMix-16 goes “Beyond Mixing” by offering Wizards, Presets and other beneficial tools that help both seasoned audio professionals and novices alike get great results quickly and easily.
Its 22 mixing channels (16 Mic/Line, 4 Line, Stereo USB) and 12 outputs offer ample signal management flexibility while advanced features such as class-A microphone preamps, Anti-Feedback and Room Tuning Wizards, real-time analyzer (RTA) and 20-channel direct-to-external-drive recording make it equally competent as both a professional live sound or recording tool.
The touch-and-turn interface of TouchMix allows for tactile control over fader and mixer parameters while also providing a hardware connection to the mixer. Mixer functions and displays are duplicated via iOS® or Android® devices over Wi-Fi, providing both portable, wireless connectivity as well as additional control of mixer functionality.
The TouchMix-16 comes complete with USB Wi-Fi adapter and carrying case.
QSC TouchMix-16 Features

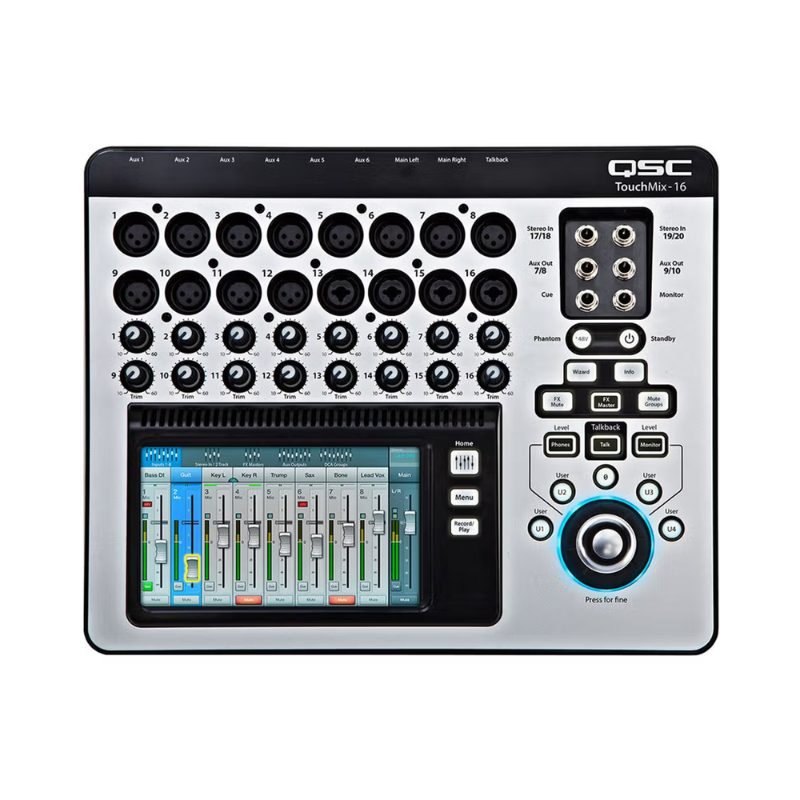

- 20 Full Function Inputs: 12 Mic, 4 Mic/Line (XLR/TRS Combo), 2 Stereo Line (TRS), Talkback (XLR), USB 2-track

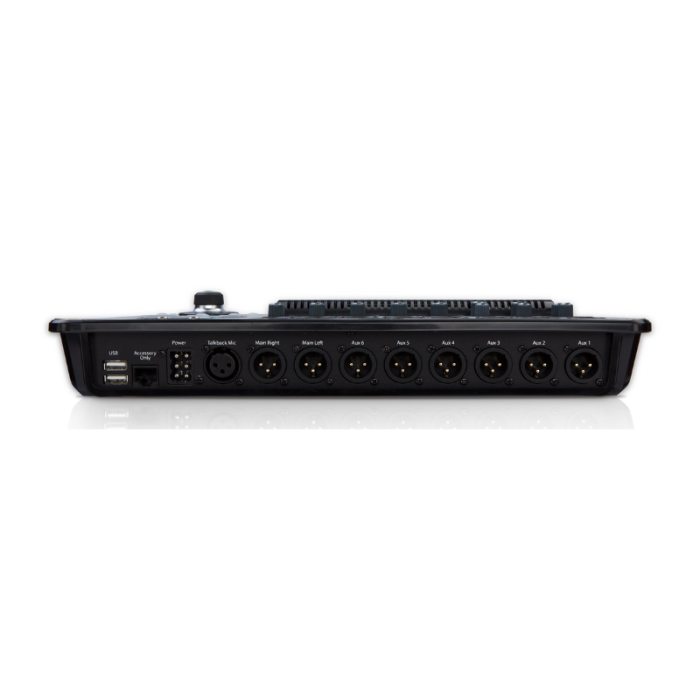

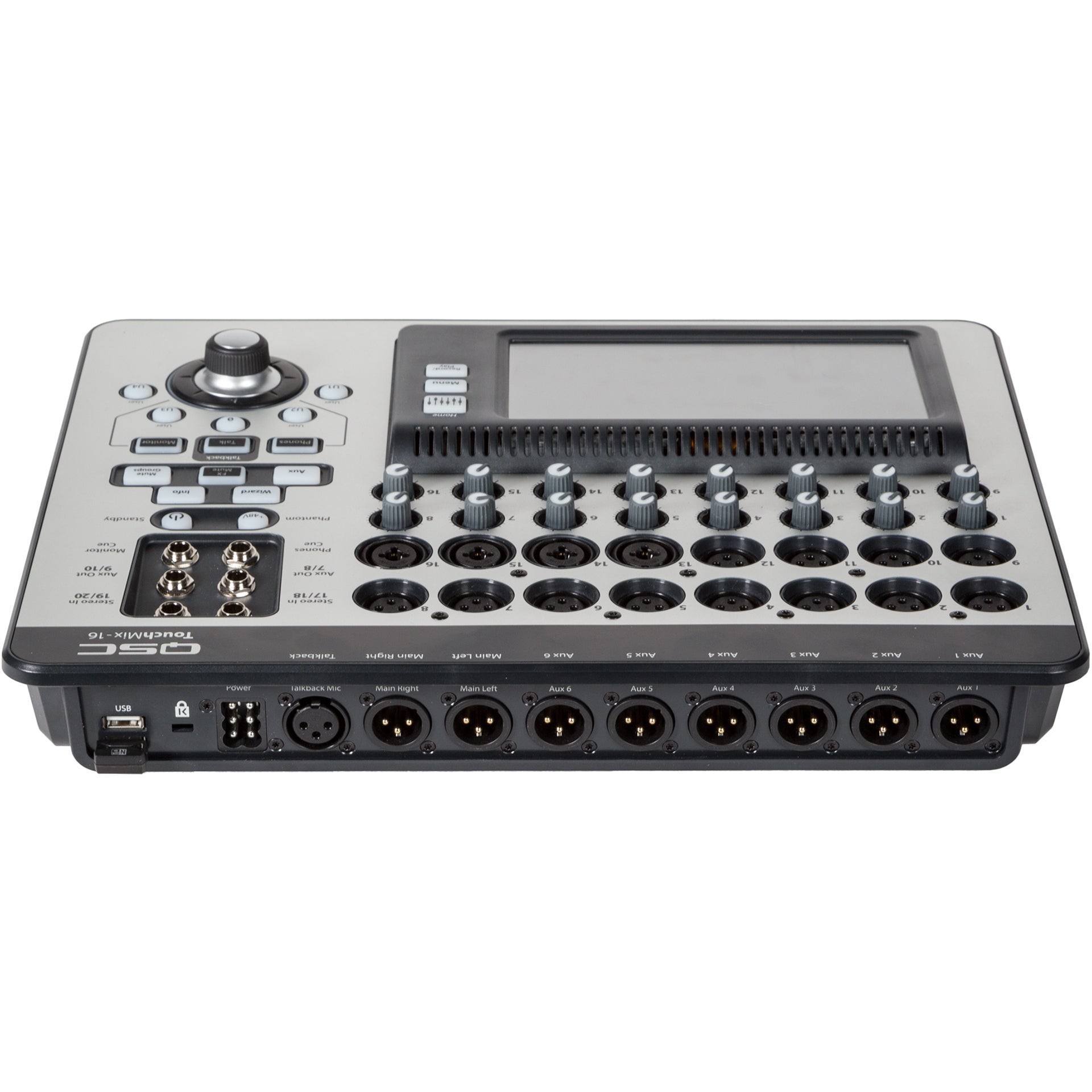

- Outputs: 6 Aux (XLR), 2 Stereo (TRS), Main R/L (XLR), Cue (TRS), Monitor (TRS)
- TRS Aux outs drive wired In Ear Monitors (IEM) directly
- 4-band full parametric EQ, variable high-pass and low-pass filters on all input channels
- Gate and compressor on all input channels
- 4 stereo DSP effects plus a pitch corrector
- 1/3 octave graphic equalization, limiters, delay and notch filters on Main and Aux outputs
- 8 DCA and 8 Mute groups
- Color, capacitive touchscreen graphical user interface combined with hardware controls for fast operation
- Wizards, info and preset libraries assist you with channel setup, effects selection, and more
- Direct to hard-drive recording and playback of multi-track wave files. Capable of recording all input channels plus a user-selected stereo output pair
- Remote control via mobile devices. Wi-Fi interface included
QSC TouchMix-16 Version 3.0 firmware delivers next-level functionality
- Updated graphics
- Automatically checks for firmware updates
- PEQ frequency graph expands to full screen when RTA is off
- Channel Safe (prevents designated channels from changing when a scene is recalled)
- “Omit levels” function on Preset page now also omits group assignments
- Tablet Follows Mixer — when in Follow Mixer mode, touching a fader on the mixer causes your tablet to display that channel’s screen
- Balance control for FX returns
- Play back stereo MP3 files from USB memory devices
- Direct access buttons for Aux mixes
- Output notch filters and Anti-Feedback Wizard
- 6-band parametric EQ on all outputs in addition to the available graphic EQ
- Additional speaker presets for QSC E series and K.2 series speakers
- Room Tuning Wizard
- Copy and Paste
- Input channel delay (up to 100ms)
- Tap Tempo on mixer and tablets
- USB drive format utility
- 8 user buttons on app
Specifications
Key Specs
| Max I/O Capacity | |
| Number of Analog Input Channels | |
| Number of Mic Preamps | |
| Number of Analog Output Channels | |
| Faders & Level Adjustment | |
| Built-In Effects | |
| Analog Inputs | |
| Analog Outputs | |
| Digital I/O | |
| USB I/O | |
| Wireless | |
| Rack Mountable |
Mixer
| Max I/O Capacity | |
| Number of Analog Input Channels | |
| Number of Mic Preamps | |
| Number of Analog Output Channels | |
| Mix Routing | |
| Groups | |
| Presets | |
| Display | |
| Display Resolution/Color | |
| Faders & Level Adjustment |
Signal Processing
| Gain/Trim Range | |
| Dynamic Processing | |
| EQ | |
| Graphic EQ | |
| Filters | |
| Solo/Mute | |
| Built-In Effects | |
| Real Time Analyzer | |
| Audio Delay |
Digital Audio
| Sample Rates | |
| DSP | |
| Converter Dynamic Range |
Performance
| Frequency Response | |
| Max Input Level | |
| Analog Dynamic Range | |
| Crosstalk | |
| EIN | |
| Noise Floor | |
| SNR | |
| THD | |
| Signal Generator |
Connectivity
| Analog Inputs | |
| Analog Outputs | |
| Phantom Power | |
| Digital I/O | |
| MIDI I/O | |
| USB I/O | |
| Expansion Ports | |
| Wireless | |
| External Display I/O |
Recording
| Max Multitrack Recording | |
| Media Support |
Power
| Input Power | |
| Power Consumption |
Physical
| Rack Mountable | |
| Dimensions | |
| Weight |
Packaging Info
| Package Weight | |
| Box Dimensions (LxWxH) |
