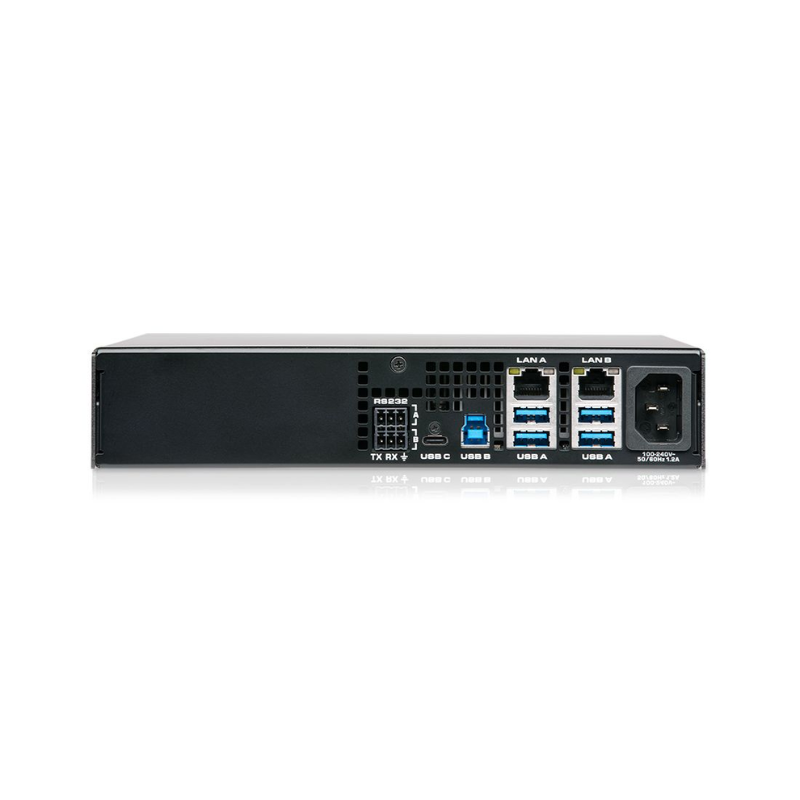

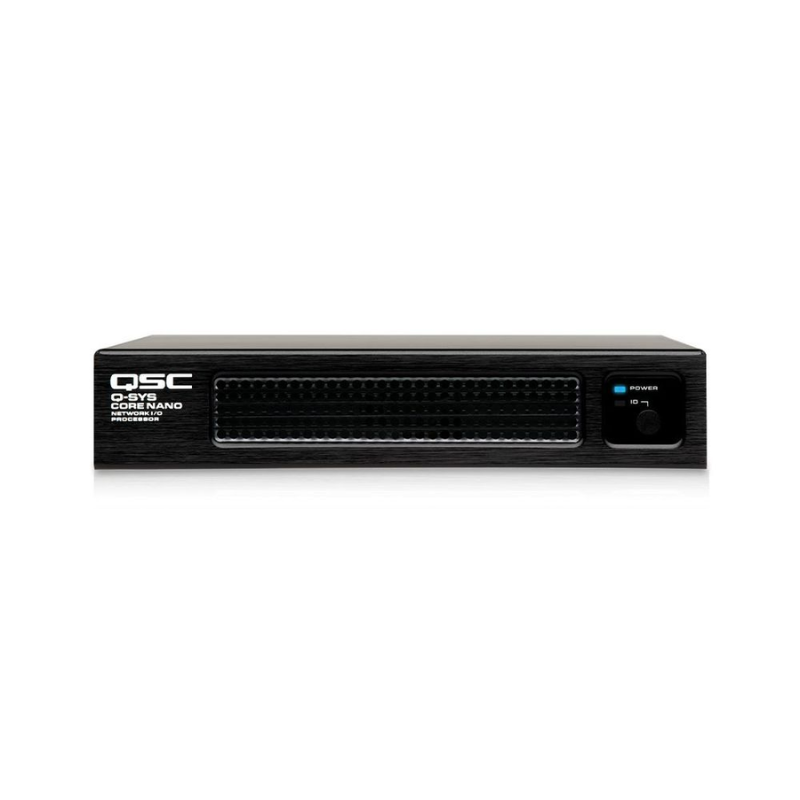

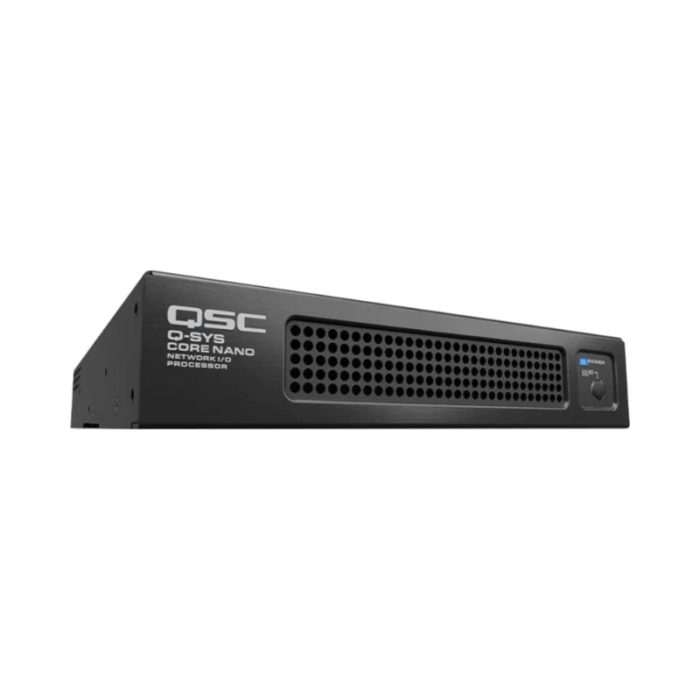

Q-SYS Core Nano Network I/O Processor
Key Features
- 64 x 64 networked audio channels (Q-LAN / AES67)
- 8x AEC processors up to 32 x 32 Dante audio channels (8 x 8 included)
- USB AV bridging (8 x 8 audio + Q-SYS camera support)
- Full-featured Q-SYS Control engine (with optional feature license)
- External USB audio device host
- Up to 2x VoIP instances
- 1U half-width, includes mounting hardware
Description
Introducing the Q-SYS Core Nano audio, video and control (AV&C) processor, which extends the applications of the Q-SYS Ecosystem into a wider range of smaller-scale installations across corporate, higher education, healthcare and beyond. Built on the same foundational technology as the rest of the Q-SYS processor portfolio, including the best-in-class Q-SYS Core 110f, Core Nano is designed for applications with lower network channel capacity and/or targeted processing requirements.
Core Nano offers purely network AV&C processing, and like all Q-SYS Core processors, the Core Nano delivers features and functionality at the software level, including acoustic echo cancellation (AEC), wide-area paging, video routing, and a full featured control engine without the need for dedicated control processors.
Features
Rightsize your processor. Choose the I/O
With the Q-SYS Core Nano processor, you have options! Use it to support an installation with network-only devices or add a few analog audio channels by pairing it with Attero Tech Series I/O devices. You also have the option to utilize our growing third-party plugin library or Q-SYS feature licenses to bring in/out other audio options into your Q-SYS Nano processor.
Meeting Room:
Higher Education:
Hospitality:
Rightsized. Uncompromised.
Rather than deploying an AV&C processor with unused analog I/O that occupies a full rack space, Core Nano offers a smaller solution with several mounting options. However, its smaller form factor does not compromise on functionality; instead Core Nano delivers a full featured control engine for third-party device control, full paging and BGM capabilities, automation, monitoring and beyond.
Optimized for the Meeting Space
The Core Nano provides the AV infrastructure to enable full room web conference integration, particularly for larger, more challenging spaces. It features USB integration with all major web conferencing applications, eight channels of acoustic echo cancellation (AEC), two VoIP softphones, Software-based Dante to enable modern microphones, and a full-featured control engine for third-party device integration.
Reduce Complexity and improve scalability with the Q-SYS Platform
The Q-SYS Core Nano joins a growing lineup of AV&C processors built on a flexible software foundation. Like all Q-SYS Core processors, the Core Nano lets integrators take full advantage of the same Q-SYS software suite to design and configure systems. End users can take full advantage of all native Q-SYS peripherals and the system’s ability to scale your system without having to rip-and-replace your configuration file, as well as receive the latest platform functionality upgrades and security updates from Q-SYS through a simple firmware update.
Expand Functionality at the Software Level
Q-SYS Scaling Licenses allow you to leverage the unique software-based nature of Q-SYS to scale targeted feature sets to the needs of specific applications and use cases.
- The Q-SYS Collaboration Bundle scaling license enables your Core Nano to scale into larger, high impact spaces with increased processing capabilities, additional AEC channels and expanded NM Series microphone support
- The Q-SYS Commercial AV Bundle scaling license enables your Core Nano to serve areas that previously required higher tier Core processors by increasing processing power, total network channel capacity and peripheral count.
Specifications
Channel Capacity |
|||
| Q-LAN / AES67 channels | 64 x 64 | ||
| Dante channels | 8 x 8 (included); licensable up to 32 x 32 | ||
| AEC processors | 8 | ||
| VoIP instances | 2 | ||
| Audio recording / playback | 4 ch recording / 16 ch playback (expandable to 32 ch with optional license) | ||
| Q-SYS NM-T1 capacity | 3 (base capacity); 6 (with Collaboration Bundle scaling license) | ||
| Network peripherals | up to 32 | ||
Control |
|||
| RS-232 | 2 ports | ||
USB Inputs & Outputs |
|||
| Channel count | 8 x 8 | ||
| Bit depth | 16 bit | ||
| Sample rate | 48 kHz | ||
| USB audio device hosting | Support for standard USB headset, speakerphone | ||
Environmental |
|||
| Power consumption | 40 W typical | ||
Physical |
|||
| Device dimensions (H x W x D) | 1.72 x 8.66 x 11.28 in (43.6 x 220 x 286.6 mm) | ||
| Weight | 4.0 lbs (1.8 kg) | ||
