Prolink PEB 1.2KM-24 Portacell Series – 1.2KVA to 3KVA
Key Features
- Super-fast recharge
- Scalable output power
- Expandable battery capacity
- Dual inputs – Grid and solar
- Built-in battery management system (BMS)
Description

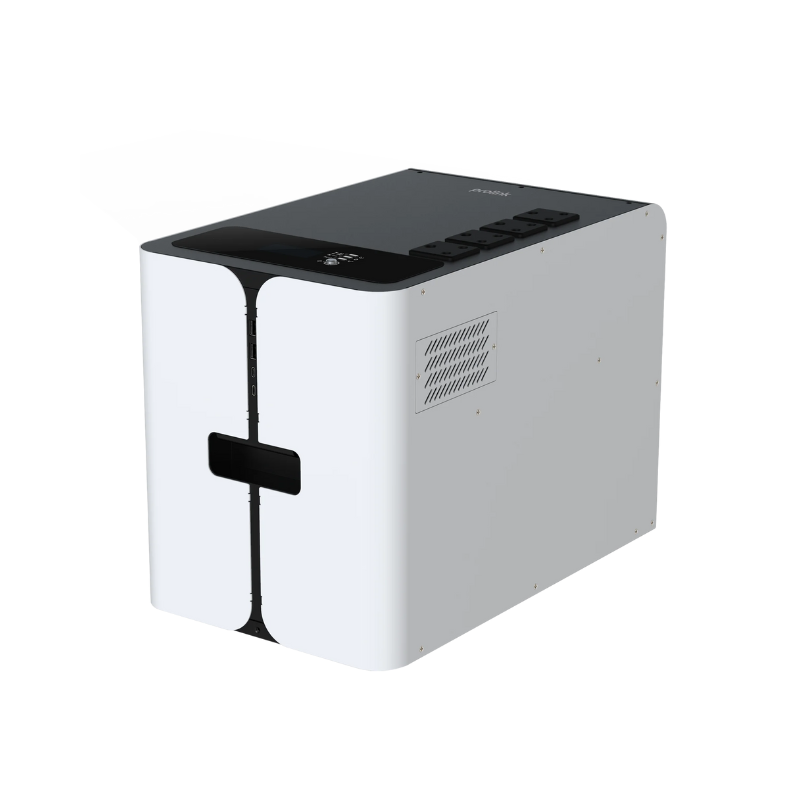

The Portacell Series is a portable energy bank with Lithium-ion battery.
• Mobile Power Station, high capacity in compact size on the wheel
• Pure sinewave AC output with Lithium-ion battery bank
• Power 99% of your home appliances
• Scalable output power from 3KW to 6KW
• Expandable battery capacity from 2.5KWh to 7.5KWh (3KW model)
• 40A (1000w), 100A(2500w) built-in AC and Solar charger
• Super-fast recharge, 0-90% in one hour
• 5 AC outlets, 4 DC outputs, terminal block for PEB 3KM-24
• Dual inputs, grid and solar
• Built-in battery management system (BMS)
• Wifi + APP, remote control & monitor daily power consumption
Features
 |
Super fast recharge |
|---|---|
 |
Pure sinewave AC output |
Dual-Power Inputs
Solar Grid or generator
Super-Fast Recharge
Fully charged in one hour all thanks to the built-in 100A charger.
Output Power Expansion
Support parallel system at maximum 18KW inverter & 15KWh capacity for compatibility with more types of load.
Expandable Capacity
Connect to Prolink LIO 2410 expandable battery module for up to 7.5KWh capacity.
Built-In Wi-Fi for Mobile Monitoring
Enjoy the convenience of monitoring the energy bank’s data from mobile app anytime and anywhere.
High Mobility
Simply unplug and move it anywhere you need it most.
Suitable for Household Usage
Power up to 9 most essential appliances at the same time for an hour during long blackout
Specifications
| Capacity |
|
|---|---|
| Input nominal voltage |
|
| Input voltage range |
Portacell 1.2KM-24 and PEB 2.5KM-48: 170 – 280VAC (For computers) 90 – 280VAC (For home appliances)
Portacell 3KM-24: 170-280VAC (For Computers) and 90-280VAC (For Home Appliances) |
| Input frequency range | 50/60Hz (Auto sensing) |
| Output AC voltage regulation (Batt. mode) |
Portacell 1.2KM-24 and PEB 2.5KM-48: 230VAC ± 5%
Portacell 3KM-24: 220/ 230/ 240VAC ± 5% |
| Output transfer time |
10ms (For personal computers) 20ms (For home appliances) |
| Solar charger type | MPPT |
| Battery type |
|
| Battery voltage |
|
| Battery full charge voltage (FC) |
|
| Battery full discharge voltage (FD) |
|
| Maximum charge current for charger |
|
| Max. PV array open circuit voltage for charger |
|
| MPPT range @ operating voltage for solar charger |
|
| Max. solar charge current |
|
| Dimensions | 420 x 350 x 330 |
| Weight | 15kg |
| Compliance Safety | IEC/EN 62109-1/-2, EN 61000-6-4, EN-61000-6-2, IEC 62619, EN 61000-6-3, EN 61000-6-1, UN38.3 |
