Speaker Zone Output
FM Radio Function
USB Player
Extended Compatibility

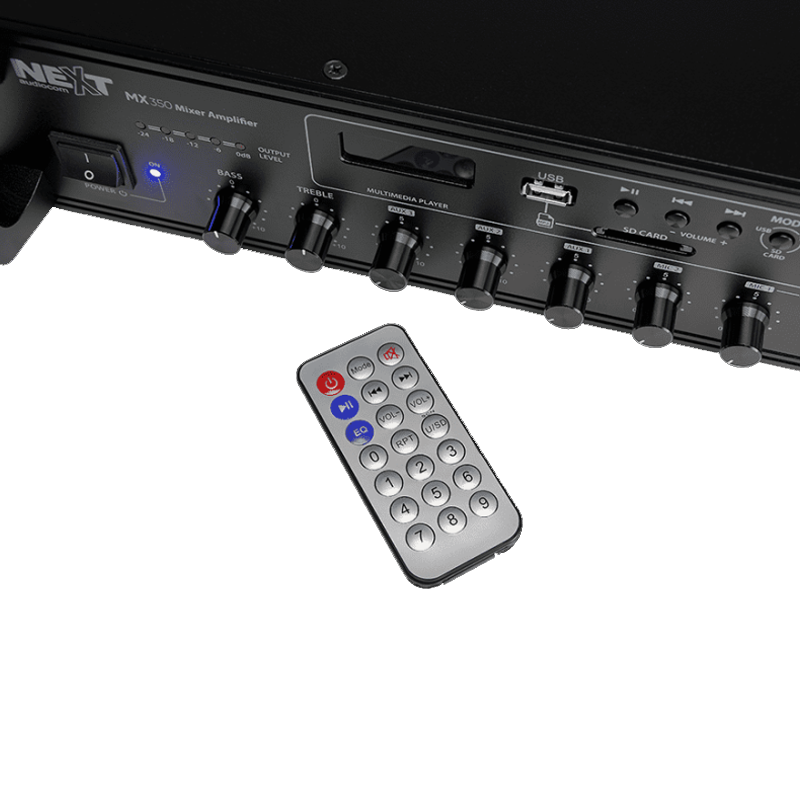

Remote Control
Microphone InputDescription

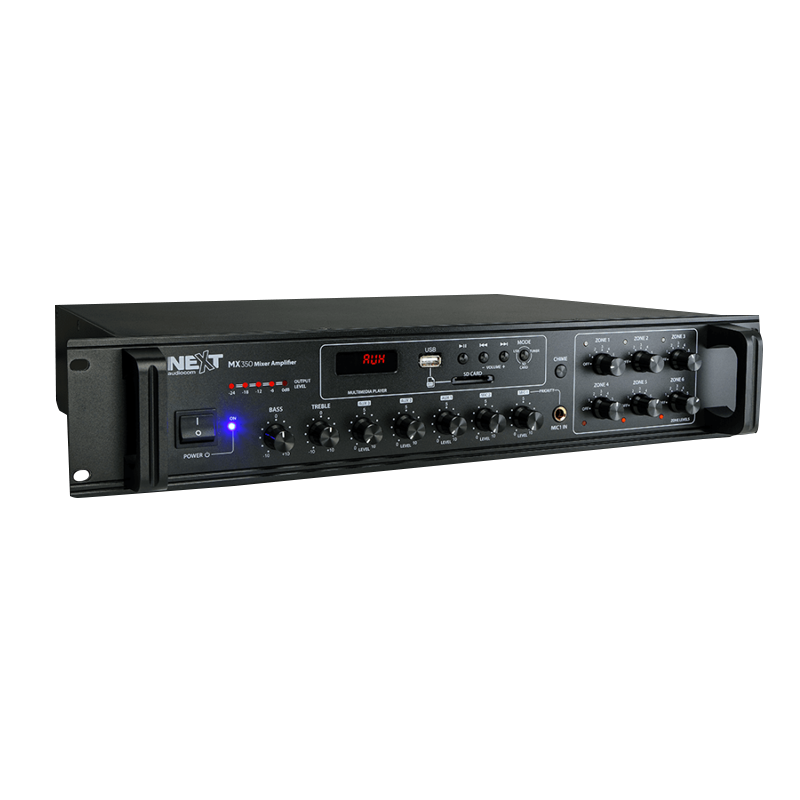

The MX350 is a 6-Zone Mixer Amplifier, 350W [100V|8Ω] for your medium to big size installations, You can operate your MX350 @ 4-16Ω or 70V/100V and install it according your needs. With MX350, you can have multiple audio signal solutions USB, Microphone, SD card and radio. This amplifier incorporates a multimedia player that allows you to control and reproduce the USB and SD card.
Features
Operation AT 70V, 100V and 4-16Ω
You can operate your MX350 @ 4-16Ω or 70/100v and install it according your needs.
Multimedia Player
MX350 incorporates a multimedia player that allows you to control and reproduce the usb and SD Card.

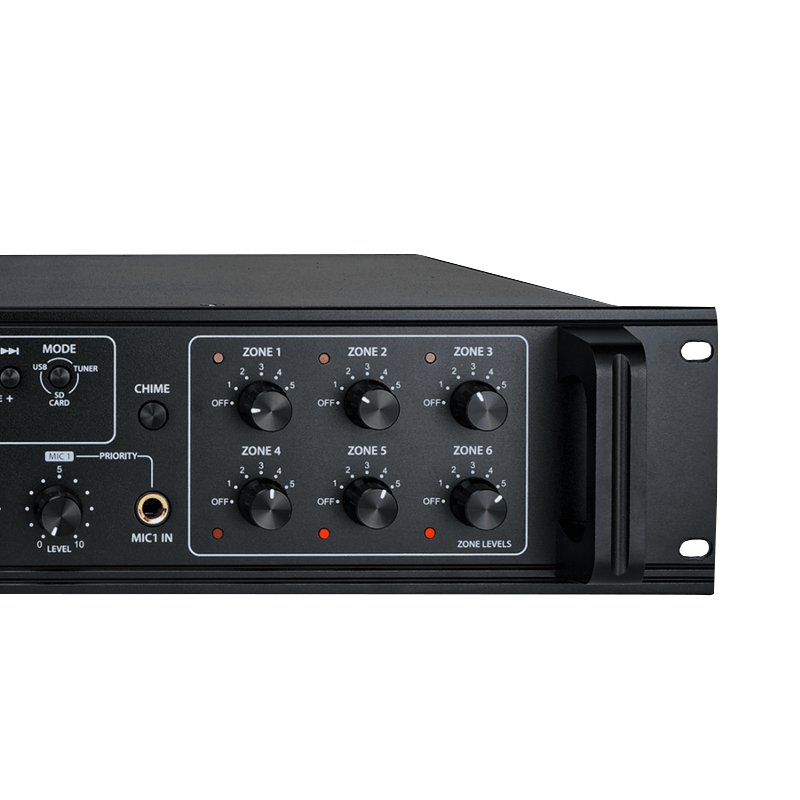

6 Indepedently Controlled Areas
With the MX350 you can control up to 6 zones completely independent with up to 350W of total power.
Recommended Applications
Conference Rooms, Retail Stores, Hotels, Bars and Restaurants, Trade Show Exhibits, Auditoriums, Museums, Theatres, Fitness and Leisure centers, Houses of worship.
Specifications
| Product Type | Multi-Zone Mixer Amplifer |
|---|---|
| Frequency Response (-6dB) | 80Hz – 16kHz |
| Amplifier Technology | AB Class Amplifier |
| Amplifier Power | 350W |
| Speaker Output | 100V | 4Ω – 16Ω |
| Zones Output | 6 Zones |
| THD+N | <1% |
| SNR (Signal to Noise Ratio) | Mic: >71dB | Line-in: >85dB |
| Input Sensitivity | Mic: 3mV (±0.5mV) | Line-in : 300mV(±50mV) |
| Mixer | 7 Channels |
| Audio Signal Inputs | Microphone | CD Player | USB | SD Card | FM Radio | BT |
| Input Connectors | 3 x Stereo RCA | 4 x MIC (TS) | USB | SD Card Slot | FM Antenna (75Ω) |
| Audio Signal Outputs | Line Audio |
| Output Connectors | 1 x Stereo RCA |

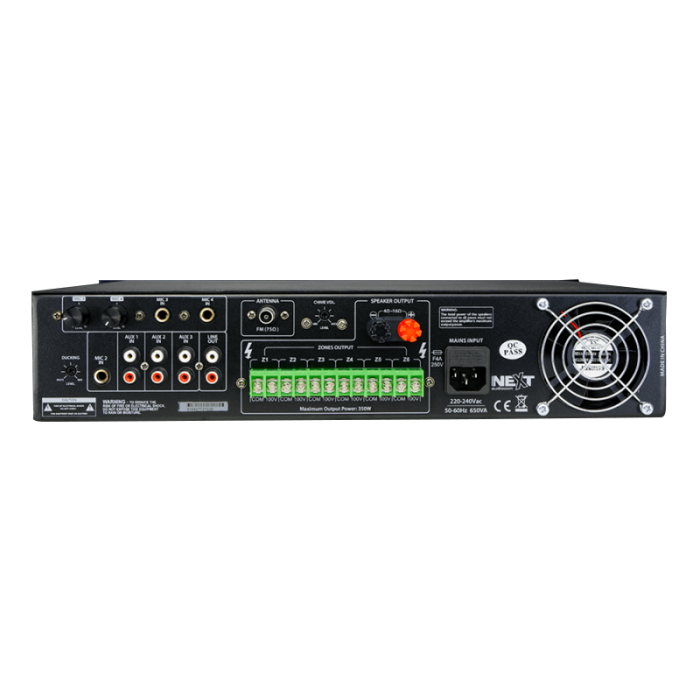

| Speakers Output Connectors | Low Impedance: Binding Posts | 100V: Screw Connector |
| Protections | DC Voltage | Overload | Short-Circuit |
| Cooling Type | Speed Controlled Fan |
| Power Input | AC 220V – 240V / 50Hz – 60Hz |
| Power Consumption | 650W (3A) |
| Special Features | Chime | Ducking | Priority Microphone | Bass Adjust.: ±10dB (100Hz) | Treble Adjust.: ±10dB (10kHz) |
| Fittings | 2U 19″ Rack |
| Handles | Two on Front |
| Construction | Aluminum / Steel |
| IP Rating | Indoor Use |
| Dimensions (WxHxD) | 483 x 88 x 338mm (19″ x 3.5″ x 13.3″) |
| Net Weight | 16kg (35.3lb) |
| Shipping Weight | 17kg (37.5lb) |
