Next Audio SB3 Convertible Soundbar With BT
Key Features
2 Operation Modes
Use your speaker either horizontally or vertically, it is up to you!
Remote Control
Be the master of your system with the remote control. Wirelessly, have the power of control on your hands.
Subwoofer Output
Extend the bass response of your sound system by connecting an external active subwoofer via the subwoofer output.

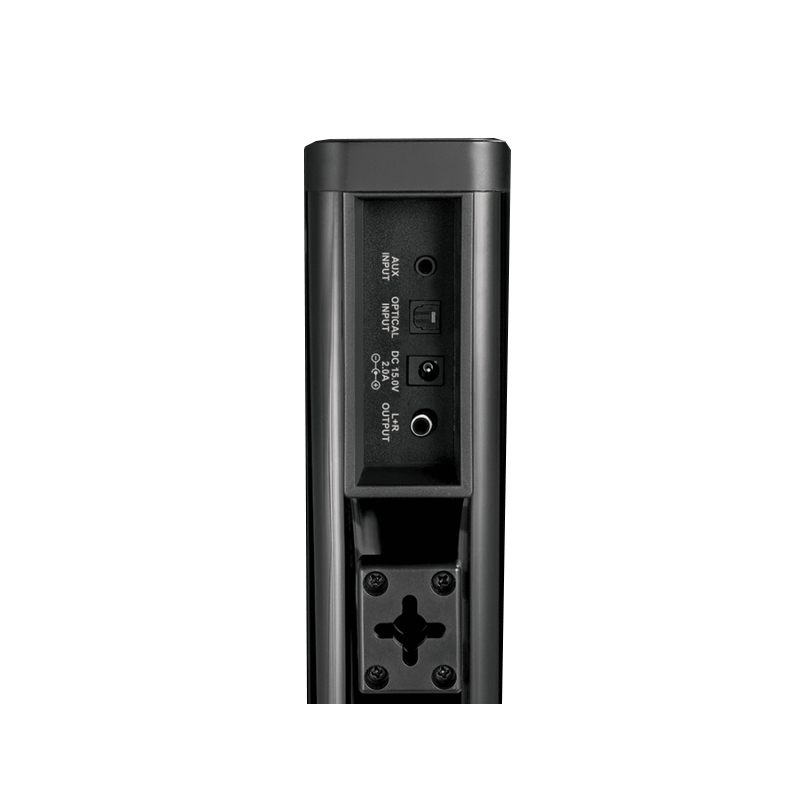

AUX Input
You can use the AUX input to connect your Smartphone, Tablet, TV, CD Player or Laptop using a 3.5mm audio jack cable.
USB Player
With the incorporated USB Player, it is possible to insert your USB Flash Drive and play your audio files directly on the device.
Optical Input
Stream digital audio from your TV, TV Box, CD Player or Game Console to the speaker using an optical cable.
Description
The SB3 is a convertible Soundbar with BT. This 2-piece Soundbar can be used as a single bar horizontally or as two towers vertically. You can position them vertically on the floor or on the furniture or installed on the wall. Horizontally you can place it on the table, furniture or even hang them on the wall. Quickly connect to your TV, or other devices via optical or AUX inputs, or easily stream your music via BT. For an impactful and dynamic 2.1 experience, the S10 subwoofer can be easily paired.
Features
Versatile Use
You can use your SB3 horizontally or divide it and use it in 2 vertical towers to fit your installation.
Subwoofer Output
Take the maximum from your SB3 extending the bass response of your sound system by connecting an external active subwoofer on the subwoofer output.
Remote Control
With the remote control, it is possible to control your SB3 remotely and wirelessly. Is is also possible to select one from 10 available presets.
Horizontal Use |
|
|---|---|

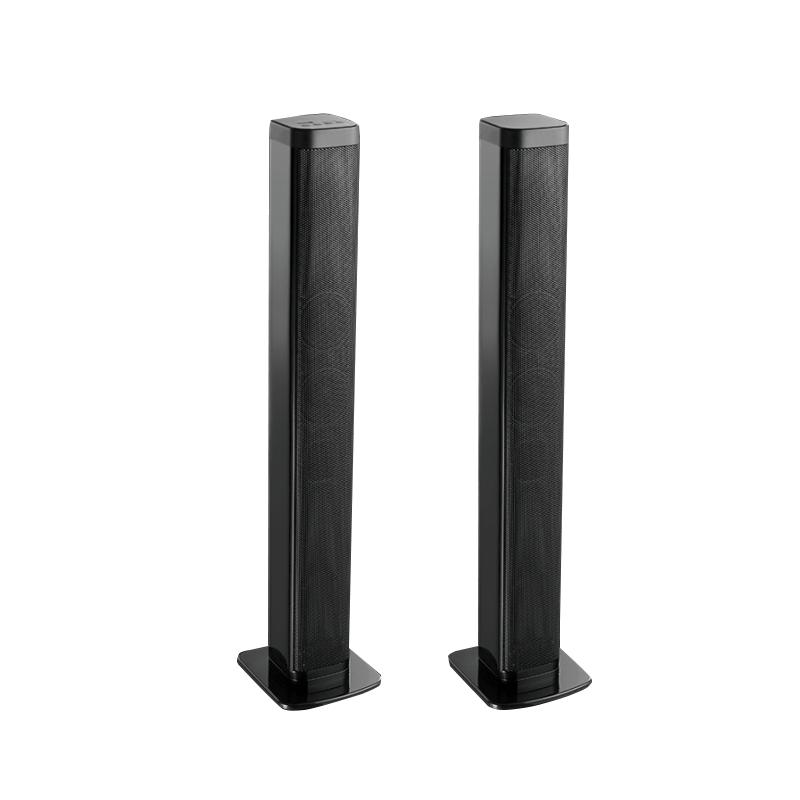

Vertical Use |
|
WIRING DIAGRAM
Specifications
| Product Type | Convertible Soundbar with BT |
|---|---|
| Frequency Response (-6dB) | 100Hz – 18kHz |
| RMS Power | 15W + 15W |
| Full-Range Driver | 4 x 2″ Full-Range Loudspeaker |
| Amplifier Technology | Class D Amplifier with DSP |
| DSP Presets | Rock, Pop, Jazz, Live, Club, Dance, Hall, Soft, Flat, Classical |
| Wireless Connection System | BT v5.0 |
| Wireless Range | >10m (32.8ft) |
| Audio Signal Inputs | Stereo BT | AUX | Optical | USB | Micro SD Card |
| Input Connectors | 3.5mm Stereo Jack | Optical Cable | USB | Micro SD Slot |
|
Audio Signal Outputs
|
Subwoofer or Other System Output (Unfiltered, Full-Range) |
| Output Connectors | 1 x RCA |
| Power Input | Power Supply: AC 100V – 240V / 50Hz-60Hz | DC 15V – 2A |
| Power Consumption | 30W |
| Special Features | Soundbar Convertible into Stereo Sound System (2 Vertical Systems) |
| Fittings | Plastic Feet | Multi-Directional Hanging Holes |
| IP Rating | Indoor Use |
| Dimensions (WxHxD) | 980 x 55 x 60mm (38.6″ x 2.2″ x 2.4″) [Soundbar] | 55 x 490 x 60mm (2.2″ x 19.3″ x 2.4″) [Vertical System] |
| Fixation | Picture Frame Hanging Type |
| Net Weight | 1.6kg (3.5lb) |
| Shipping Weight | 2.3kg (5lb) |
