Low Impedance Input
Easy Install
Crossover
HF Driver Protection
Ver./Hor. Installation
Hanging PointsDescription

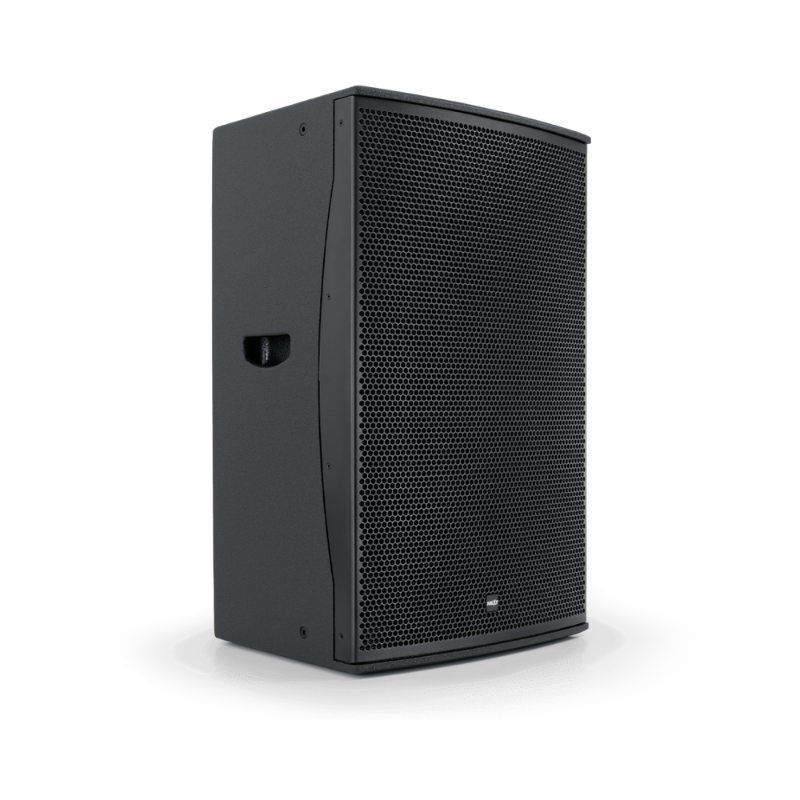

The Pro15 is a passive 15” speakers engineered specifically for installation and portable solutions with a modern and trendy design to deliver high output and dynamics, extreme linearity and fidelity at a very competitive price, making them an affordable solution for the professional market. This speaker can be an ideal solution for hotels, restaurants, bars, lounges, conference rooms, Djs and musicians among many others. This versatile speaker works equally well as floor monitor, on tripod stands or as a flying system with a wide range of rigging points. The cabinets are constructed using premium-quality 15mm plywood with polyurethane coating. Front and speakers’ protection is assured by an acoustically transparent a powdercoated steel grill with acoustical foam.
Features
Connections

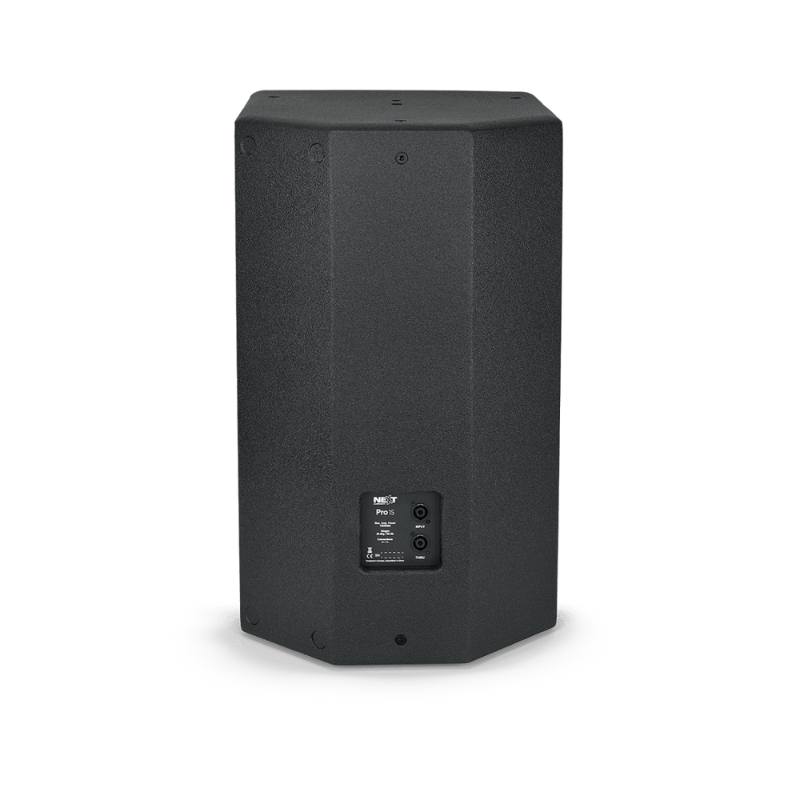

The Pro15 speakers are equipped with two speaker connectors located on the back plate providing reliable connections with easy link-through to cabinets
Easy Install

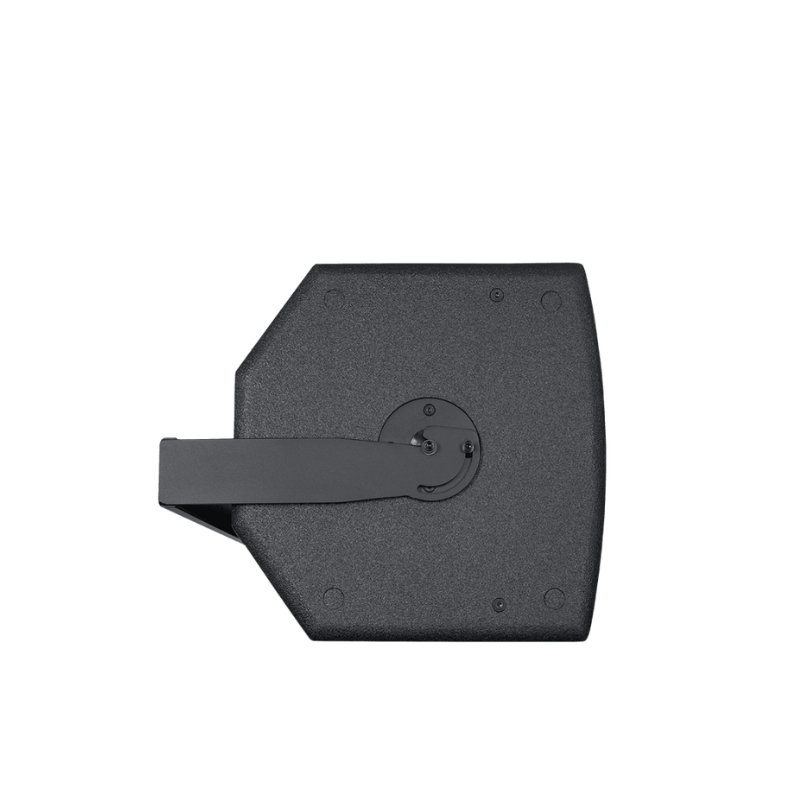

The optional U-bracket allows mounting the Pro15 cabinet both horizontally and vertically. The U-Bracket has a total angle adjustment span of 115º. Depending on the adjustment bolt used, the final speaker’s angle may vary (100º to -15º, 10º to -105º or -80º to -195º).
Focus On Details
Thanks to the focus on details, the Pro15 is one of the best available solutions on its segment. The premium-quality components provide a balanced sound with an excellent low frequency extension and a refined look.
Versatile Use
Specifications
| Product Type | Passive Full-Range Speaker/Monitor |
|---|---|
| Frequency Response (-6dB) | 48Hz – 20kHz |
| Low Frequency Extension (-10dB) | 40Hz |
| Nominal Coverage (-6dB) | 80º H x 50º V (User Rotatable) |
| Program Power | 700W |
| Peak Power | 1400W |
| Nominal Impedance | 8Ω |
| Sensitivity (1W, 1m) | 98dB (Full-Space) |
| Maximum SPL Pgm/Peak (calculated) | 126.5dB / 129.5dB (Full-Space) |
| Low Frequency Driver | 15″ Woofer | 3″ Voice Coil |
| High Frequency Driver | 1″ Titanium Driver | 1.7″ Voice Coil |
| Recommended High-Pass Filter | 42Hz, 18dB/oct Butterworth |
| Input Connectors | 2 x NL4 parallel wired |

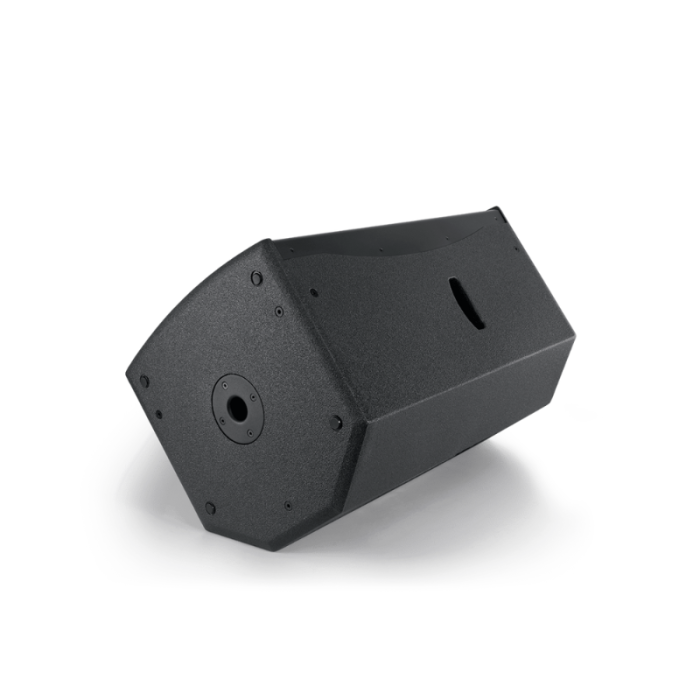

| Fittings | 12 x M8 Threaded Inserts | 1 x 35mm Pole Mount Socket |

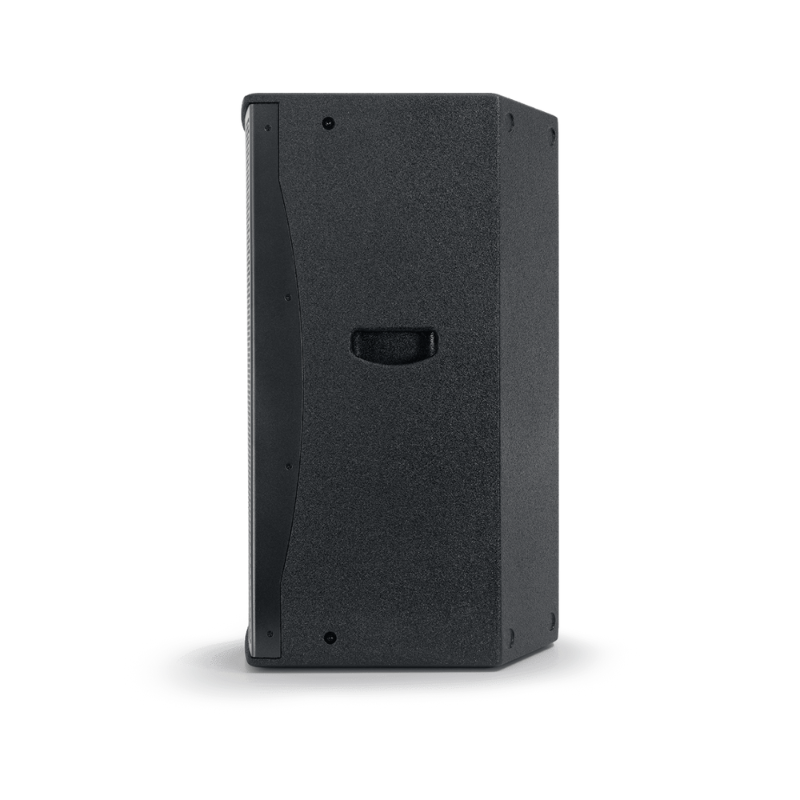

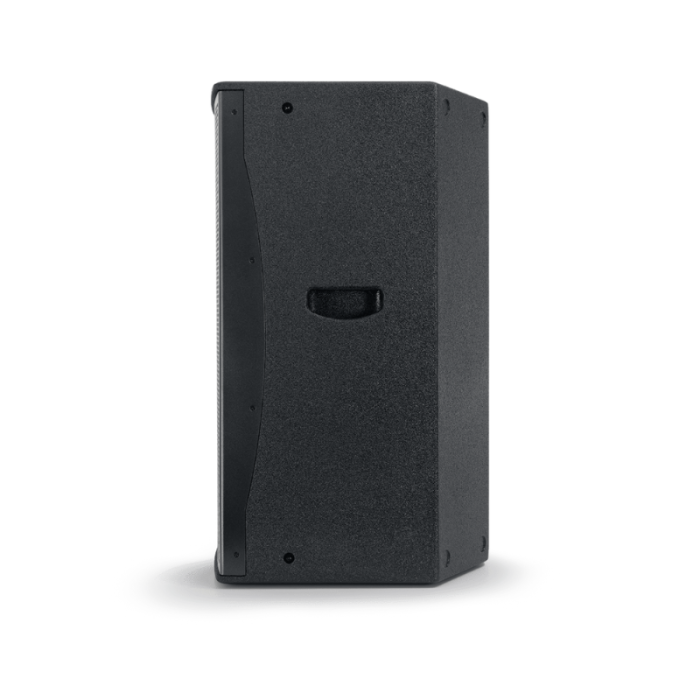

| Handles | Two on the sides (one on each side) |
| Grille | Black Perforated Steel |
| Construction | 15mm multi-laminate birch ply |
| Finish | Poliurea Coating |
| Dimensions (WxHxD) | 420 x 718 x 410mm (16.5 x 28.3 x 16.1 in) |
| Net Weight | 26.5kg (58.4lb) |
| Shipping Weight | 30kg (66.1lb) |
| Accessories | U-Bracket (not included) |
