Next Audio Pro12 12″ Full-Range Passive Speaker
Key Features
Low Impedance Input
The low impedance input allows you to use your speaker in 8Ω configuration for your small to medium installations.
Easy Install
The installation is made easy with no high technical skills or very special tools needed to install your device.
Crossover
The internal crossover was specifically designed to improve the sonic response of the speaker, maintaining the frequency and phase response the linearest possible, as well as conceding protection to the drivers.
HF Driver Protection
The HF Driver Protection gives the speaker a higher protection on the High Frequency Driver against unexpected audio peaks during music reproduction
Ver./Hor. Installation
You can install your speaker on either horizontally or vertically, depending on your installation needs.
Hanging Points
There are several dedicated hanging points to suspend the speaker in a different variety of ways using eye bolts for example.
Description
The Pro12 is a passive 12” speakers engineered specifically for installation and portable solutions with a modern and trendy design to deliver high output and dynamics, extreme linearity and fidelity at a very competitive price, making them an affordable solution for the professional market. This speaker can be an ideal solution for hotels, restaurants, bars, lounges, conference rooms, Djs and musicians among many others. This versatile speaker works equally well as floor monitor, on tripod stands or as a flying system with a wide range of rigging points. The cabinets are constructed using premium-quality 15mm plywood with polyurethane coating. Front and speakers’ protection is assured by an acoustically transparent a powdercoated steel grill with acoustical foam.
Features
Connections

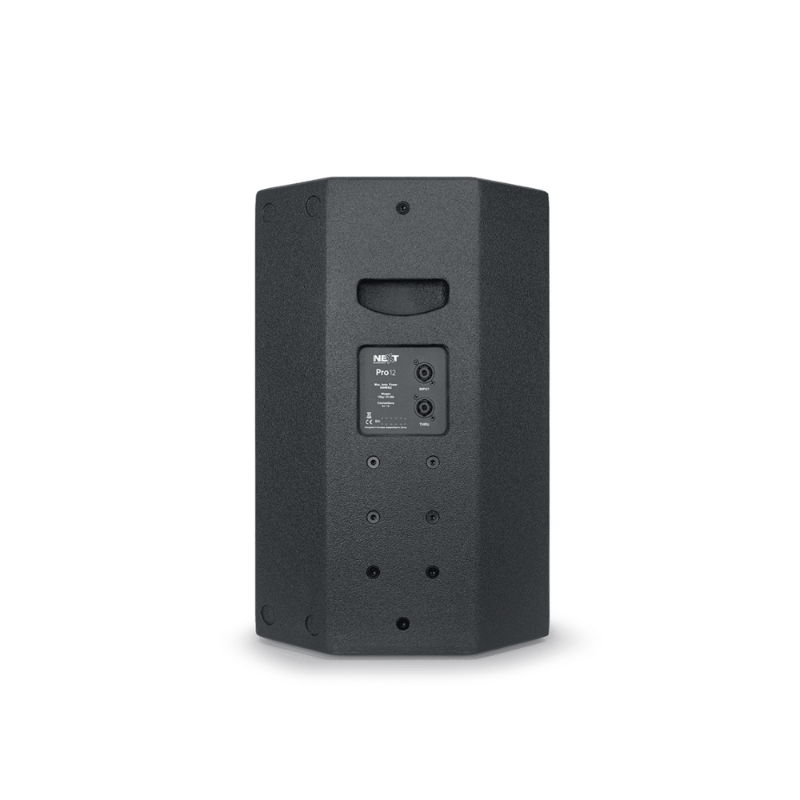

The Pro12 speakers are equipped with two speaker connectors located on the back plate providing reliable connections with easy link-through to cabinets
Easy Install

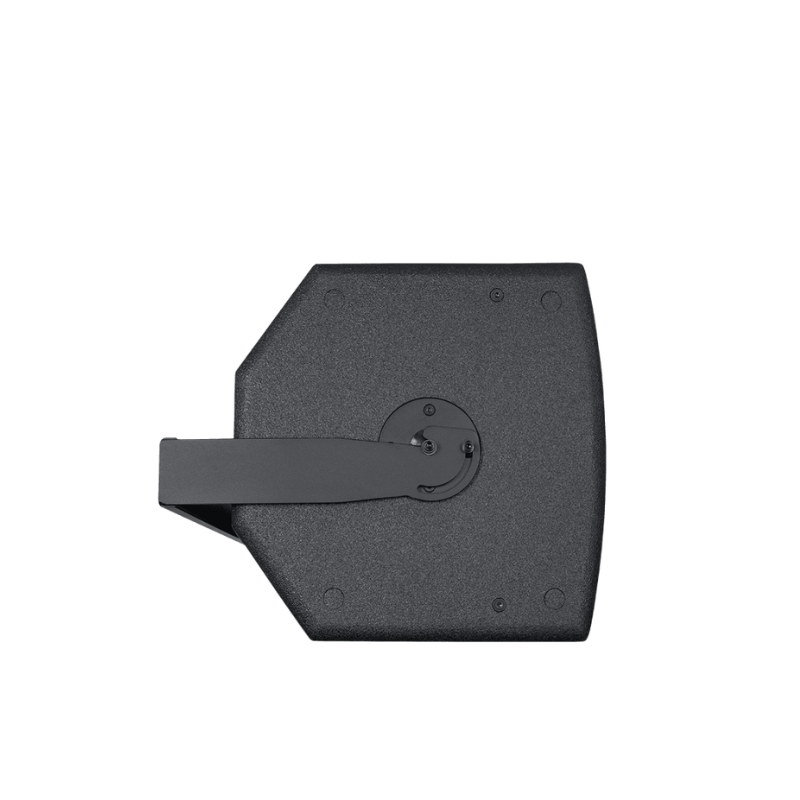

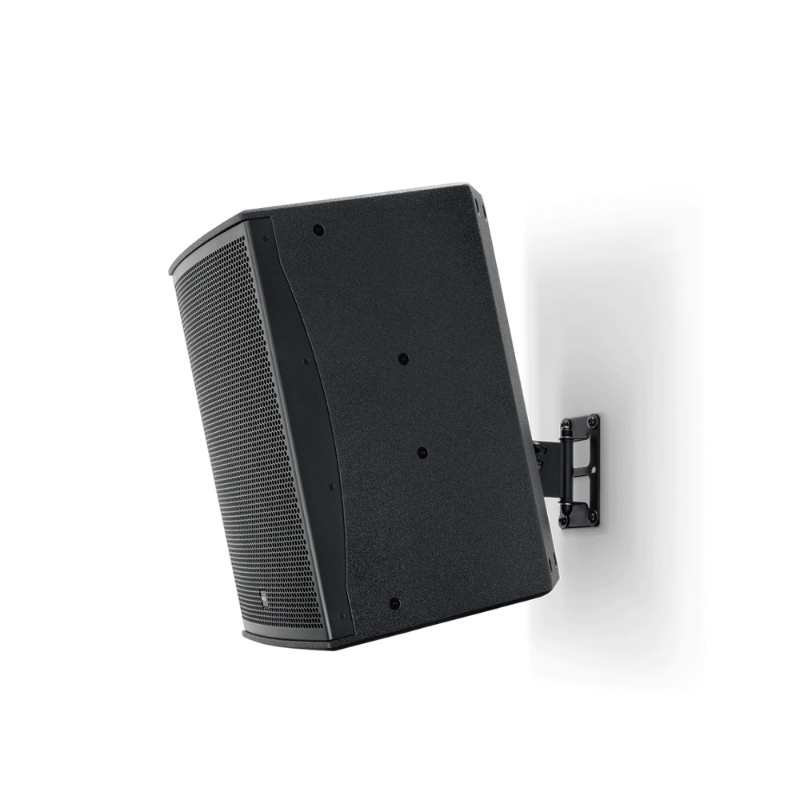

The optional U-bracket allows mounting the Pro12 cabinet both horizontally and vertically. The U-Bracket has a total angle adjustment span of 115º. Depending on the adjustment bolt used, the final speaker’s angle may vary (100º to -15º, 10º to -105º or -80º to -195º). Also, a two-axis wall bracket can be used on the Pro12 passive speaker. The adjustment angle span will vary according to the selected pan and tilt angles (max. 30º).
Focus On Details
Thanks to the focus on details, the Pro12 is one of the best available solutions on its segment. The premium-quality components provide a balanced sound with an excellent low frequency extension and a refined look.
Versatile Use
Specifications
| Product Type | Passive Full-Range Speaker/Monitor |
|---|---|
| Frequency Response (-6dB) | 52Hz – 20kHz |
| Low Frequency Extension (-10dB) | 43Hz |
| Nominal Coverage (-6dB) | 80º H x 50º V (User Rotatable) |
| Program Power | 500W |
| Peak Power | 1000W |
| Nominal Impedance | 8Ω |
| Sensitivity (1W, 1m) | 97dB (Full-Space) |
| Maximum SPL Pgm/Peak (calculated) | 124dB / 127dB (Full-Space) |
| Low Frequency Driver | 12″ Woofer | 2.5″ Voice Coil |
| High Frequency Driver | 1″ Titanium Driver | 1.7″ Voice Coil |
| Recommended High-Pass Filter | 46Hz, 18dB/oct Butterworth |
| Input Connectors | 2 x NL4 parallel wired |
| Fittings | 12 x M8 Threaded Inserts | 1 x 35mm Pole Mount Socket |
| Handles | One on the Back |
| Grille | Black Perforated Steel |
| Construction | 15mm multi-laminate birch ply |
| Finish | Poliurea Coating |
| Dimensions (WxHxD) | 356 x 578 x 398mm (14 x 20.8 x 15.7 in) |
| Net Weight | 19kg (41.9lb) |
| Shipping Weight | 22kg (48.5lb) |
| Accessories | Wall Bracket | U-Bracket (not included) |
