Next Audio M1 Digital Stereo Mixer
Key Features
Extended Compatibility
Wireless/wired compatibility with smartphone, tablet, laptop, desktop computer, TV, game console and many other devices.
Microphone input
The MIC input allows you to connect a microphone directly to the device.
Effects
This device has sound effects that will enhance your performances by helping sound like a professional
Streaming audio
Share with real-time signal all your creations or live performances
USB player
Thanks to the built-in USB player, it is possible to play audio files directly on the device.
USB powered
The USB power supply enables power supply via a power bank. This way you can create your own portable audio system.
Description

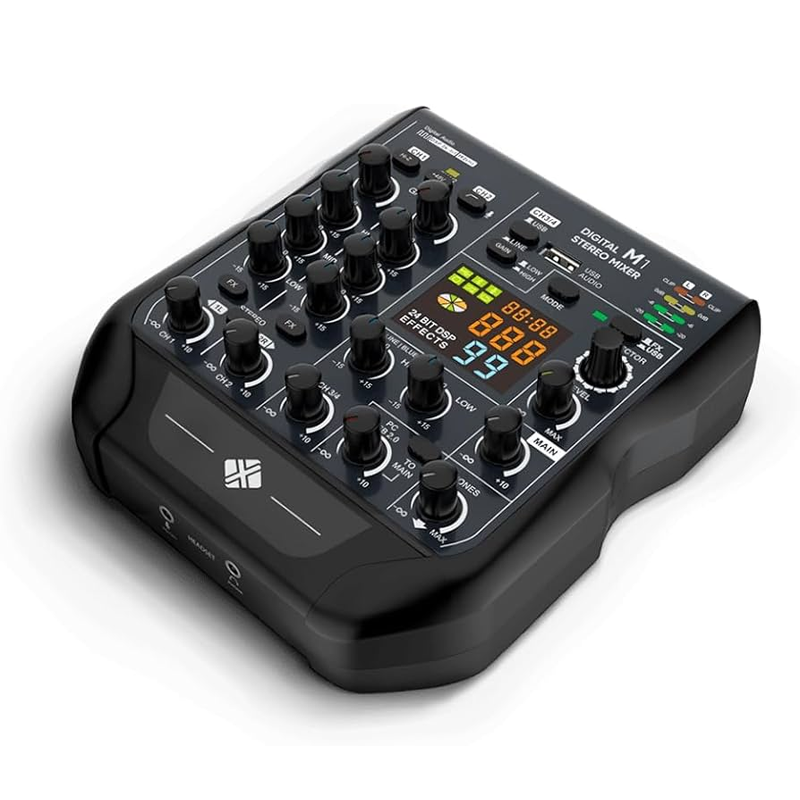

The M1 is an ultra compact and lightweight 4-channel digital stereo mixer with BT to use as a “traditional mixer” or USB Audio Interface. When used as a USB Audio Interface, it can be connected to a PC, allowing the production of online content with high-fidelity sound, either for real-time transmission (streaming) or production of offline videos and podcasts. You can also record directly to a USB stick.
Features
Maximum Flexibility
The M1, is USB powered, enabling power through a power bank or even a battery-powered speaker with power bank function. This way you can create your own portable audio system.
One Mixer, Several Applications
The resistant and lightweight structure of the M1 allows you to use it in the most diverse situations, whether for voice or instrument control in live or recorded sound, or used as a USB interface for your computer recordings or for real-time audio content creation.
Your mixer, your control!

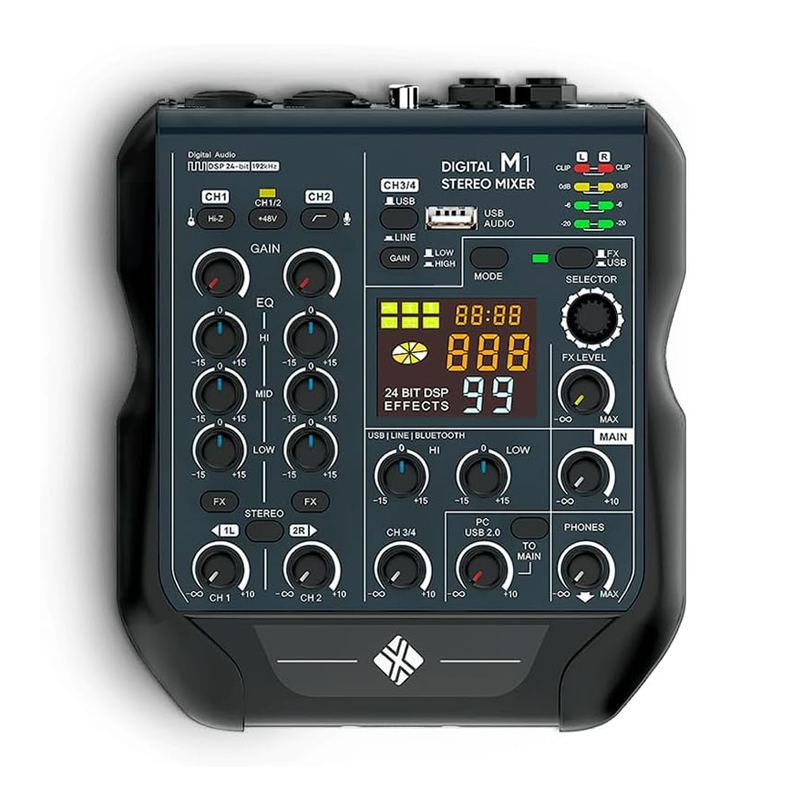

The M1 Digital Stereo Mixer incorporates 99 effects, phantom power (+48V), High-pass filter, EQ (bass, mid and treble), Hi-Z, line input, BT (v5.0) and direct play/recording from/to USB stick.
Powerful DSP
With the integrated DSP is possible to have dedicated presets for different situations such as Ambience, Bathroom, Room, Plate, Spring, Hall, Warehouse, Cathedral, Gated Reverb, Chorus, Chorus Reverb, Phaser, Phaser Reverb, Flanger, Flanger Reverb, Rotary, Delay.
Light as a feather

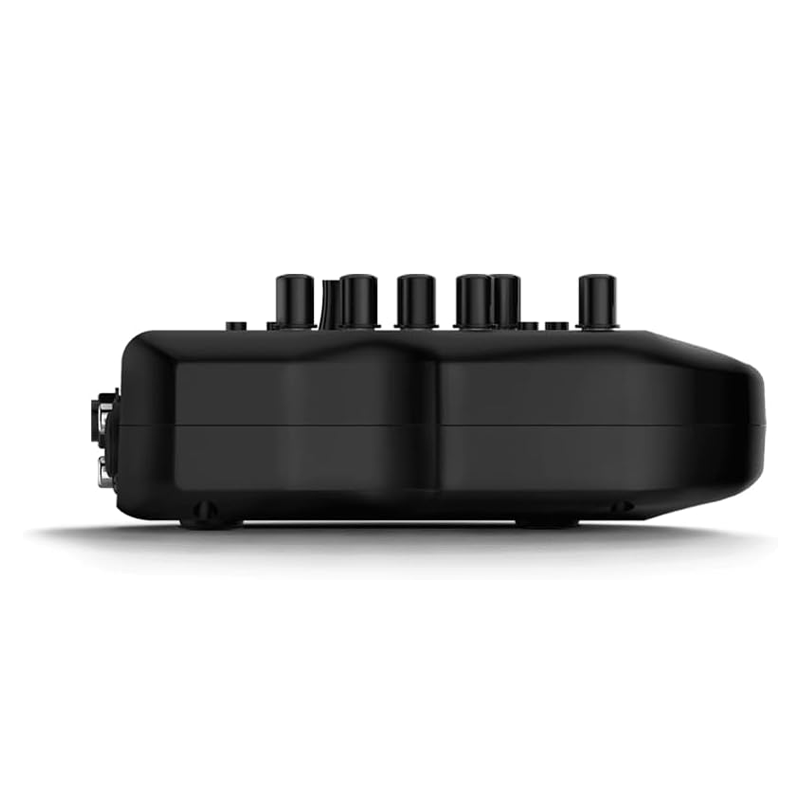

For a more versatile and portable use, the M1 uses light and robust components allowing a total weight of less than 600g. This mixing console was designed to fit in the palm of your hand.
Specifications
| Product Type | Digital Mixing Console (USB Audio Interface) |
|---|---|
| Effects | Ambience, Bathroom, Room, Plate, Spring, Hall, Warehouse, Cathedral, Gated Reverb, Chorus, Chorus Reverb, Phaser, Phaser Reverb, Flanger, Flanger Reverb, Rotary, Delay |
| Wireless Connection System | BT v5.0 |
| Wireless Range | 10m (32.8ft) |
| Audio Signal Inputs | BT | Microphone (+48V) | Instrument (HI-Z) | USB | AUX | CD Player | PC (2 Channels) |

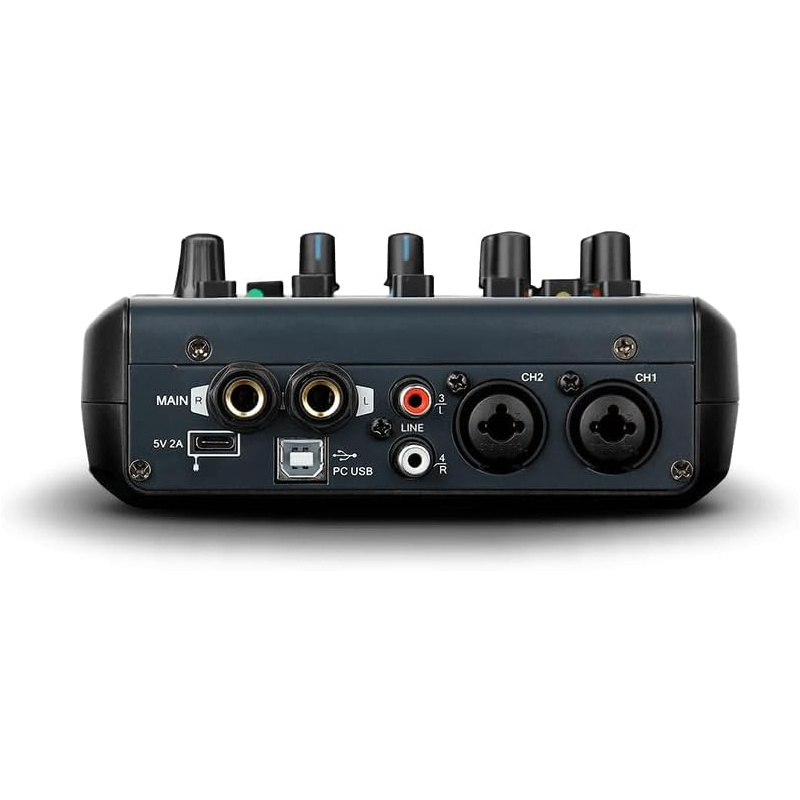

| Input Connectors | 2 x XLR / TRS combo | 1 x 3.5mm Stereo Jack | 1 x USB | 1 x Stereo RCA | 1 x USB 2.0 |
| Audio Signal Outputs | Main Output | Headphones | PC (2 Channels) |
| Output Connectors | 2 x Balanced TRS | 1 x 3.5mm Stereo Jack | 1 x USB 2.0 |
| Power Input | Power Supply: AC 100V – 240V 50Hz/60Hz | DC 5V – 2A |
| Power Consumption | 10W (2A) |
| 10W (2A) | HI-Z, Low Cut, EQ (LOW, MID, HIGH), Phantom Power (+48V), Effects, USB Stick Recording, PC Recording |
| Construction | Reinforced Plastic |
| Dimensions (WxHxD) | 153 x 64 x 175mm (6 x 2.5 x 6.9 in) |
