Next Audio LAs418G Double Bass Reflex Subwoofer
Description
Housing two long excursion and very high power 18″ drivers, this Subwoofer has been designed to offer ultra-low frequencies at a very high SPL delivering magnificent precision and punch at incredible pressure levels. The cabinet volume with optimized port tuning – featuring extremely high peak-to peak excursion capability – is capable of delivering true sub performance down to 24Hz at -10dB. Providing low frequency resolution and a maximum SPL of 143.8dB in a 90kg, front loaded, bass reflex enclosure and measuring 516mm x 920mm x 1030mm (HxDxW), the subwoofer incorporates eight handles. Housed within a multi-laminate birch plywood enclosure and finished in textured black semi-matte coating, the LAs418G can be deployed in either standard or cardioid configuration using the parallel wired Neutrik NL4 conector on the front of the Subwoofer.
Features
Ready For Touring

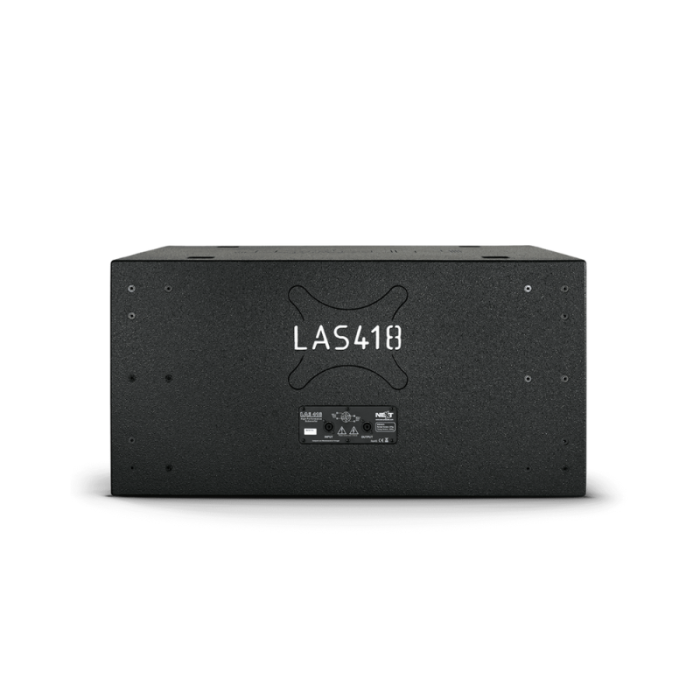

The Las418G incorporates 8 handles, 4 each side, balancing the total weight of 90kg, and 2 x Neutrik NL4 on back 1 Neutrik NL4 on front, parallel wired.
Cardioid Ready
The LAs418G can be deployed in either standard or cardioid configuration using the parallel wired Neutrik NL4 conector on the front of the Subwoofer.
The LAs418G 2x4ohm was specially designed to be driven by N-RAK.
Specifications
| Product Type | Passive Very High Power Reflex Subwoofer |
|---|---|
| Frequency Response (-6dB) | 28Hz – 250Hz |
| Low Frequency Extension (-10dB) | 24Hz |
| Program Power | 6000W |
| Peak Power | 12000W (10ms) |
| Nominal Impedance | 2 x 8Ω (also available: 2 x 4Ω version) |
| Sensitivity (1W, 1m) | 109dB (Half-Space) |
| Maximum SPL Pgm/Peak (calculated) | 143.8dB / 149.8dB (Half-Space) |
| Subwoofer Driver | 2 x 18″ (460mm) / 4.5″ (116mm) VC, very high excursion, B&C custom speaker |
| Frequency / Type of X-Over | 60Hz to 180Hz | 24dB/oct Linkwitz-Riley (recommended) |
| Recommended High-Pass Filter | 28Hz, 18dB/oct Butterworth |
| Input Connectors | 2 x Neutrik NL4 on back 1 Neutrik NL4 on front, parallel wired |
| Recommended Amplifier | N-RAK |
| Fittings | 16 x M8 threaded inserts for optional wheel kit, 8 replaceable feet |
| Handles | 4 on each side |
| Grille | Black Perforated Steel |
| Construction | Heavily braced, 18mm multi-laminate birch ply |
| Finish | Semi-Matte Black Textured Coating |
| Dimensions (WxHxD) | 1030 x 516 x 920 mm |
| Net Weight | 90kg |
| Shipping Weight | 96.8kg |
