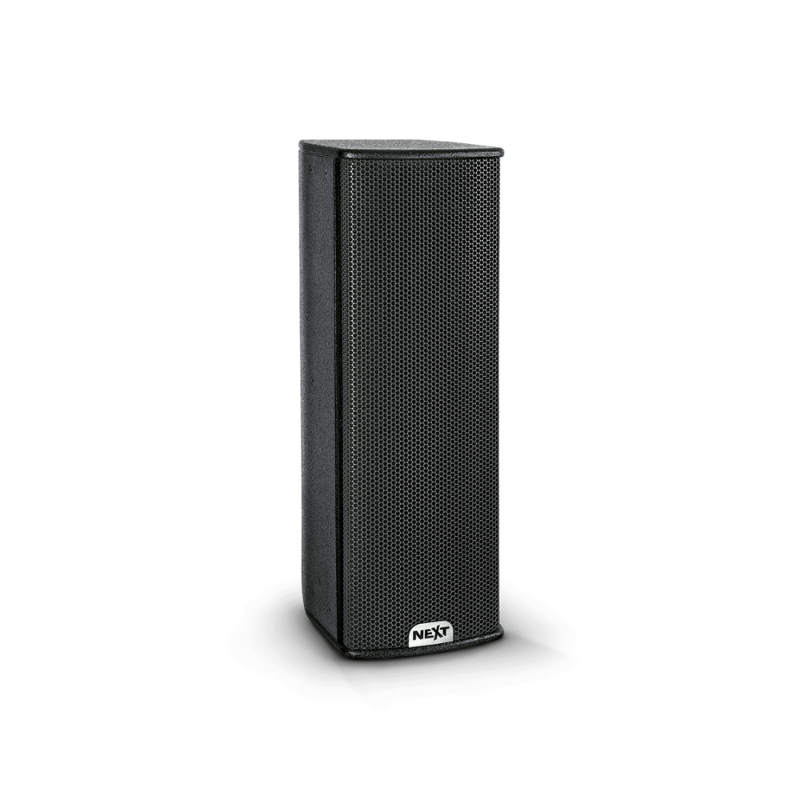

Next Audio HFA206p Passive Full-Range Vertical Array
Description
The HFA206 is a 2×6.5” passive speaker designed for virtually any application where size is critical and high output and outstanding sonic performance are required.
Natural sounding music and intelligible speech are the result not only of a careful system design, but mainly the selection and matching of the components. To assure maximum performance and reliability, the HFA206p incorporates high-quality custom speakers. This versatile speaker works equally well on tripod stands, on the wall with the custom U-Bracket or as a flying system with a wide range of rigging points.
The cabinets are constructed using birch plywood and finished in durable black semi-matt textured paint. Front and speakers’ protection is assured by an acoustically transparent power coated metal grille.
Specifications
| Product Type | Passive Two-way Vertical Array |
|---|---|
| Frequency Response (-6dB) | 80Hz – 18.000Hz |
| Nominal Coverage (-6dB) | 90º x 40º user rotatable |
| Program Power | 500W |
| Nominal Impedance | 4Ω |
| Sensitivity (1W, 1m) | 95dB (Full-Space) |
| Maximum SPL Pgm/Peak (calculated) | 121dB / 127dB (Full-Space) |
| Low Frequency Driver | 2 x 6.5″ (170mm) / 1.5″ (38mm) voice coil, custom speakers |
| High Frequency Driver | 1 x 1″ (25mm) exit / 1.75″ (44mm) voice coil, custom compression driver |
| Input Connectors | 2 x Neutrik NL4 |
| Recommended Amplifier | MA1700 / MA900 |
| Dimensions (WxHxD) | 219 x 625 x 259 mm |
| Net Weight | 14.4kg |
| Shipping Weight | 15.6kg |
