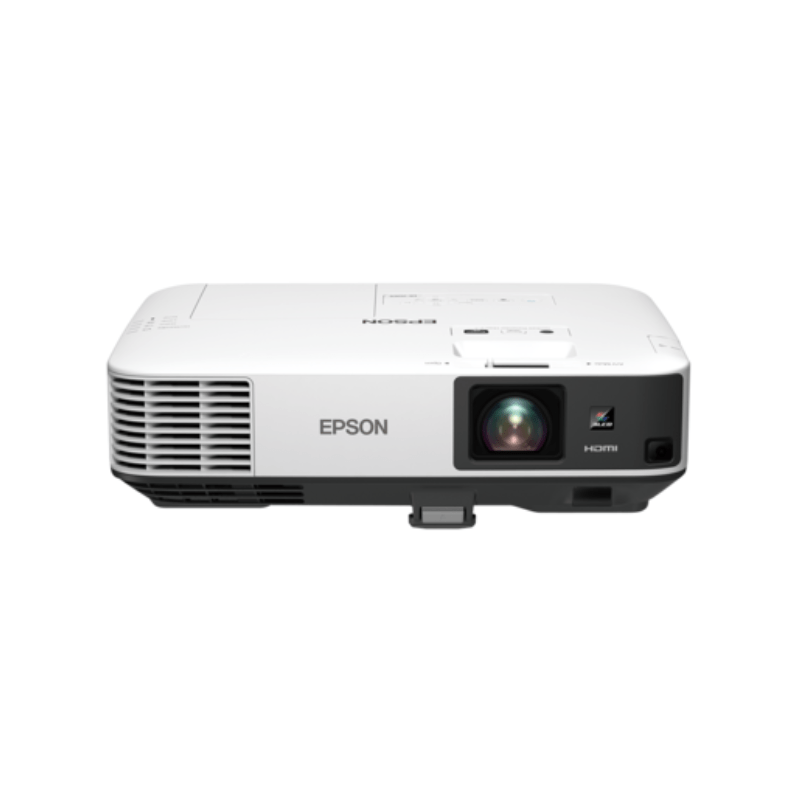

Epson EB-972 XGA 3LCD Projector

Large, Sharp, Impactful Viewing Experience.

The EB-972 classroom projector features advanced connectivity and premium 16 W audio. Offering remarkable color accuracy, Epson projectors deliver high Color Brightness. Reliable and easy to use, the EB-972 features 4100 lumens of color/white brightness, plus XGA resolution. Its long-lasting lamp, which delivers up to 17,000 hours in ECO Mode, lowers maintenance costs. Optional wireless and built-in RJ-45 connectivity offer advanced network control and support the simultaneous display of multiple screen. It also features easy setup and 2x HDMI.

Projection System: 3LCD, 3-chip technology
Native Resolution: 1024 x 768 (XGA)
Color Brightness: 4100 lumens
White Brightness: 4100 lumens

Description

High resolution quality
Deliver captivating presentations complete with sharp text and rich images.

Big projections
When you are looking for big display, projection is the obvious answer ensuring that your information is conveyed clearly and accurately for everyone in the room.

Horizontal Keystone Slider
With the easy-to-use sliding Horizontal Keystone Slider, screen corrections can be done quickly, easily, and accurately, even in a limited space.

Various Interfaces

Epson business projectors support a wide range of connectivity options including HDMI, VGA, and USB. These interfaces support connections to both the latest digital devices as well as the existing legacy of analogue products without the need for adaptors.

Projection Technology:

Projection Technology:

RGB liquid crystal shutter projection system (3LCD)

Brightness²:

White Light Output (Normal/Eco):

4,100 lm

Colour Light Output:

4,100 lm

Connectivity:

USB Interface:

USB Type A: 1 (for Wireless LAN, Firmware Update, Copy OSD Settings)
USB Type B: 1 (for Firmware Update, Copy OSD Settings)

Network:

Wireless: 1 (ELPAP11)
Wired LAN: 1

Analog Input:

Composite: 1 RCA
D-Sub 15pin: 2

Digital Input:

HDMI: 2

Output Terminal:

D-Sub 15Pin: 1

Audio Input:

2RCA (White & Red): 1
Stereo Mini: 2

Audio Output:

Stereo Mini Jack: 1

Mic I/O:

Stereo Mini: 1

Control I/O:

RS-232C: 1

Contrast Ratio:

Contrast Ratio:

16,000:1

Screen Size (Projected Distance):

Standard Size:

Tele: 27” to 262” [1.40 to 13.81 m]
Wide: 27” to 262” [0.85 to 8.52 m]

Geometric Correction:

Vertical/Horizontal Keystone:

±30° / ±30° (Auto Vertical Keystone only)

Quick Corner:

Yes

Operating Temperature:

Operating Temperature:

Low Altitude: 5 – 40 °C <41 – 104 °F> High Altitude: 5 – 35 °C <41 – 95 °F>
(20% – 80% Humidity, No Condensation)

Operating Altitude:

Operating Altitude:

0 – 3,048 m <0 – 10,000 ft>

Start-Up Period:

Start-Up Period:

Up to 6 seconds, Warm-up Period: 30 seconds

Cool Down Period:

Cool Down Period:

Instant Off

Direct Power On/Off:

Direct Power On/Off:

Yes

Dimension Excluding Feet (W x H x D):

Dimension Excluding Feet (W x H x D):

309 x 90 x 282 mm

Weight:

Weight:

Approx. 3.1 kg

Air Filter:

Type:

High Efficiency Filter

Maintenance Cycle:

10,000 / 20,000 hours^*3

Fan Noise:

Fan Noise (Normal / Eco):

37dB / 28dB

Power:

Power Supply Voltage:

100 – 240 V AC ±10%, 50/60 Hz

Projectors Facets:

Resolution, Projectors Facets:

XGA

Contrast Ratio, Projectors Facets:

16,000:1

Brightness Range Lumens, Projectors Facets:

4001

Features, Projectors Facets:

Wifi
Quick Corner

Laser / Lamp, Projectors Facets:

Lamp

Optional Wireless & Built In Lan Specifications:

Supported Speed for each Mode:

IEEE 802.11b (2.4GHz): 11 Mbps^*2
IEEE 802.11g (2.4GHz): 54 Mbps^*2
IEEE 802.11n (2.4GHz): 72.2 Mbps^*2
IEEE 802.11a (5GHz): 54Mbps^*2
IEEE 802.11n (5GHz): 150 Mbps^*2

Wireless LAN Security:

Infrastructure: OPEN, WPA2/WPA3-PSK
Access Point: OPEN, WPA2-PSK (AES)

Specifications of Main Parts:

LCD:

Size: 0.55” (C2fine)
Native Resolution: XGA

Lightsource:

Lamp Life (Normal / Medium / ECO): 6,500 / 10,000 / 17,000 hrs
Type: 230W UHE

Aspect Ratio:

4:3

Projection Lens:

Focal Length: 18.20 – 29.20 mm
Zoom Ratio: 1 – 1.6
Throw Ratio: 1.58 – 2.56 (Wide to Tele)
Type: Optical Zoom (Manual) / Focus (Manual)
F-Number: 1.51 – 1.99

Notes:

^*1 Colour brightness (colour light output) and white brightness (white light output) will vary depending on usage conditions. Colour light output measured in accordance with IDMS 15:4; white light output measured in accordance with ISO 21118.

^*2 Maximum speed and range is achievable when used with same enhanced mode technology. Actual data rates, features and performance may vary depending on your computer system, the environment and other factors.

^*3 When used in the general office environment (the amount of floating dust: 0.04 – 0.2 mg/m3 ). Based on the Epson’s in-house test results
