Description

Yealink MVC640 is specially designed for medium conference rooms. MVC640 includes third-generation high-performance MINI-PC MCore Pro, touch panel MTouch E2, and high-performance 4K PTZ camera UVC84. In this portfolio, you can choose different pickup microphones according to the needs of different conference rooms, DECT wireless microphone CPW65 and Wi-Fi wireless microphone VCM36-W. The surprise is that UVC84 in the portfolio has excellent performance. It has a 4K lens that supports 12x optical zoom and 3x digital zoom, an 80° wide Angle and a pan-tilt that allows it to cover every corner of the conference room. The Auto-framing function of UVC84 will free your mind and let you focus on the meeting without thinking about the picture of the camera. With the Yealink camera plug-in controller, the camera can realize the preset position, one-step adjustment, and one-step in place.

Features

Yealink MVC640 - Medium Rooms Solutions for Microsoft Teams Rooms Video Conferencing

Designed for large meeting rooms, the Yealink MVC640* Microsoft Teams Room system is a bundle video conferencing system with a UVC84 4K camera, 2* CPW65 DECT-Wireless microphones, MCore Pro mini-PC and MTouch E2 touch panel. This powerful bundle combines cutting-edge technology to deliver seamless, intelligent collaboration with both internal and external users.

MVC640

Enhanced Video Quality in 4K

Equipped with a remarkable 4K sensor and 12x optical zoom, the UVC84 captures every detail, making it ideal for medium and large conference rooms. The innovative Auto Framing feature automatically adjusts the view to include all attendees. The auto-privacy protection design secures the privacy of your meetings.

MVC640

Share Effortlessly

No additional software or drivers are needed. Simply plug in the WPP30 to your devices, and your ideas are instantly ready for presentation. You can seamlessly utilize the device mode without any configuration required.

Buy Yealink MVC640-C4-F13 Conference System (1106991)

Seamless Audio Excellence

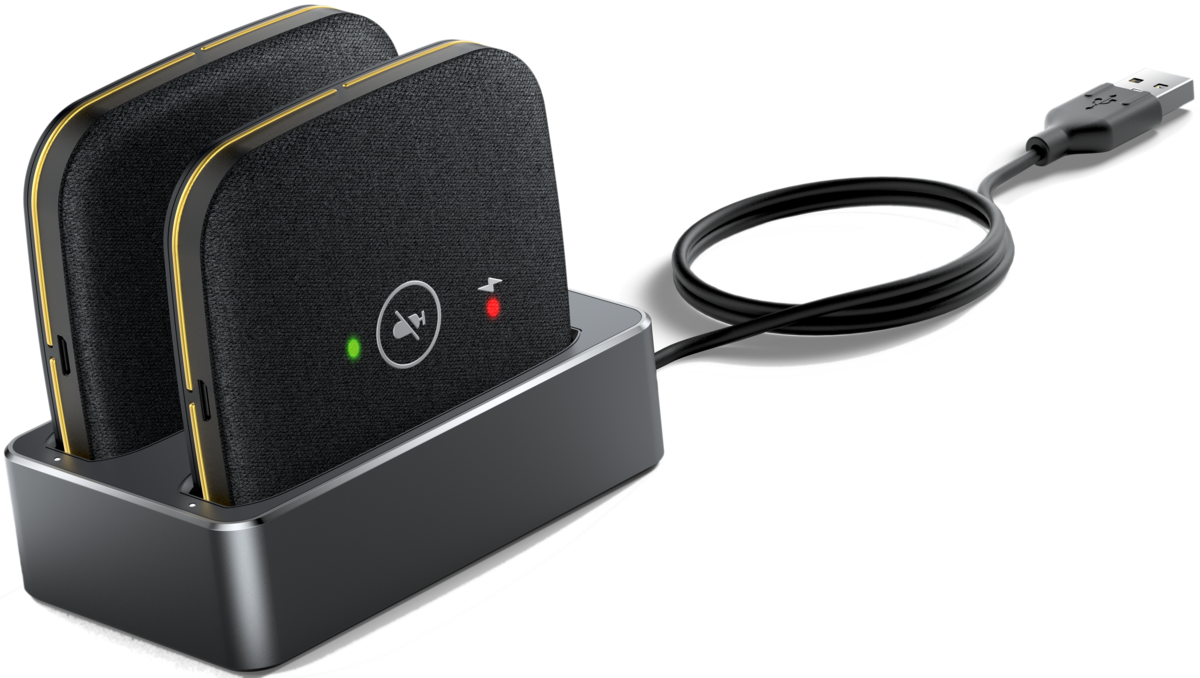

With advanced features such as 360-degree 10-foot (3-meter) voice pickup and echo cancellation technology, the Yealink CPW65 ensures exceptional clarity for every participant’s voice. Experience the freedom of movement with wireless DECT connectivity, while the impressive 11-day standby time and 13-hour talk time provide convenient and time-saving management.

Powerful and Secured Performance

Experience a more powerful CPU, enabling faster processing and enriched AI features. With support for three display screens, our Mini-PC transforms conference rooms into immersive spaces for collaboration. Enjoy automated display control and seamless signal adaptation through CEC and EDID codec technologies. Simplify your setup with a single CAT5e cable that integrates data transmission and power supply.

MVC340

Control Effortlessly

The MTouch E2 touch panel is designed to be a versatile all-in-one solution, enabling seamless control over calls, cameras, content sharing, and beyond. Plus, with its built-in Human Motion Sensor, your conference system awakens automatically, ensuring you can dive right into your meetings.

Specifications

Package Content	• MCore Pro, Gen-3 Mini-PC • MTouch E2, Gen-3 touch panel • UVC84 USB PTZ camera • CPW65 DECT wireless microphone(optional) • VCM36-W Wi-Fi wireless microphone(optional) • WPP30 wireless presentation pod
Preload	• Windows 10 IoT Enterprise X64/Windows 11* IoT Enterprise X64 • Windows 10 IoT Enterprise License • Microsoft Teams Rooms App, support Skype for Business onpremise/online and Teams meetings • Yealink RoomConnect *Windows11 will be supported in 23H2
MCore Pro, Gen-3 Mini-PC	• 11th Gen Intel® Core i5 • Memory: 8 GB(2 x 4 GB) • Storage: 128 GB SSD • 3 x HDMI video output with CEC supported • TPM2.0 • Kernel DMA • EDID • Wi-Fi: IEEE 802.11 a/b/g/n/ac/ax • Bluetooth: BT 5.2 • 1 x Yealink MTouch port (RJ45), connect to MTouch Plus/MTouch E2 • 4 x USB 3.0 Type-A • 1 x 10/100/1000M Ethernet port • 1 x Power port • 1 x Security lock slot, Integrated cable management
Connector Type	• 8-inch IPS screen • 1280 x 800 resolution • 10-point capacitive touch screen • 3.5 mm headset jack • Angle adjustable bracket (28° – 50°) • 1080P/30FPS FHD for sharing • Support wired and wireless content sharing • Built-in Wi-Fi AP for Yealink wireless presentation device • HDMI/USB-C HD video input
MTouch E2 touch panel	• 4K Sensor • 12x optical zoom • Field of view (diagonal): 80° • Auto Framing • Camera presets • Pan range: 200° • Tilt range: 130° • 1 x Line-out (3.5mm) • 1 x Yealink Microphone port (RJ-45) • 1 x USB 2.0 Type-B • 1 x Power port • 1 x Security lock slot • 1 x Reset lot
VCM36- W(optional)	• Built-in three-wheat matrix • 360° omnidirectional pickup • Signal to Noise ratio: 60dB SPL@1KHz,A-weighted • Loudest Pressure level: 115dB@1KHz, THD< 3% • Equivalent noise: -105dBFS(A) • Dynamic range: 81dBFS • Sensitivity: -45dB±2 • Frequency response: 100Hz-8KHz • 2-meter radius full duplex range • 6 m pickup radius • 2450mAh battery with wireless charging • 7 days standby time, up to 12 hours of continuous use • Two-color LED capacitive touch mute button
CPW65	• 360° omnidirectional pickup • Signal-to-noise ratio: 65dB SPL@1KHz,A-weighted • Loudest Pressure level: 110dB@1KHz, THD< 3% • Equivalent noise: -110dBFS(A) • Dynamic range: 81dBFS • Sensitivity: -32db+/-2 • Frequency response: 100Hz-8KHz • 2-meter radius full duplex range • 6 m pickup radius • Use Yealink WDD60 for pairing • Two-color LED capacitive touch mute button
MSpeaker II	• Frequency response: 106Hz-20 KHZ • Maximum Loud Pressure level: 88±3dB@8W / 1M • Sensitivity: 79±3dB@1W/1M • S/N: ≥70dB • 3.5mm linear input interface
Package Features	• N.W/CTN: 7.7 Kg • G.W/CTN: 8.4 Kg • Carton Meas: 595 mm x 393 mm x 258 mm

Click to enlarge

Yealink MVC640

Key Features:

MCore Pro, Gen-3 Mini-PC
MTouch E2, Gen-3 touch panel
UVC84 USB PTZ camera
MSpeaker II(optional)
CPW65 DECT wireless microphone(optional)
VCM36-W Wi-Fi wireless microphone (optional)
WPP30 wireless presentation pod (optional)
11th Gen Intel® Core i5
Memory: 8 GB (2 x 4GB)
Storage: 128 GB SSD
8-inch IPS screen
1280 x 800 resolution
4K Sensor USB PTZ camera
12x optical zoom USB PTZ camera
Auto Framing
Camera presets

Package Content	• MCore Pro, Gen-3 Mini-PC • MTouch E2, Gen-3 touch panel • UVC84 USB PTZ camera • CPW65 DECT wireless microphone(optional) • VCM36-W Wi-Fi wireless microphone(optional) • WPP30 wireless presentation pod
Preload	• Windows 10 IoT Enterprise X64/Windows 11* IoT Enterprise X64 • Windows 10 IoT Enterprise License • Microsoft Teams Rooms App, support Skype for Business onpremise/online and Teams meetings • Yealink RoomConnect *Windows11 will be supported in 23H2
MCore Pro, Gen-3 Mini-PC	• 11th Gen Intel® Core i5 • Memory: 8 GB(2 x 4 GB) • Storage: 128 GB SSD • 3 x HDMI video output with CEC supported • TPM2.0 • Kernel DMA • EDID • Wi-Fi: IEEE 802.11 a/b/g/n/ac/ax • Bluetooth: BT 5.2 • 1 x Yealink MTouch port (RJ45), connect to MTouch Plus/MTouch E2 • 4 x USB 3.0 Type-A • 1 x 10/100/1000M Ethernet port • 1 x Power port • 1 x Security lock slot, Integrated cable management
Connector Type	• 8-inch IPS screen • 1280 x 800 resolution • 10-point capacitive touch screen • 3.5 mm headset jack • Angle adjustable bracket (28° – 50°) • 1080P/30FPS FHD for sharing • Support wired and wireless content sharing • Built-in Wi-Fi AP for Yealink wireless presentation device • HDMI/USB-C HD video input
MTouch E2 touch panel	• 4K Sensor • 12x optical zoom • Field of view (diagonal): 80° • Auto Framing • Camera presets • Pan range: 200° • Tilt range: 130° • 1 x Line-out (3.5mm) • 1 x Yealink Microphone port (RJ-45) • 1 x USB 2.0 Type-B • 1 x Power port • 1 x Security lock slot • 1 x Reset lot
VCM36- W(optional)	• Built-in three-wheat matrix • 360° omnidirectional pickup • Signal to Noise ratio: 60dB SPL@1KHz,A-weighted • Loudest Pressure level: 115dB@1KHz, THD< 3% • Equivalent noise: -105dBFS(A) • Dynamic range: 81dBFS • Sensitivity: -45dB±2 • Frequency response: 100Hz-8KHz • 2-meter radius full duplex range • 6 m pickup radius • 2450mAh battery with wireless charging • 7 days standby time, up to 12 hours of continuous use • Two-color LED capacitive touch mute button
CPW65	• 360° omnidirectional pickup • Signal-to-noise ratio: 65dB SPL@1KHz,A-weighted • Loudest Pressure level: 110dB@1KHz, THD< 3% • Equivalent noise: -110dBFS(A) • Dynamic range: 81dBFS • Sensitivity: -32db+/-2 • Frequency response: 100Hz-8KHz • 2-meter radius full duplex range • 6 m pickup radius • Use Yealink WDD60 for pairing • Two-color LED capacitive touch mute button
MSpeaker II	• Frequency response: 106Hz-20 KHZ • Maximum Loud Pressure level: 88±3dB@8W / 1M • Sensitivity: 79±3dB@1W/1M • S/N: ≥70dB • 3.5mm linear input interface
Package Features	• N.W/CTN: 7.7 Kg • G.W/CTN: 8.4 Kg • Carton Meas: 595 mm x 393 mm x 258 mm
