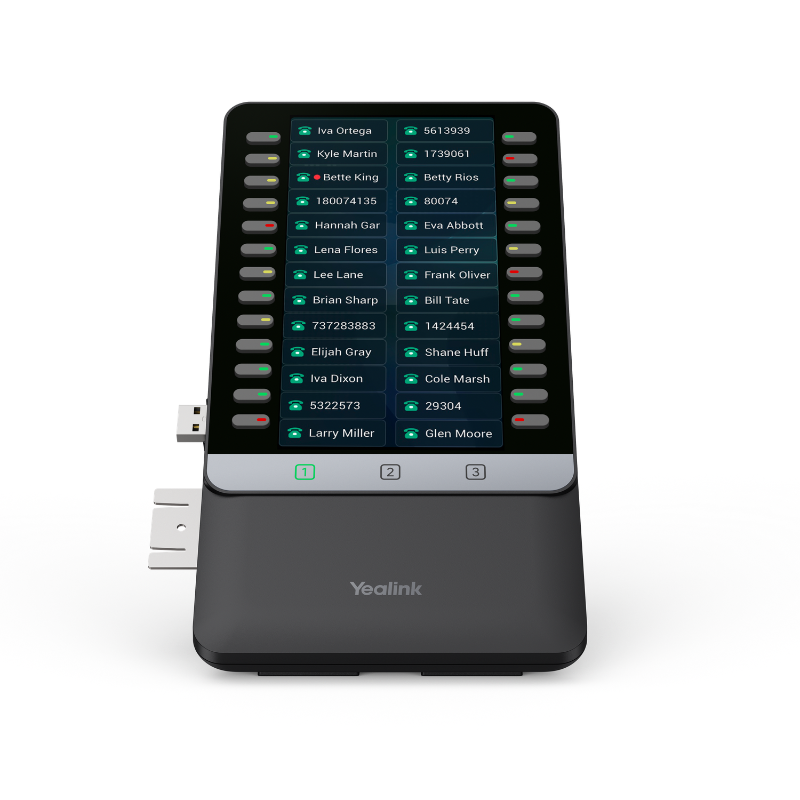

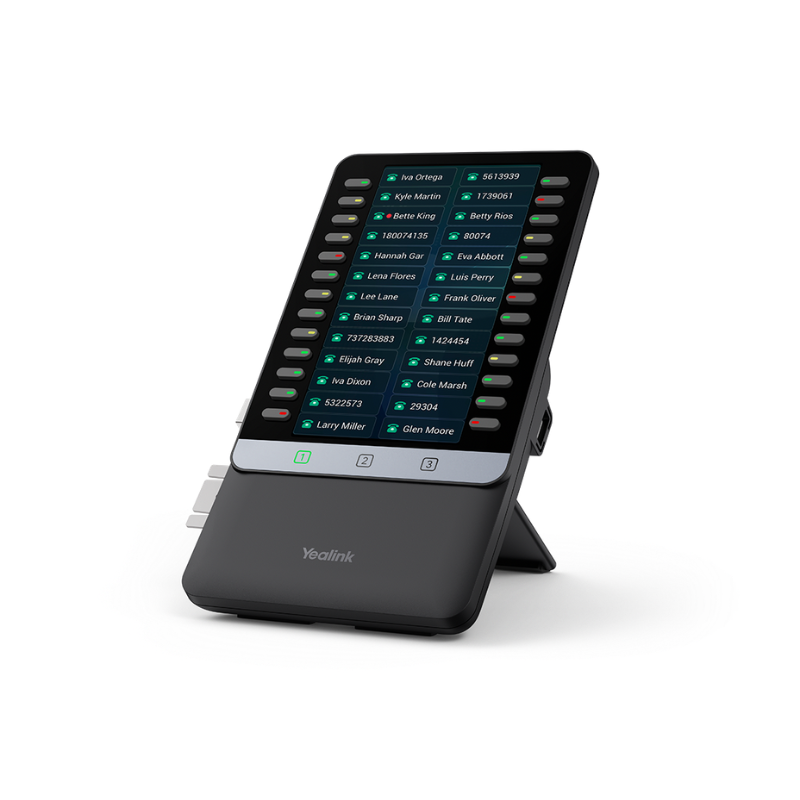

Yealink EXP55

Key Features

  • For Yealink T7 & T8 Series IP Phones
  • 5.5″ Color LCD Screen
  • 26 x Physical Backlit Keys
  • 3 x Illuminated Control Keys
  • 3 x Page Support
  • USB-A 2.0 Port
  • Adjustable Stand
  • 3-Device Daisy Chain Support
Description

Description

File:Yealink logo.png - Wikimedia CommonsThe Yealink EXP55 Color Expansion Module for Yealink T7X/T8X IP phones is designed to expand the functional capability of your SIP phone to a whole new level. It features a large 5.5-inch color-screen LCD, giving you a vivid visual experience. In addition, it provides you with a simple user interface and advanced call-handling capabilities. For example, three pages of 26 flexible buttons shown on the display can be programmed up to 78 various features. The EXP55 will also extend the functionality of Yealink T7X/T8X IP phones, you can set the provided multifunctional line keys as BLF, speed dial, call forward, transfer, call park, call pickup, etc. The Yealink EXP55 Color Expansion Module is an ideal solution for receptionists, administrative assistants, and contact center workers, and gives you the ability to monitor contacts and manage a large volume of calls with ease.







Features

IP&Go - 100% VoIP - IP Phones - Expansion Modules - Yealink EXP55

Expand the capabilities of your Yealink T7 and T8 series SIP phones by attaching the EXP55 Color Expansion Module. With a 5.5″ color LCD screen and 26 dual-color illuminated keys, you can manage a large list of contacts while configuring up to 78 functions that include speed dial, call forward, call pickup, and more.













Yealink EXP55 IP Phone Expansion Module w/ 5.5-Inch Colour LCD Display

Intuitive Visualization

A 5.5-inch 480×960-pixel color screen greatly enriches your visual experience. The color icons for Dsskeys, the feature of Wallpaper and Screensaver, all of these offer you a new operating experience as well as allow you to customize the EXP55 in your own style. More than that, it has 3 independent control buttons with illuminated LEDs that are used for fast switching to the corresponding page.



























exp55

High Expansibility

The Yealink T7X /T8X IP phones can be fully equipped with up to three EXP55 Color Expansion Modules, while adding 234 additional buttons at most. Three pages of 26 flexible buttons with dual-color LED shown on the display can be programmed up to 78 various features for speed dialing, BLF/BLA, call forward, transfer, etc. Thus, it will help you effectively manage a high volume of concurrent calls, effortlessly monitor calls, and greatly boost personal productivity.

















Specifications

General

Compatibility
Yealink T7 / T8

Display

Panel Type
LCD
Size
5.5″
Native Resolution
480 x 960
Touchscreen
No

Inputs/Outputs

USB I/O
2 x USB-A 2.0 Female Input/Output

Power

Power Source
USB
Power Consumption
1.5 W

Physical

Mounting
1x Desk
Color
Black
Certifications
CE, FCC, ISO, REACH
Operating Conditions
14 to 122°F / -10 to 50°C at 10 to 95% Humidity
Storage Conditions
-22 to 158°F / -30 to 70°C
Dimensions
5.4 x 4.9 x 1.7″ / 137.5 x 124 x 42.6 mm

Packaging Info

Package Weight
1.165 lb
Box Dimensions (LxWxH)
9.4 x 6.4 x 3.4″
