Shure SVX14/PGA31

Description

The PGA31 performance headset microphone for general, speaking and performance use is a permanently-biased electret condenser microphone. Engineered to provide maximum versatility and reliable performance in a wide array of conditions at an affordable price, the PGA31 is compatible with any Shure wireless bodypack systems with TA4F (TQG) connectors. Available as an included option for many systems, it also makes a viable replacement option for use in existing systems. The wearable design offers improved comfort and a secure fit for hands-free operation in any situation, while the unidirectional (cardioid) pickup pattern provides excellent off-axis rejection for higher gain-before-feedback when using a stage monitor.

Features

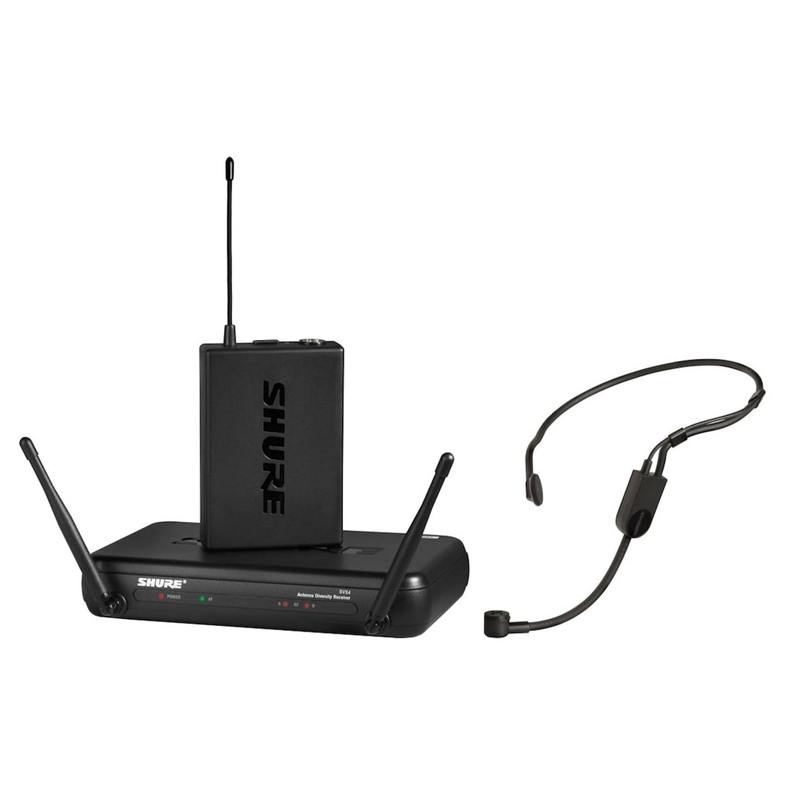

Shure SVX14/PGA31 Headset Wireless Microphone. Shure SVX14/PGA31 is a professional wireless headworn system that is designed for use in live performance and studio applications. The Shure SVX14/PGA31 wireless headset system is a great choice for musicians and vocalists who need a reliable and high-quality wireless system.

It is also a good choice for use in presentations and other applications where a wireless microphone is needed. The system includes a SVX4 diversity receiver, a SVX1 bodypack transmitter, and a PGA31 headset microphone. The SVX14/PGA31 is ideal for: Speeches, Live performances, Multi-instrumentalists, Active performers.

PGA31 Headset Condenser Microphone

• Wearable wireframe headset fits securely for multi-instrumentalists and active performers
• Permanently-charged electret condenser element for detailed, crisp vocals
• Unidirectional (cardioid) polar pattern rejects unwanted noise for improved sound quality and higher gain-before-feedback
• Flexible gooseneck design and discrete adjustment options optimize microphone positioning for further source isolation
• Included windscreen tames plosives for clean and intelligible sound reproduction
• TA4F (TQG) connector seamlessly integrates with existing Shure bodypack systems
• Available with a wide variety of Shure wireless systems, renowned for ease-of-use and reliable performance
• Included windscreen tames plosive, breath and wind noise for clean and intelligible sound
• Tailored frequency response primed for great sound on vocals
• Legendary Shure precision engineering for durability and performance

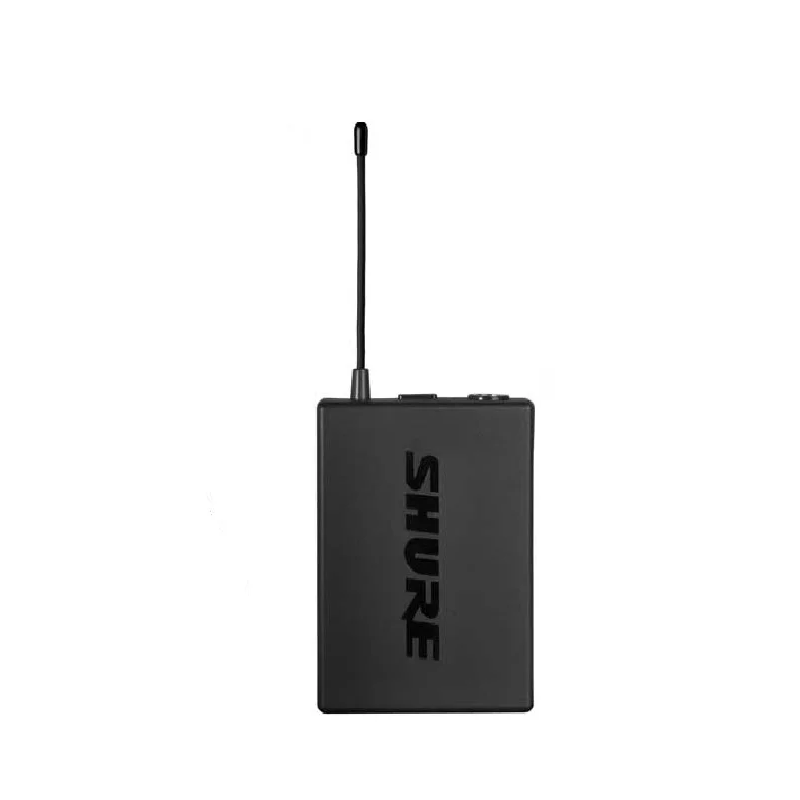

SVX 1 Transmitter

Transmitter Type: Bodypack
Dimensions: 108 mm height X 64 mm width X 19 mm depth
RF Output Power: 10
Battery, endurance: 10 h
Weight: 90 g

SVX4 Diversity Receiver

• Up to 8 selectable channels
• Up to 4 compatible systems*
• Antenna Switching  Diversity
• Adjustable Squelch Level
• 1/4″ and XLR output
• Available with Handheld and Lavalier system packages

Specifications

Set Type: Headset
Amount of Bodypacks: 1
Amount of TQG Mics: 1

SVX4 Specifications:

Transmission: Analog
Type of Power Supply: External
Receiver Housings: Molded ABS
Bias via BNC: No
High Density Mode: No
Interference Detection: No
Remote Control: No
Number of compatible systems per frequency band: Up to 4
DANTE-Enabled Products: No
Detachable Antennas: No
Network ability: No
Software control : No
Logic: No
Cascade: No
Receiver type: Single
Line Mic Switch: No
Power Requirements: 12 to 18 V DC @ 130 mA
Phantom Power Protection: No

SVX1 Specifications:

Weight: 90 g
Battery life alkaline: 10 h
Form Factor: Bodypack
Audio Mute: No
Detachable Antennas: No
Switchable RF power: No
Bodypack HxWxD without antenna: 108x64x19 g
Frequency Diversity: No
Functionality: Transmitter
High Density Mode: No
Input impedance: 22 kΩ
Transmission: Analog

PGA31 Specifications:

Weight: 45 g
Frequency Response: 60 Hz – 20 kHz
Frequency Response: Tailored
Sensitivity: -50.00 dBV/Pa – 3.20 mV/Pa
Self-Noise: 28 dB(A)
Max. Sound Pressure Level: 145 dB
Transducer Type: Condenser
Polar Pattern: Cardioid
Switchable low cut: No
Connectors: TQG (T4AF, 4-Pin Mini)
Attenuator: No
Interchangeable Capsule: No
Main Functionality: Performance
Headphone Output: No
Requires Phantom Power: 5V DC (nominal), 10 V maximum (DC bias) VDC
Cartridge: Fixed
