Shure SLXD24/SM86 Digital Handheld Wireless Vocal System

Description

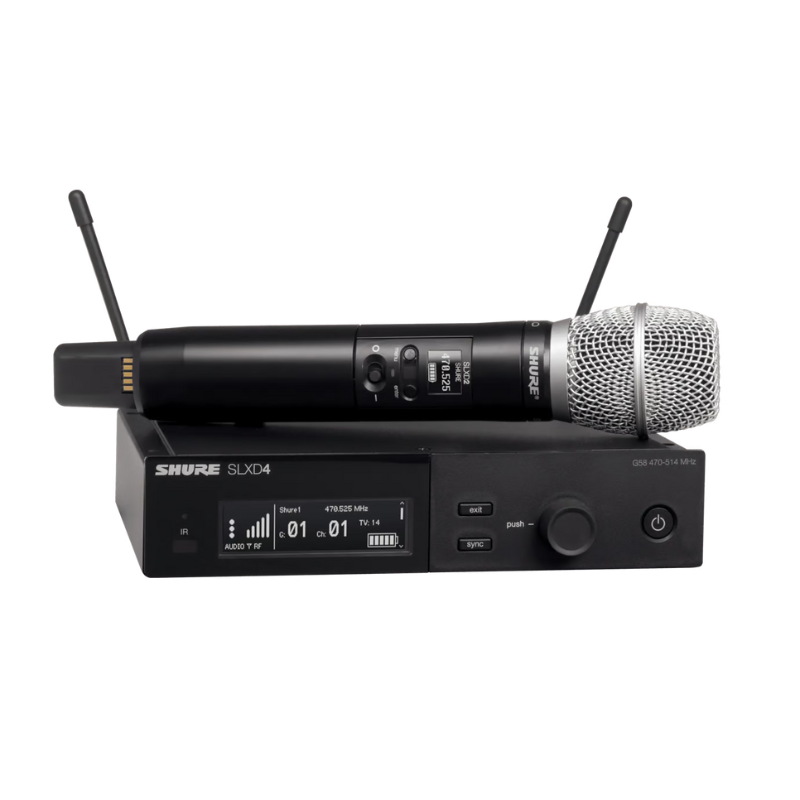

The SLXD24/86 Wireless System delivers transparent, 24-bit digital audio and rock-solid RF performance for a wide range of applications, from day-long presentations to nighttime performances. Operate up to 32 compatible systems per 44 MHz band, with easy setup and optional rechargeability accessories for wireless excellence, wherever required. Ships with SLXD4 single-channel receiver and SLXD2/86 handheld transmitters with antenna and rackmount accessories and 2 AA batteries.

Featuring the SM86 Cardioid Condenser Microphone capsule on top of the SLXD2 handheld wireless transmitter, the SLXD24/86 provides transparent digital audio and rock-solid RF stability for lecture halls and live performances.

Features

The SLX-D operates in the UHF band to transmit high-quality, 24-bit digital audio with over 120 dB of dynamic range for crisp, detailed sound. It utilizes Digital Predictive-Switching Diversity to protect the transmission from interference and deliver a solid, reliable RF signal without dropouts.

This configuration includes the SLXD2 handheld transmitter featuring an interchangeable microphone capsule design and equipped with a Beta 58A dynamic capsule. The mic’s supercardioid pickup pattern focuses on speech, helping to reduce feedback on loud stages. The lightweight metal transmitter features a selectable 1/10mW RF power output and a transmission range up to 330′. It provides up to 8 hours of operation on two AA batteries or an SB903 rechargeable battery (available separately).

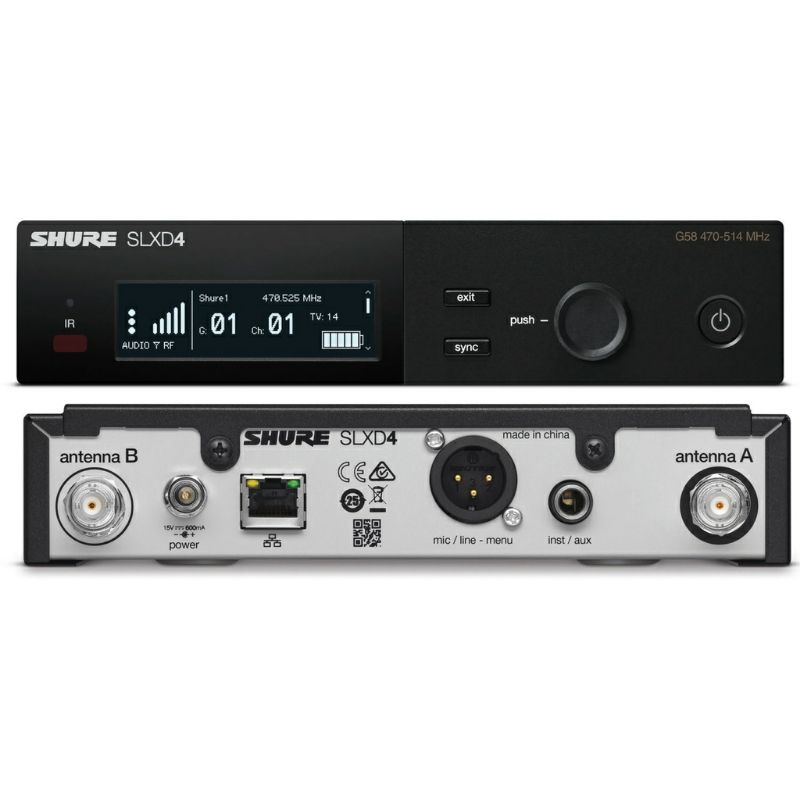

The all-metal, rackmount SLXD4 receiver features an intuitive LCD interface with meters for RF, battery status, and audio output. It also offers 60 dB of gain control, and both mic/line XLR and 1/4″ instrument outputs. Additional features include automatic frequency scanning and IR sync to easily link the transmitter and receiver to the same frequency.

With up to 32 mic channels available at the same time, the SLX-D is ready to expand as your needs grow. What’s more, setting up multiple systems is made fast and easy via the Ethernet port, which links the them together for quick, coordinated frequency scans from a single receiver.

• With durable aluminum housing, the SLXD2 handheld transmitter offers a lightweight design that’s comfortable to hold, and it features an LCD to show essential information.
• The SLX2/SM86 comes equipped with an SM86 cardioid condenser capsule that features a frequency response tailored for clear vocal reproduction. The cardioid polar pattern helps to isolate the main sound source while minimizing unwanted background noise.
• The transmitter’s interchangeable capsule design allows you to choose the ideal capsule for your application. Shure offers a variety of optional dynamic and condenser mic capsules with varying pickup patterns—capsules include the Beta 87A, SM58, and KSM8.

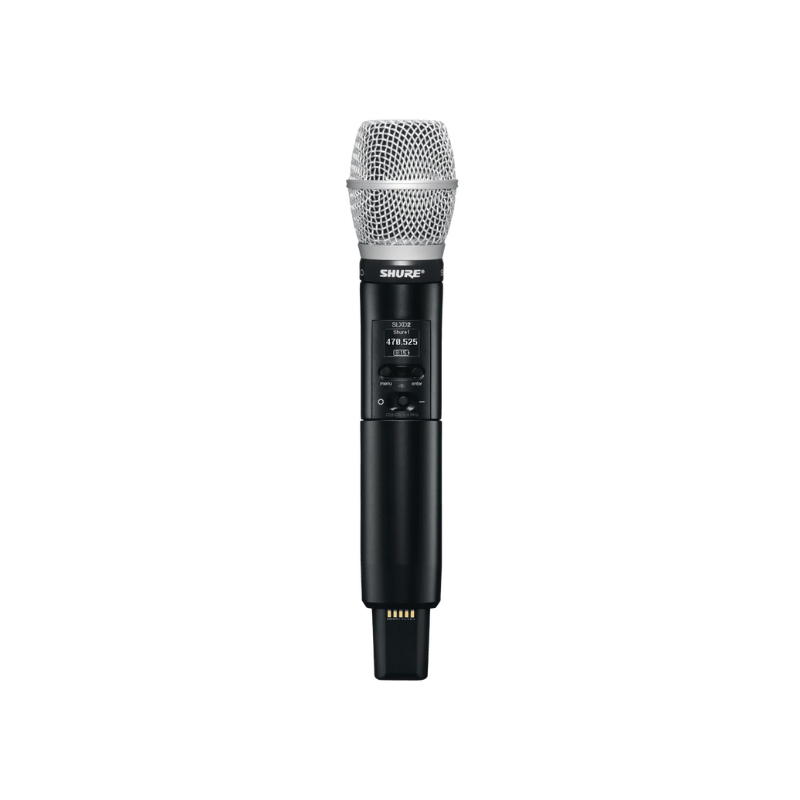

SLXD2 Digital Wireless Handheld Transmitter

Featuring industry-leading digital wireless technology and design, the SLXD2 easily syncs with a wireless receiver. A variety of interchangeable vocal microphone choices guarantees the right solution for a wide range of applications, from day-long presentations to nighttime performances.

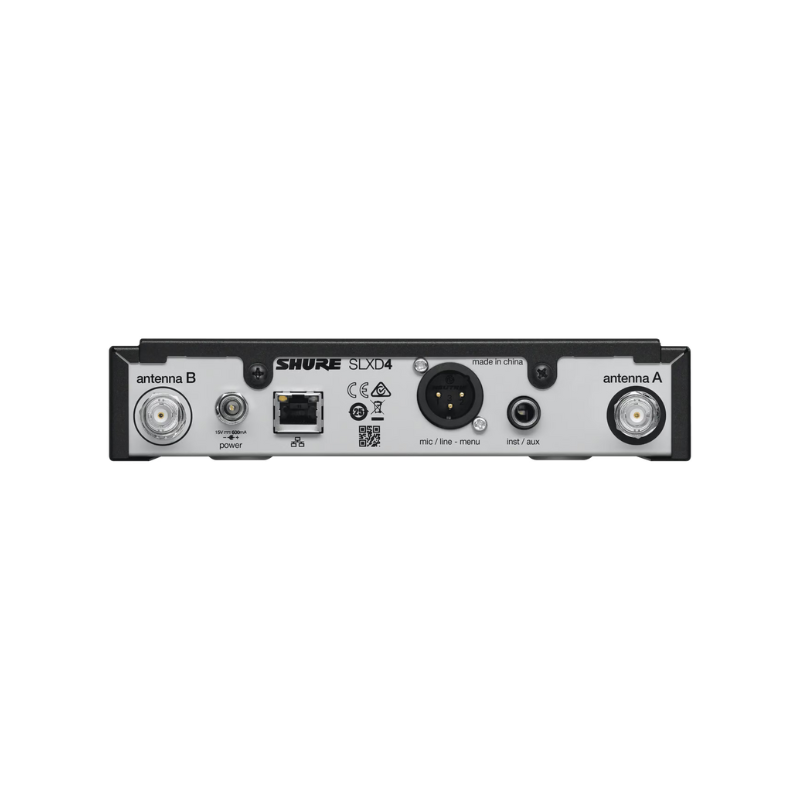

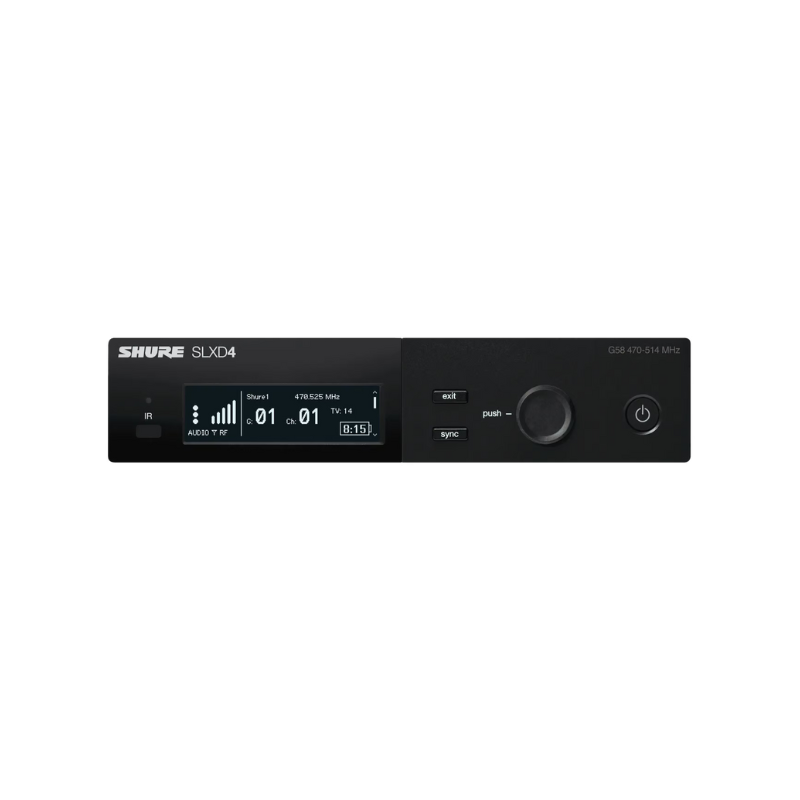

SLXD4 Digital Wireless Receiver

Featuring industry-leading digital wireless technology and design, the SLXD4 easily syncs wireless transmitters.  A variety of interchangeable microphone choices guarantees the right solution for a wide range of applications, from day-long presentations to nighttime performances.

Specifications
