Shure SLXD24/B58 Digital Wireless Handheld Microphone System
Key Features
- For Presenters and Performers
- Beta 58A Dynamic Supercardioid Capsule
- Handheld Transmitter
- Digital Predictive Diversity Receiver
- 1760 Auto-Scan Frequencies
- 1/10mW RF Power
- LCD Screen, Ethernet for Group Scans
- Interchangeable Mic Capsule Design
- Compatible with 8-Hr Rechargeable SB903
- Expandable to 32 Mic Channels/330′ Range
Description

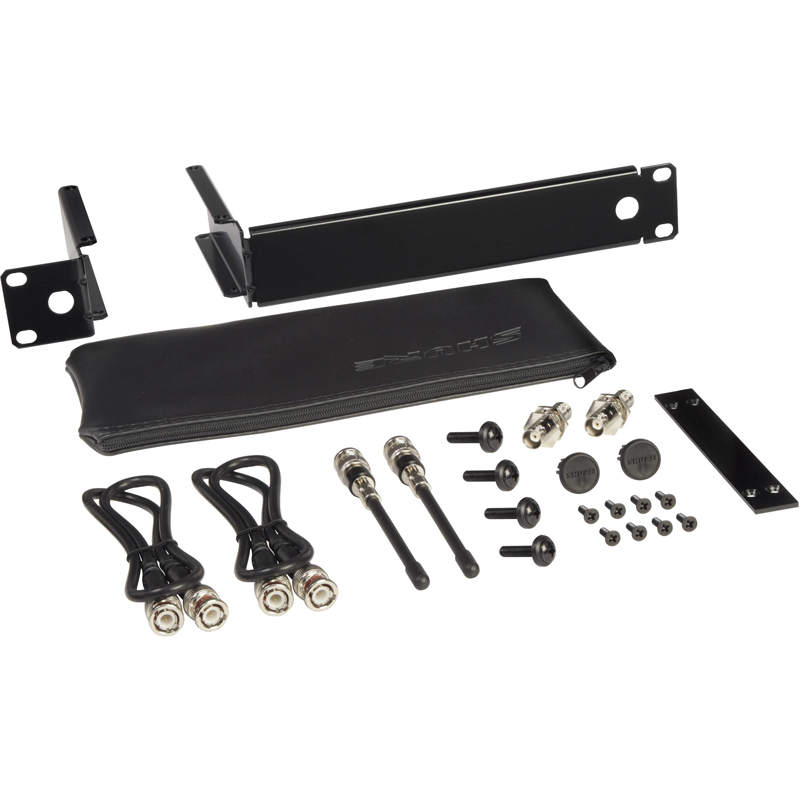

The SLXD24/B58 Wireless System delivers transparent, 24-bit digital audio and rock-solid RF performance for a wide range of applications, from day-long presentations to nighttime performances. Operate up to 32 compatible systems per 44 MHz band, with easy setup and optional rechargeability accessories for wireless excellence, wherever required. Ships with SLXD4 single-channel receiver and SLXD2/B58 handheld transmitters with antenna and rackmount accessories and 2 AA batteries. The Shure SLXD24/B58 offers presenters and performers a wireless handheld microphone system that’s dependable, easy to set up, and features crystal-clear, digital sound quality. Built around a rugged, single-channel, half-rack receiver with removable antennas, the system is ideally suited for portable rigs or long-term installations in small- to medium-sized venues, event spaces, conference rooms, houses-of-worship, and education facilities.
Features
Featuring the Beta®58A Supercardioid Dynamic Microphone capsule on top of the SLXD2 handheld wireless transmitter, the SLXD24/B58 provides transparent digital audio and rock-solid RF stability for lecture halls and live performances.
The SLX-D operates in the UHF band to transmit high-quality, 24-bit digital audio with over 120 dB of dynamic range for crisp, detailed sound. It utilizes Digital Predictive-Switching Diversity to protect the transmission from interference and deliver a solid, reliable RF signal without dropouts.
This configuration includes the SLXD2 handheld transmitter featuring an interchangeable microphone capsule design and equipped with a Beta 58A dynamic capsule. The mic’s supercardioid pickup pattern focuses on speech, helping to reduce feedback on loud stages. The lightweight metal transmitter features a selectable 1/10mW RF power output and a transmission range up to 330′. It provides up to 8 hours of operation on two AA batteries or an SB903 rechargeable battery (available separately).
Transparent Digital Sound, Dependable Performance, and More Mics
- The SLX-D delivers 24-bit digital audio with a fast transient response and over 120 dB of dynamic range—resulting in clear, accurate sound.
- The system operates in the G58: 470 to 514 MHz UHF band with a 44 MHz tuning range and 1760 selectable frequencies, far away from potential Wi-Fi interference in the 2.4 GHz band.
- Digital Predictive Switching Diversity uses a microprocessor to switch between the two antennas for the cleanest signal—before dropouts occur.
- With a low latency of 3.2 ms, the system is ideal for events that require live sound reinforcement.
- The SLX-D’s spectrum-efficient digital transmission technology allows for up to 32 mics to be used at once.
- Up to 10 compatible systems per 6 MHz TV band and 12 systems per 8 MHz band are supported.
- Ethernet networking saves you time with coordinated group scanning between multiple receivers from a single location; TCPI command streams from third-party companies such as AMX and Crestron are also supported.

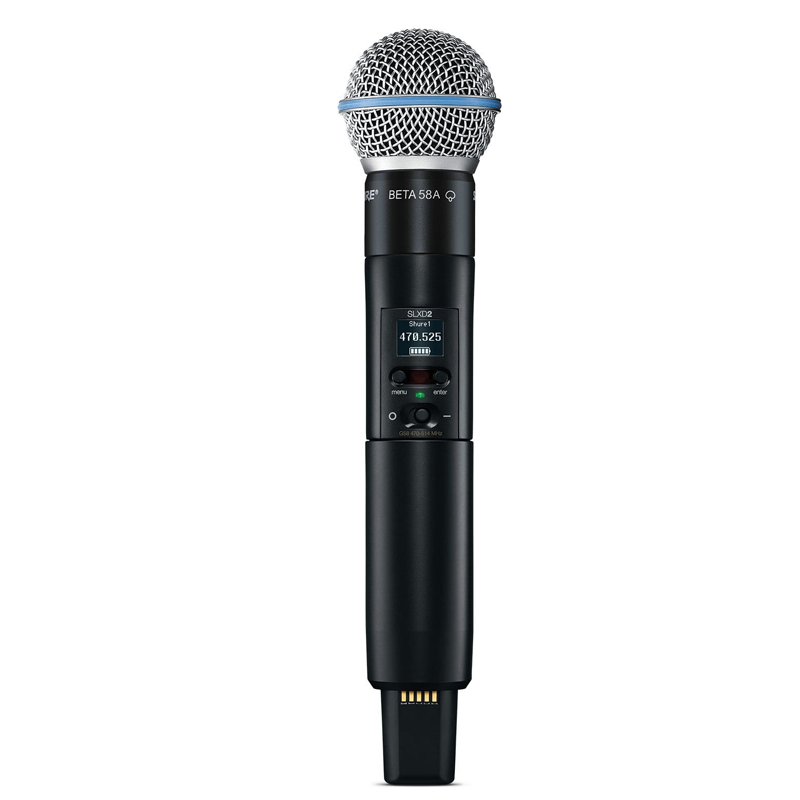

SLXD2 Digital Wireless Handheld Transmitter
Versatile and rugged, the SLXD2 features industry-leading digital wireless technology and design. Sync it easily to the SLXD4 wireless receiver using its IR scan and sync functionality. Choose from a vast selection of interchangeable vocal microphone capsules to perfectly fit your application. Its all-metal construction makes it a hardy component in your audio arsenal.

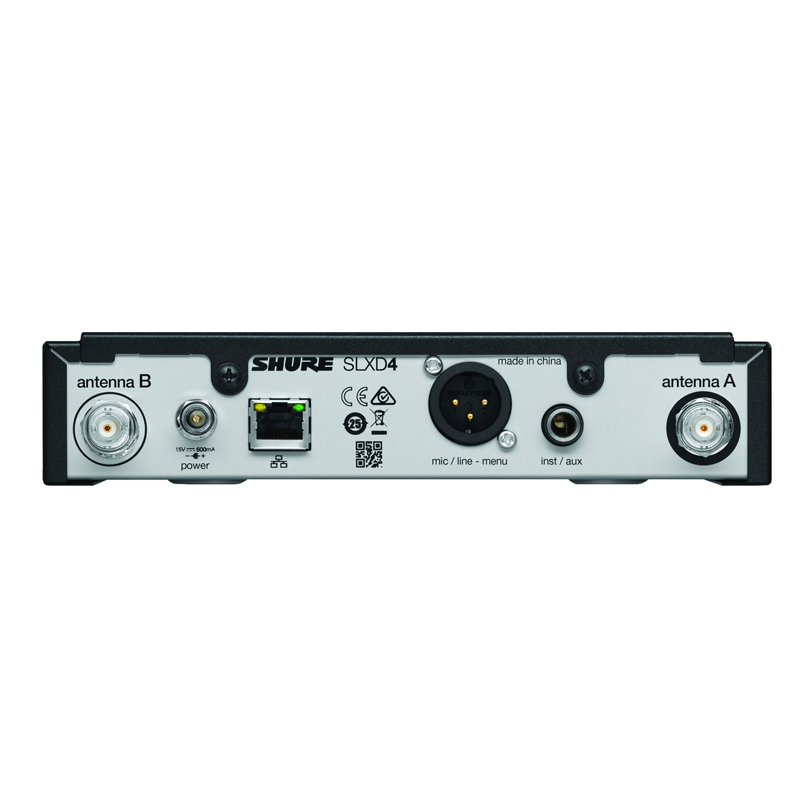

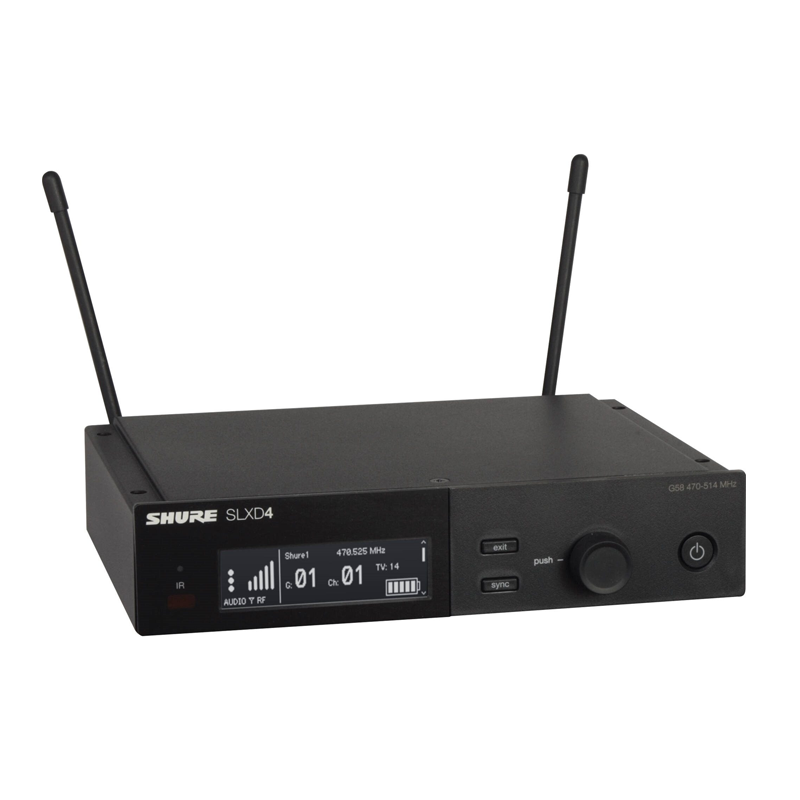

SLXD4 Digital Wireless Receiver
Experience the freedom of wireless performance with the SLXD4. From lecture-hall presentations to worship services to musical concerts, the SLXD4 is the perfect choice for confident, reliable wireless audio, syncing easily to your choice of wireless transmitters. This receiver boasts a rugged, all-metal construction that makes it a durable choice for day-long presentations or all-night performances. Its half-rack size makes it easy to integrate into any preexisting sound setup.
Ready to Rackmount, Easy to Use
- Housed in a tough, half-rack metal chassis with detachable antennas, the SLXD4 receiver is a great fit for A/V installations or as part of a portable rackmount rig—ready to travel to a meeting or event.
- The SLX-D is engineered to provide outstanding sound for small- to medium-sized spaces and facilities—without costly, complicated features required primarily for large venues.
- Intuitive front-panel controls and a high-contrast LCD screen with audio and RF meters makes set up a snap.
- The auto-scan function automatically seeks out the cleanest available frequency for you. The receiver and transmitter then easily link to the same frequency via infrared.
- The receiver offers up to 60 dB of adjustable gain and the display shows you where the ideal level should be.
Specifications
Key Specs
| Wireless Technology | |
| Included Transmitters | |
| Diversity | |
| Max Operating Range | |
| Receiver Type | |
| Microphone Type | |
| Polar Pattern |
System
| Wireless Technology | |
| Number of RF Channel Frequencies | |
| Included Transmitters | |
| Diversity | |
| RF Frequency Band | |
| RF Bandwidth | |
| Frequency Step Size | |
| RF Channel Scanning | |
| Max Operating Range | |
| Max Transmitters per Band | |
| Sample Rate/Resolution | |
| Latency | |
| Dynamic Range | |
| Encryption |
Receiver
| Receiver Type | |
| Mounting Options | |
| Rackmount Size | |
| Antenna | |
| Number of Audio Channels | |
| Audio I/O | |
| Gain Range | |
| Pad | |
| Audio Output Level | |
| Phantom Power Protection | |
| Frequency Response | |
| Network I/O | |
| Network Protocols | |
| Impedance | |
| Adjacent Channel Isolation | |
| Spurious | |
| Power Requirements | |
| AC/DC Power Adapter | |
| AC Input Power | |
| Display & Indicators | |
| Housing | |
| Operating Temperature | |
| Storage Temperature | |
| Dimensions | |
| Weight |
Transmitter
| Transmitter Type | |
| RF Output Power | |
| Audio I/O | |
| Pad | |
| Muting | |
| Audio Input Level | |
| Auto-Level Control | |
| Gain Range | |
| Signal Processing | |
| Frequency Response | |
| Sync Method | |
| Antenna | |
| Power Requirements | |
| Battery Type | |
| Battery Charging Time | |
| Approx. Battery Life | |
| USB/Lightning I/O | |
| Display & Indicators | |
| Housing | |
| Operating Temperature | |
| Storage Temperature | |
| Dimensions | |
| Weight |
Microphone
| Microphone Type | |
| Color | |
| Sound Field | |
| Capsule | |
| Polar Pattern | |
| Frequency Range | |
| Sensitivity | |
| CMRR | |
| Diameter |
