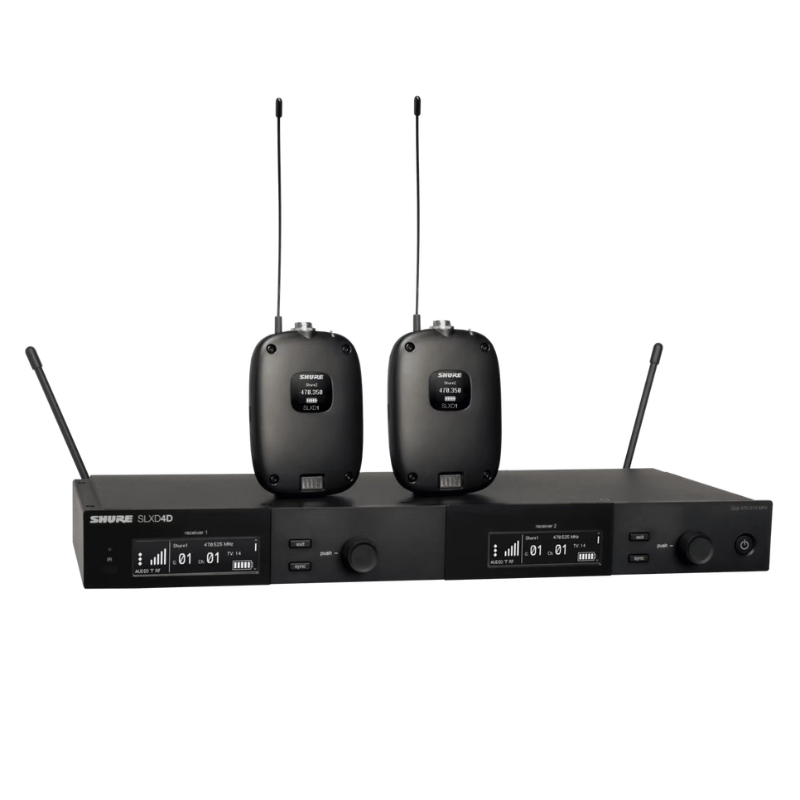

Shure SLXD14D Dual Wireless Bodypack System
Key Features
- For Presenters, Performers, or Musicians
- 2 x Lightweight Bodypack Transmitters
- Dual-Channel Digital-Diversity Receiver
- 1760 Auto-Scan Frequencies
- 1/10mW RF Power
- High-Contrast LCD Screens
- Ethernet for Group Scans & Local Control
- Compatible with 8-Hr Rechargeable SB903
- Expandable to 32 Mic Channels/330′ Range
Description
The SLXD14D Dual Wireless System delivers transparent, 24-bit digital audio and rock-solid RF performance for a wide range of applications, from day-long presentations to nighttime performances. Operate up to 32 compatible systems per 44 MHz band, with easy setup and optional rechargeability accessories for wireless excellence, wherever required. Ships with SLXD4D dual-channel receiver and 2 SLXD1 bodypack transmitters with antenna and rackmount accessories and 4 AA batteries.
Featuring two SLXD1 transmitters, the SLXD4D provides transparent digital audio and rock-solid RF stability for lecture halls and live performances.
Features
The SLX-D operates in the UHF band to transmit high-quality 24-bit digital audio with over 120 dB of dynamic range for crisp, detailed sound. It utilizes Digital Predictive Switching Diversity to protect the transmission from interference and deliver a solid, reliable RF signal without dropouts.
This configuration comes with two bodypack transmitters which feature a selectable 1/10mW RF power output and a transmission range up to 330′. Each provides up to 8 hours of operation on two AA batteries or an SB903 rechargeable battery (available separately). Instrument cables for the transmitters are not included.
The all-metal, rackmount SLXD4D dual-channel receiver features two intuitive LCD interfaces with meters for RF, battery status, and audio outputs. It also offers 60 dB of gain control, and both mic/line XLR and 1/4″ instrument outputs for each channel. Additional features include automatic frequency scanning and IR sync to easily link the transmitter and receiver to the same frequency.
With up to 32 mic channels available at the same time, the SLX-D is ready to expand as your needs grow. What’s more, setting up multiple systems is made fast and easy via the Ethernet port, which links them together for quick, coordinated frequency scans from a single receiver.

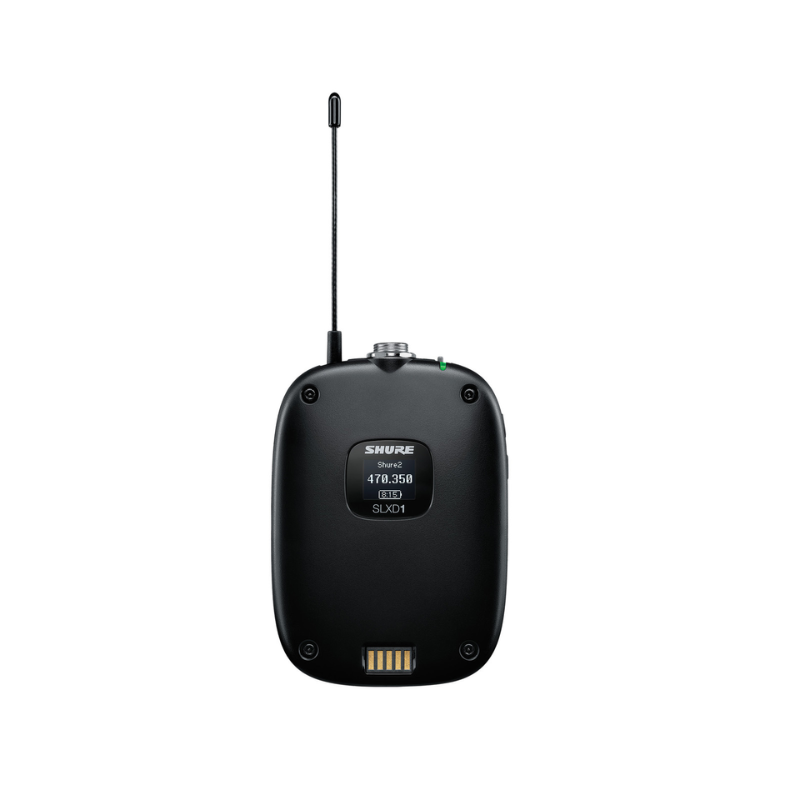

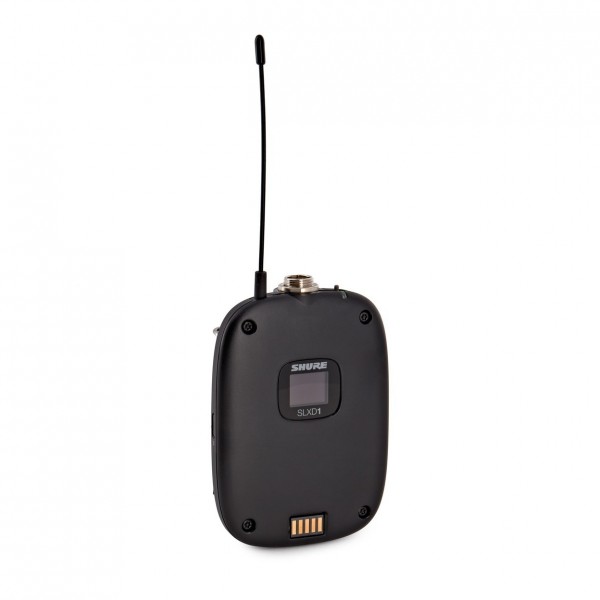

SLXD1 Digital Wireless Bodypack Transmitter
Be confident with your sound, whether you’re presenting in a lecture hall or performing live on-stage. Featuring industry-leading digital wireless technology and design, the SLXD1 easily syncs with a wireless receiver. Choose from an instrument cable or lavalier, headworn, or instrument microphone to complete your setup.
- Transparent 24-bit digital audio
- Extended 20 Hz to 20 kHz frequency range (microphone dependent)
- 118 dB dynamic range
- Digital predictive switching diversity
- Operating range of 100 m (300 ft.)
- 44 MHz tuning bandwidth (region dependent)
- 32 available channels per frequency band (region dependent)
- Up to 10 compatible systems per 6MHz TV band; 12 systems per 8 MHz band
- Easy pairing of transmitters and receivers over IR scan and sync
- Up to 8 hours from 2 AA batteries. Upgrade to the optional Shure SB903 Lithium-ion rechargeable battery to monitor battery charge status in hours and minutes, as well as battery life and health statistics.
- Choice of instrument cable or lavalier, headworn and instrument microphones
- Ergonomic and durable plastic construction

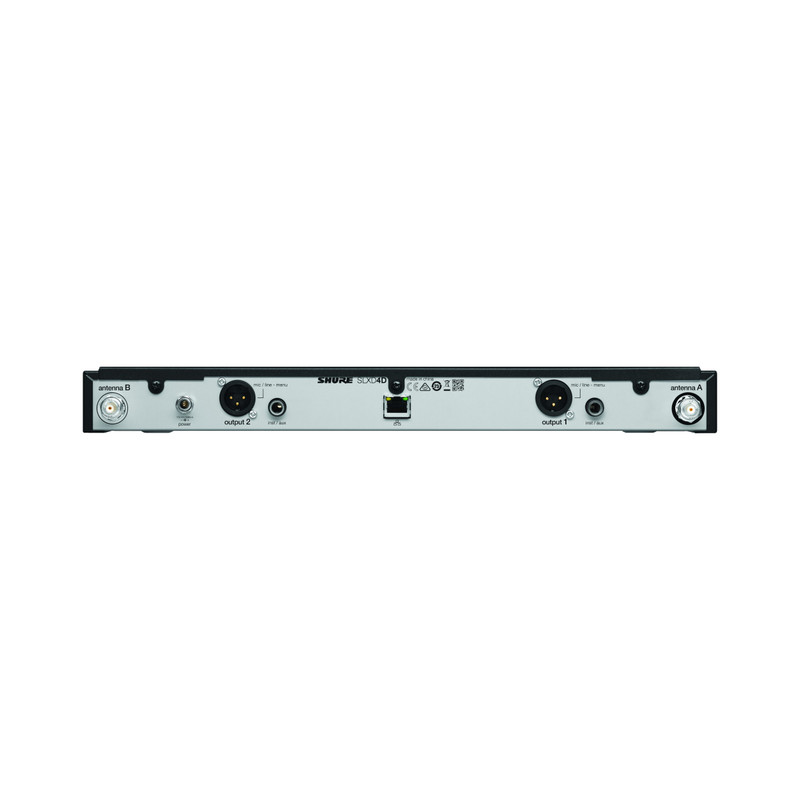

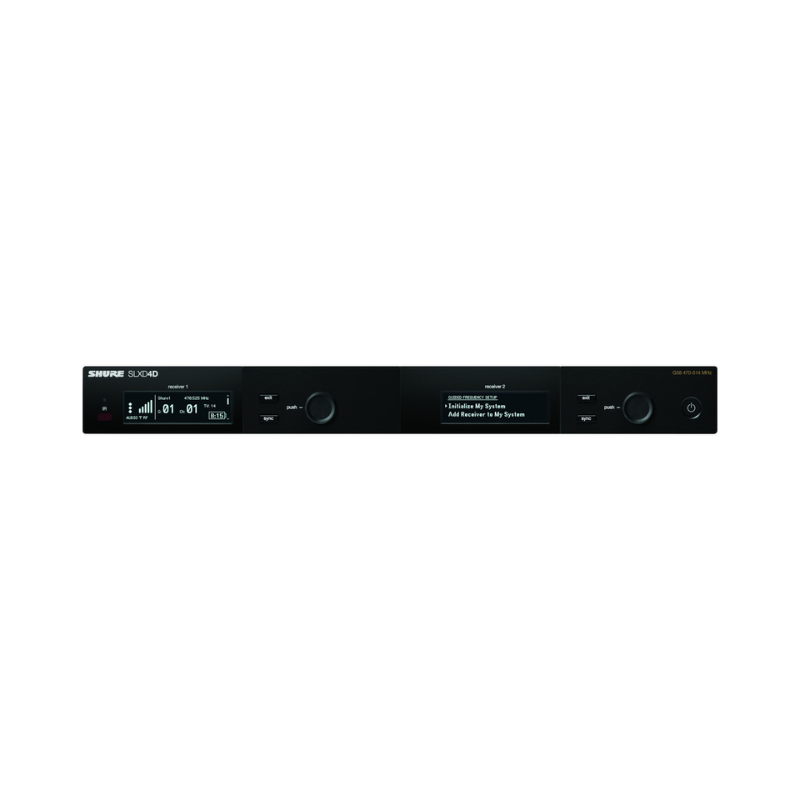

SLXD4 Digital Wireless Receiver
Experience the freedom of wireless performance with the SLXD4. From lecture-hall presentations to worship services to musical concerts, the SLXD4 is the perfect choice for confident, reliable wireless audio, syncing easily to your choice of wireless transmitters. This receiver boasts a rugged, all-metal construction that makes it a durable choice for day-long presentations or all-night performances. Its half-rack size makes it easy to integrate into any preexisting sound setup.
Ready to Rackmount, Easy to Use
- The system includes two rugged, plastic transmitters with belt clips that attach to the talents’ clothing or guitar belts and features LCDs that show essential information.
- Housed in a tough, single-rack metal chassis with detachable antennas, the SLXD4D dual-channel receiver is a great fit for installations or as part of a portable rackmount rig—ready to travel to a show or event.
- The SLX-D is engineered to provide outstanding sound for small- to medium-sized spaces and facilities—without costly, complicated features required primarily for large venues.
- Intuitive front-panel controls and a high-contrast LCD screen with audio and RF meters makes set up a snap.
- The auto-scan function automatically seeks out the cleanest available frequency for you. The receiver and transmitter then easily link to the same frequency via infrared.
- The receiver offers up to 60 dB of adjustable gain and the display shows you where the ideal level should be.
In The Box
- SLXD4D dual-channel receiver x1
- SLXD1 bodypack transmitters x2
- Antenna and rackmount set x1
- AA batteries
Specifications
Key Specs
| Diversity | |
| Max Operating Range | |
| Included Transmitters |
System
| Diversity | |
| RF Frequency Band | |
| Number of RF Channel Frequencies | |
| RF Channel Scanning | |
| Max Operating Range | |
| Max Transmitters per Band | |
| Dynamic Range | |
| Latency |
Receiver
| Number of Audio Channels | |
| Gain Range | |
| Frequency Response | |
| Power Requirements |
Transmitter
| Included Transmitters | |
| RF Output Power | |
| USB/Lightning I/O | |
| Muting | |
| Gain Range | |
| Sync Method | |
| Transmitter Battery Life | |
| Battery Charging Time | |
| AC/DC Power Adapter |
Packaging Info
| Package Weight | |
| Box Dimensions (LxWxH) |
