Shure BLX24/PG58 Wireless Handheld Microphone System

Key Features

  • For Presenters and Performers
  • PG58 Cardioid Mic/Transmitter
  • Single-Channel Tabletop Receiver
  • 123 Auto-Scan Frequencies
  • Internal Antenna Diversity
  • 14-Hr AA Batteries
  • Expandable to 12 Mic Channels/300′ Range
Description

Description

Shure-Logo-01 - Women's Audio Mission

Shure BLX® Wireless Systems combine professional-quality sound with simple setup and an intuitive interface for legendary audio performance right out of the box. Precision-built and available in a variety of configurations, it’s the most accessible way to own the stage.

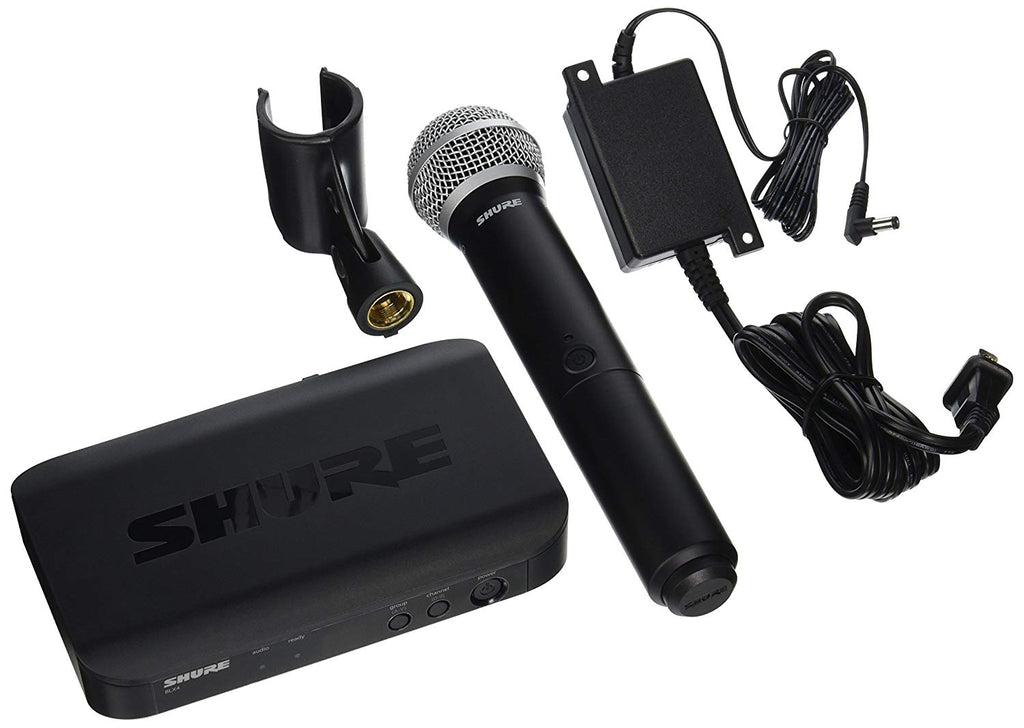

Includes BLX4 single-channel receiver, BLX2/PG58 handheld transmitter, microphone clip, power supply, 2 AA batteries, and user guide.





Features

Shure BLX24/PG58-H9 Wireless Vocal System with PG58 Handheld Microphon – AudioTopia

The BLX24/PG58 also includes a handheld transmitter equipped with an integrated PG58 dynamic cardioid microphone capsule. The receiver features one-touch QuickScan frequency selection to quickly search 123 available frequencies and locate a clean RF channel in case of interference. The system provides up to 14 hours of continuous use with two AA batteries, at a range up to 300′. Up to 12 mic channels can operate simultaneously in each frequency band.

This streamlined system is well suited for live performances and events in small venues, wedding halls, and houses of worship, as well as conference, educational, and corporate facilities.







Shure BLX24/PG58 S8 – Thomann UK

The PG58 Microphone Cartridge

The PG58 dynamic capsule features a cardioid polar pattern that minimizes background noise and feedback. The built-in spherical wind and pop filter reduces plosives for clear and intelligible speech.























Shure BLX24/PG58 S8 Handheld Wireless System - The Guitar Store

Lightweight Handheld Transmitter

The durable BLX2 handheld transmitter offers a lightweight, ergonomic design and is comfortable to hold. Group and channel selection buttons allow for quick and simple frequency matching with the receiver. Other features include an easily accessible on/off button, adjustable gain control, and a black identification cap. The WA621 Color ID Caps kit containing assorted colored caps is available as an optional accessory.



Easy-to-Use Tabletop Receiver for Quality Audio

The BLX4 receiver employs a microprocessor-controlled internal antenna diversity feature to improve the quality and reliability of your wireless audio. An LED display shows group and channel settings, while two LED lights indicate when the system is ready for use and the strength of the incoming audio signal. The unit offers 1/4″ and XLR outputs for connectivity to PA systems and mixing boards.



Shure BLX24 PG58 wireless microphone | Best price





Shure BLX24/PG58 Features

  • System operates up to a range of 300 feet
  • Designed to set up quickly, manage simply, and provide legendary Shure audio quality
  • Transmitters work for up to 14 hours on two AA batteries
  • Runs up to 12 systems per frequency band

In The Box

  • 1 WA371 Swivel Adapter
  • 1 PS24 Power Supply
  • 1 31B1856 Thread Adapter











Specifications

Key Specs

Wireless Technology
Analog UHF
Included Transmitters
1x Handheld
Diversity
Antenna Diversity
Max Operating Range
300′ / 91.4 m (Line of Sight)
Receiver Type
Tabletop
Microphone Type
Handheld Capsule
Polar Pattern
Cardioid

System

Wireless Technology
Analog UHF
Number of RF Channel Frequencies
123
Included Transmitters
1x Handheld
Diversity
Antenna Diversity
RF Frequency Band
H9: 512 to 542 MHz
RF Bandwidth
24 MHz
RF Channel Scanning
Auto-Scan
Max Operating Range
300′ / 91.4 m (Line of Sight)
Max Transmitters per Band
12
Built-In Recorder
No
Timecode Support
No
Mobile App Compatible
No
Dynamic Range
100 dBA

Receiver

Receiver Type
Tabletop
Antenna
2x Internal
Number of Audio Channels
1
Audio I/O
1x XLR 3-Pin Male Balanced Output
1x 1/4″ TS Female Unbalanced Output
Audio Output Level
XLR Output:
-27 dBV (Mic Level)
1/4″ Output:
-13 dBV (Instrument Level)
Frequency Response
50 Hz to 15 kHz (Dependent on Mic)
Impedance
XLR Output:
200 Ohms
1/4″ Output:
50 Ohms
Power Requirements
AC/DC Power Adapter
AC/DC Power Adapter
12 to 15 VDC at 160 mA, Center-Positive (Included)
Input Power
100 to 240 VAC, 50 / 60 Hz
DC Input Power
12 to 15 VDC at 160mA
AC Input Power
100 to 240 VAC, 50 / 60 Hz
Display & Indicators
1x Multi-Segment LED (Channel, Group)
2x LED (AF Level, Sync)
Housing
ABS
Operating Temperature
0 to 135°F / -17 to 57°C
Dimensions
7.4 x 1.6 x 4.1″ / 188 x 40 x 103 mm
Weight
8.5 oz / 241 g

Transmitter

Transmitter Type
Handheld
RF Output Power
10 mW
Audio I/O
No
Muting
Off/On Switch
Auto-Level Control
No
Gain Range
-20 to -10 dB
Sync Method
Manual
Antenna
1x Internal (Handheld)
Power Requirements
Battery
Battery Type
2x AA (Included)
Approx. Battery Life
14 Hours (Alkaline)
Display & Indicators
1x Multi-Segment LED (Channel, Group)
1x LED (Battery Status, Power)
Housing
ABS
Dimensions
2.5 x 4.3 x 0.8″ / 64 x 110 x 21 mm
Weight
7.7 oz / 218 g (without Batteries)

Microphone

Microphone Type
Handheld Capsule
Color
Black
Sound Field
Mono
Capsule
Dynamic
Polar Pattern
Cardioid
Frequency Range
50 Hz to 16 kHz
Sensitivity
-55 dBV/Pa at 1 kHz
