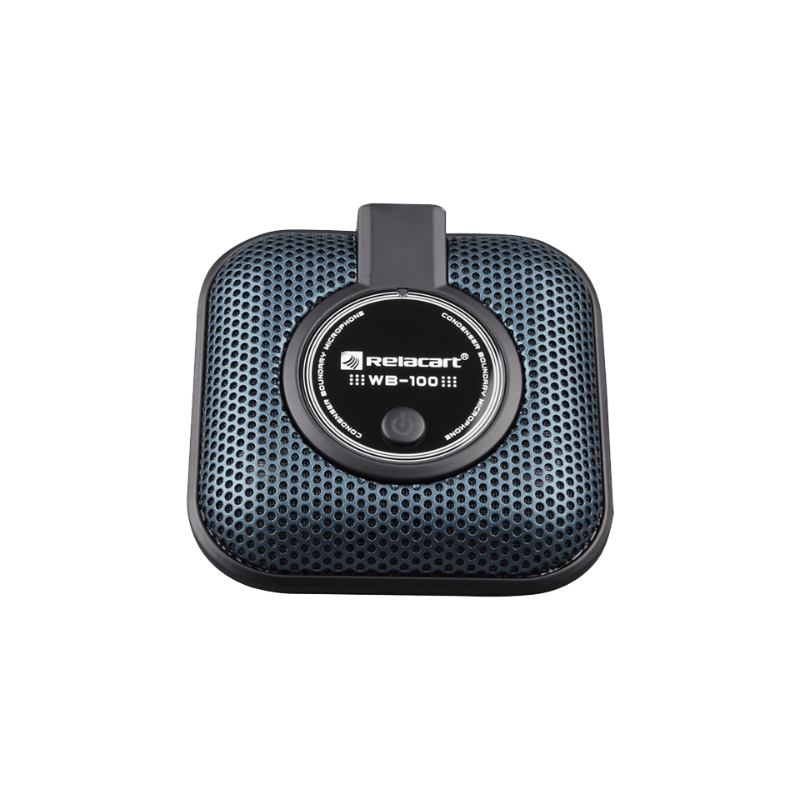

Relacart WB-100 Boundary Microphone
Description
Description
WB-100 is a wide frequency response condenser cardioid boundary microphone, designed for flat placement applications, providing high-quality sound pickup, conference, professional recording, TV broadcasting and other high-demand pickup applications.- Frequency Response: 50-17,000 Hz
- High Pass Filter: 80 Hz, 18 dB/octave
- Sensitivity: -36 dB (15 mV) at 1V at 1 Pa
Features
Specifications
| Components | Fixed charging backplane, permanent polar condenser microphone head |
|---|---|
| Directivity | Semi-cardioid unidirectional (120° pickup angle) |
| Frequency Response | 50-17,000 Hz |
| High Pass Filter | 80 Hz, 18 dB/octave |
| Sensitivity | -36 dB (15 mV) at 1V at 1 Pa |
| Output Impedance | 200 ohms |
| Fantasy Power Supply | DC24-52V |
| Power Consumption | 5mA typical |
