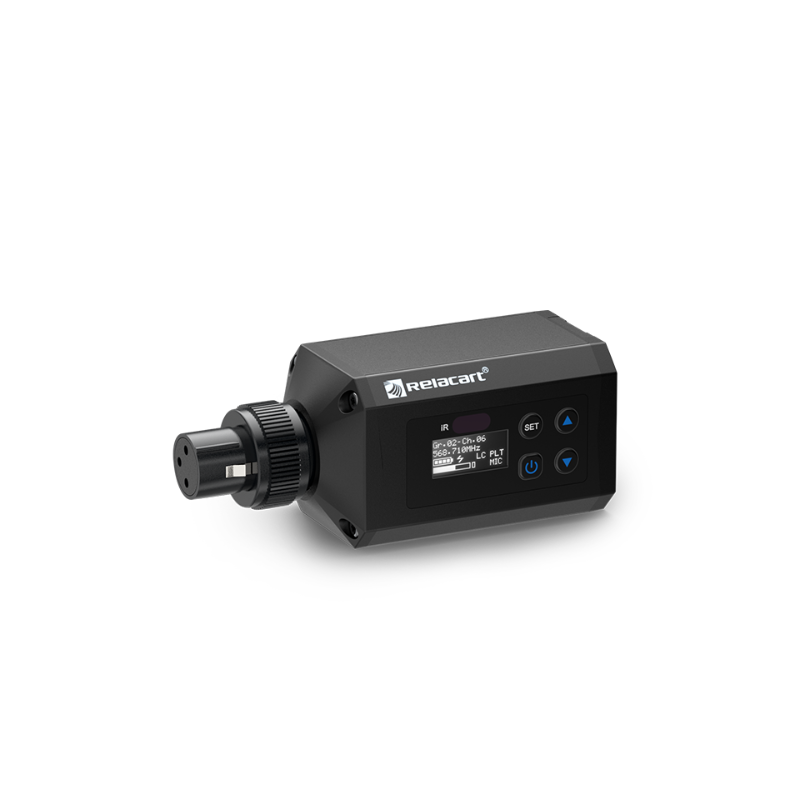

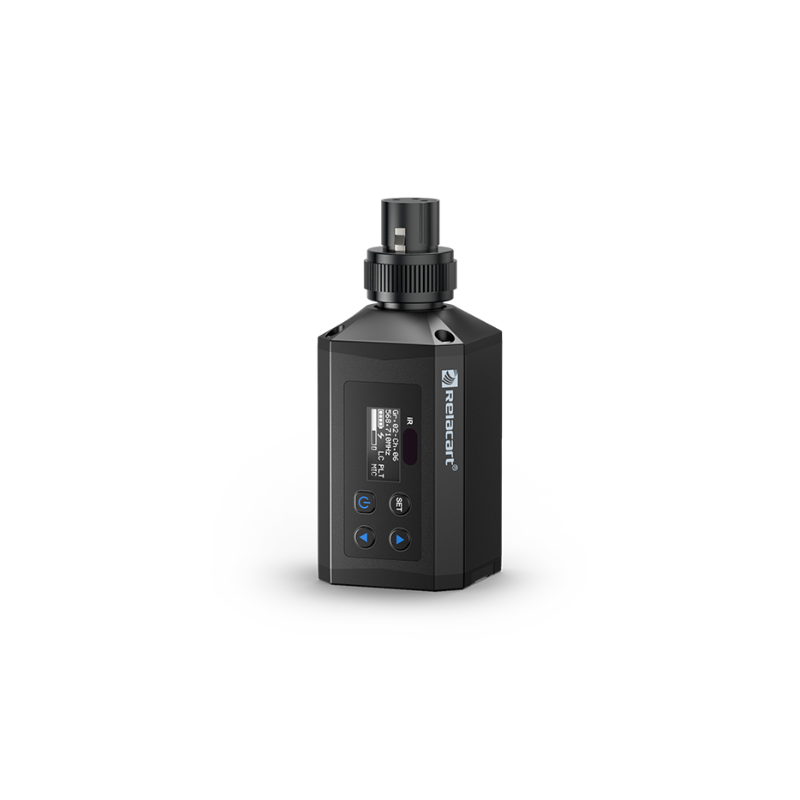

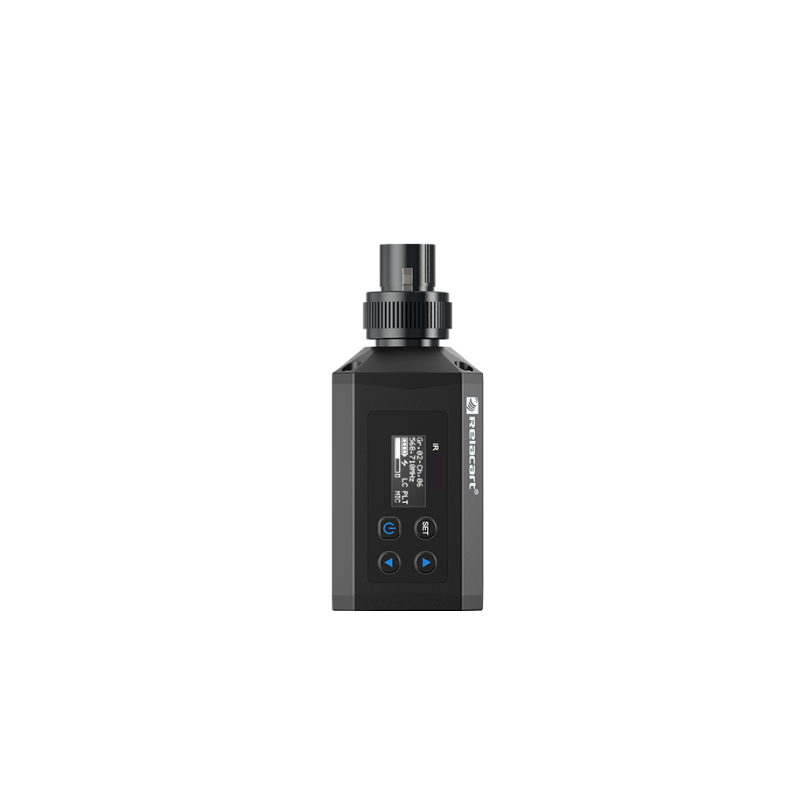

Relacart UP-2 Wireless plug-on transmitter
Description
Description
Features
Specifications
| Carrier bandwidth | 521.25MHz-936.85MHz |
|---|---|
| Oscillation mode | PLL frequency synthesis |
| Transmission power | 13.5 dBm |
| Carrier error | 0.005% |
| Power supply mode | AA 1.5V x2 |
| Nominal/maximum frequency deviation | ± 65KHz |
| Frequency setting | manual key setting or infrared transmission |
| Input gain adjustment range | 4-stage adjustable setting, step by step every 3dB |
| Harmonic radiation | – 32dBm |
| Modulation mode | FSK |
| Maximum input level | 250mV |
| Input impedance | 2.2K Ω |
| Battery life | 1-2 hours |
| Normal working current | 130mA |
| Overall dimensions | 110 x 42 x42 (mm) |
| Net weight (excluding battery) | 125g |
