Relacart TSG-550 Professional Desk Microphone
Description
Description

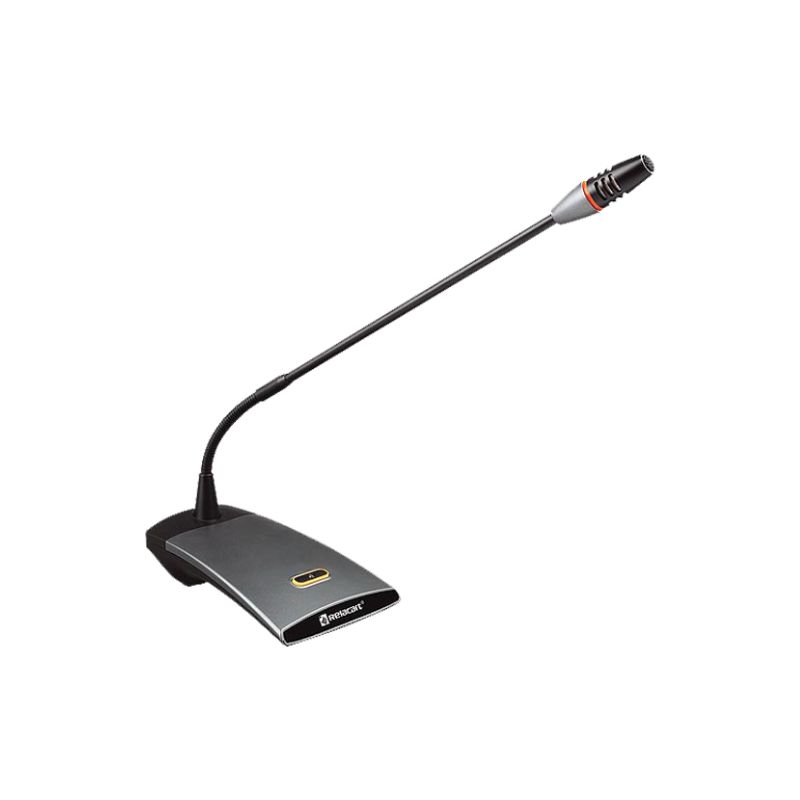

The TSG-550 is a wired gooseneck conference microphone installed on the desktop. It uses a 48V phantom power supply and has strong compatibility. Capacitive cardioid directional pickup with wide frequency response provides clear and smooth high fidelity sound quality.
- Frequency Response: 45Hz-18KHz
- Sensitivity: -32dB at 1V at 1Pa
- Signal-to-noise ratio: >70dB, 1KHz at 1Pa
Features
Specifications
| Microphone Type | Condenser Cardioid |
|---|---|
| Sensitivity | 32dB at 1V at 1Pa |
| Frequency Response | 45Hz-18KHz |
| Impedance | 250 ohms |
| Maximum Input Sound Pressure Level | 125dB, 1KHz at 1% T.H.D. |
| Dynamic Range (Typical) | 105dB, 1KHz at maximum sound pressure |
| Signal-To-Noise Ratio | >70dB, 1KHz at 1Pa |
| Switch | On/Mute |
| Power Supply | DC11-52V Phantom power supply, power consumption 5mA (typical) |
| Working Temperature | -20℃～45℃ |
| Output Connector | Built-in 3-pin aviation socket |
| Microphone Length | 395mm |
| Base Size (mm) | 150(L) × 105(W) × 43(H) |
| Weight | 820g |
