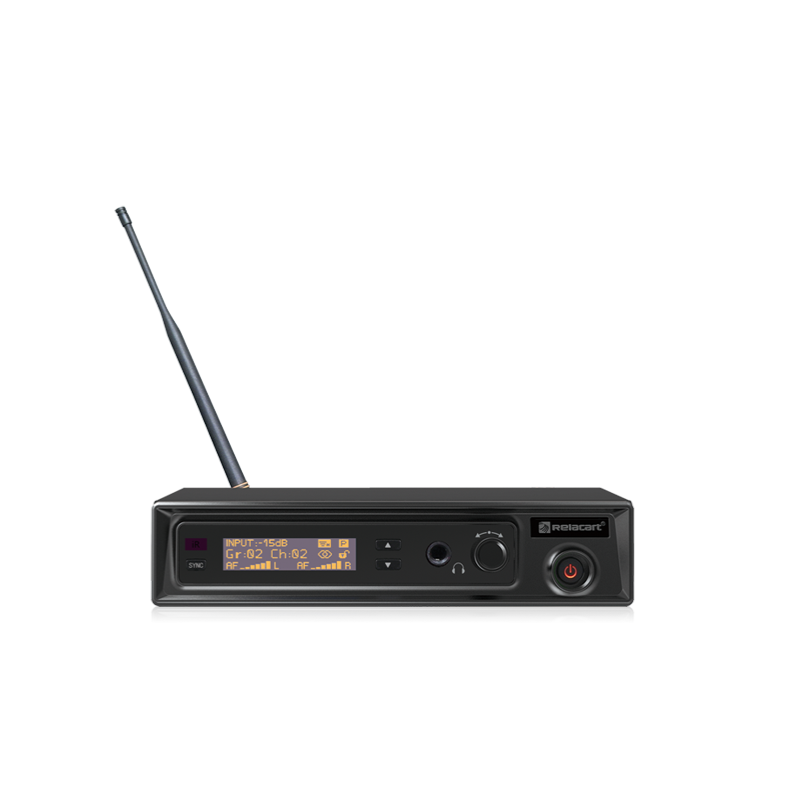

Relacart PM-320 Transmitter
Key Features:
- International EIA standard chassis
- Long distance audio transmission
- Ultra Wide Spread Spectrum
- UHF wireless receiving frequency band
- Audio monitoring
- PLL phase locked oscillation circuit
Description
Description
PM-320 is a wireless monitoring system for stage performances and audio broadcasting, and a wireless listening system for large simultaneous interpretation conferences. High-fidelity sound, advanced electronic processing technology instead of the traditional complicated and heavy monitoring equipment, eliminate the howling from the monitoring equipment, and make the performance reliable and perfect.
Features
Functional Features:
| International EIA standard chassis | 1/2 EIA standard 1U chassis made of metal |
|---|---|
| Long distance audio transmission | It has a long transmission distance and is suitable for various occasions. |
| Ultra Wide Spread Spectrum | The bandwidth is 32MHz, with 1280 adjustable frequencies. Channel groups 1-10 are factory preset with up to 180 fixed frequencies. Channel groups U1-U5 can freely set and save frequencies. |
| UHF wireless receiving frequency band | The receiver adopts the UHF frequency band, and the CPU controls the diversity reception to reduce dead spots and ensure stable reception. |
| Audio monitoring | Has a headphone monitor output. |
| PLL phase locked oscillation circuit | Stable PLL phase-locked oscillator circuit, combined with the “noise detection” mute control function, can effectively block the noise and radio frequency interference in the working environment. |
Specifications
| Chassis specification | 1/2 EIA standard 1U |
|---|---|
| Carrier frequency band | 554MHz~936 MHz |
| Maximum deviation | ± 50KHz |
| Number of channel groups | Single Channel |
| Modulation mode | FM MPX (stereo) |
| Comprehensive S/N ratio | >100dB |
| Comprehensive T.H.D | <0.9% @ 1KHz |
| Band width | 32MHz |
| Comprehensive frequency response | 25Hz-15KHz ± 3dB |
| Output power | 10mW |
| Current consumption | 140mA (Typical) |
| Power supply mode | DC 12V |
| Frequency stability | ± 0.005% (0~50 ° C) |
| Oscillation mode | PLL phase locked frequency synthesis |
| Harmonic radiation | More than 60dB lower than the main wave |

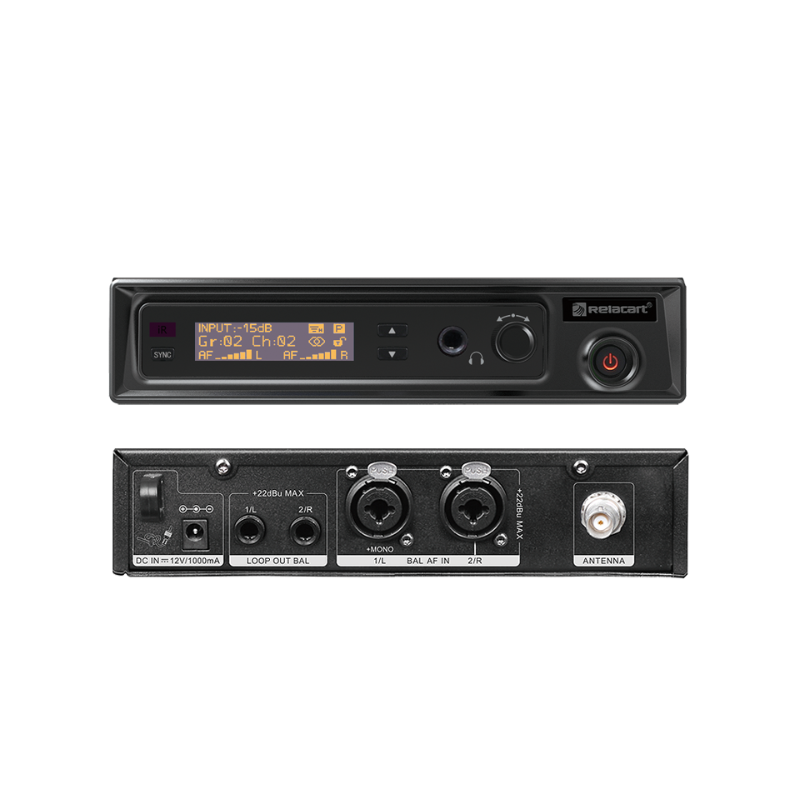

| Audio output | φ 6.3mm balanced socket x2 |
| MPX control tone | Frequency: 19KHz, deviation: ± 5KHz |
| Audio input | Line level x 2, XLR and φ 6.3mm co composite socket |
| Size | 200mm (W) x 44mm (H) x 199mm (D) |
| Weight | About 955g |
