Description
FEATURES
Time to upscale your display
Samsung’s new QHR series displays cut through the clutter to deliver best-in-class UHD resolution as well as intelligent UHD upscaling and rich flawless colors with Dynamic Crystal Color all in a slim design.
Incredible 4K picture quality
Samsung’s new QHR series provides ultra high-definition 4K resolution, creating lifelike images with sharper picture quality than ever before.
Crystal Processor 4K
Intelligent UHD upscaling technology, made possibly by Samsung’s Crystal Processor 4K, allows content developed at a lower resolution to be elevated to UHD-level quality. It also performs edge restoration and noise reduction to optimize on-screen text and imagery.
Dynamic Crystal Display
The QHR series features Dynamic Crystal Display, using 10 bit processing for flawless color expression, allowing viewers to enjoy a wider spectrum of colors up to one billion shades. HDR+ compatibility converts standard definition content to HDR quality for sharper contrast and more vivid colors.
Perfect view with non-glare display
The QHR series features reliable, non-glare panels that provide better visibility from all angles, anytime of day allowing businesses to deliver accurate information 24/7 in locations where clear and accurate information is crucial such as airports and commuter stations.

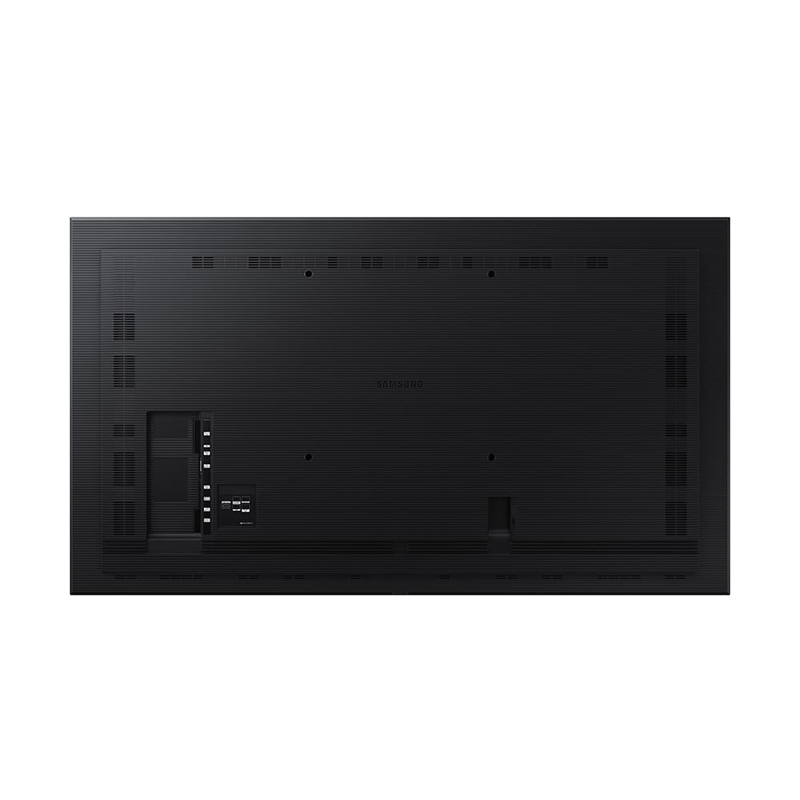

Slim and symmetrical design
The QHR series features an all-new symmetric design simplifying wall mounting and ensuring installation is seamless. The flat back and slim depth will ensure a display that will stand the test of time.
Clean cable management
With QHR’s new cable guide feature, retailers are able to tuck away messy cables from view. This allows for a clean and visually-appealing shopping expeience for customers, even when the back of the display is visible.
Powerful, all-in-one solution
SSSP is an all-in-one solution that simplifies installation and maintenance. With Tizen 4.0, businesses can enjoy easy development, reinforced capability with multiple web formats and standards and secured protection.
Samsung Workspace secured by Knox
With security provided by Knox, the displays feature Samsung Workspace which supports wireless cloud service access and control of a PC without needing a physical connection. Samsung Workspace simplifies meeting spaces while also improving security.
WiFi and Bluetooth built-in
Built-in WiFi and Bluetooth allow for more personalized and interactive services as well as simplifying how businesses showcase content. Whether it’s to make networking simpler or enabling interactive beacon technology in-store, QHR series displays help businesses move into the future of retail.
Industry standard certified
The QHR series guarantees dependable functionality and is environmentally sustainable. Electromagnetic compatibility (EMC) class B compliant, meeting strict safety and reliability standards for operation, the displays are also registered by EPEAT, the global ecolabel for IT.
Spesifications
Panel
Diagonal Size
43″
Type
Edge LED BLU
Resolution
3840*2160 (4K UHD)
Pixel Pitch(mm)
0.2451 x 0.2451
Active Display Area(mm)
941.184 (H) x 529.416 (V)
Brightness(Typ.)
700 nit
Contrast Ratio
4000:1
Viewing Angle(H/V)
178/178
Response Time(G-to-G)
8ms(Typ.)
Display Colors
16.7M(True Display) 1.07B(Ditherd 10bit)
Color Gamut
92% (DCI-P3, CIE 1976)
Operation Hour
24/7
Haze
44%
Displays
Dynamic C/R
MEGA
H-Scanning Frequency
30 ~ 81kHZ
V-Scanning Frequency
48 ~ 75HZ
Maximum Pixel Frequency
594MHz
Connectivity
Input
RGB
DVI-D, Display Port 1.2 (1)
Video
HDMI 2.0 (2)
HDCP
HDCP2.2
Audio
Stereo mini Jack, HDMI
USB
USB 2.0 x 2
Output
RGB
HDMI 2.0 (Loop-out)
Audio
Stereo mini Jack
External Control
RS232C(in/out) thru stereo jack, RJ45
External Sensor
IR
Power
Type
Internal
Power Supply
AC 100 – 240 V~ (+/- 10 %), 50/60 Hz
Power Consumption
Max[W/h]
138
Typical[W/h]
96
Rating[W/h]
125
BTU(Max)
470.6
Sleep mode
0.5
Mechanical Specification
Dimension (mm)
Set
967.5 x 557.7 x 48.3
Package
1095 x 676 x 151
Weight (kg)
Set
10
Package
13.3
VESA Mount (mm)
200 X 200
Stand Type
Foot Stand (Optional)
Bezel Width (mm)
9.2mm(U/L/R), 11.2mm(B)
Internal Player
Processor
Cortex A72 1.7GHz Quad-Core CPU
On-Chip Cache Memory
L1 Instruction Cache : 48KB
L1 Data Cache : 32KB
L2 Cache : 2MB
Clock Speed
1.7GHz
Main Memory Interface
2.5GB LPDDR4 1.5GHz 64bit
Graphics
Graphic resolution : 1920×1080
Output resolution : 3840×2160 (Scale up from graphic processing result.)
Storage (FDM)
8GB (3.88GB Occupied by O/S, 4.12GB Available)
Multimedia
*Video Decoder : MPEG-1/2/4, H.263, H.264/AVC, UHD H.264/AVC, VC-1, AVS+, HEVC, JPEG, PNG, VP8, VP9 *Audio Decoder : AC3 (DD), MPEG
IO Ports
USB 2.0
Operating System
Tizen 4.0 (VDLinux)
Sound
Speaker Type
Built in Speaker(10W + 10W)
Operation
Operating Temperature
0 ℃ ~ 40 ℃
Humidity
10 % ~ 80 %
Feature
Key Features
UHD Signage Display Slim & Light Signage with Built-in MagicInfo S6, SSSP 6.0
Orientation
N/A
Remote Control
N/A
Special Features
H/W : Temperature Sensor,Pivot Display, Clock Battery(168hrs Clock Keeping), Built in Speaker(10W 2ch), Video Wall Daisy Chain(HDCP2.2:4EA,HDCP1.4:7EA), IP5x Rating, Wi-Fi/BT S/W: Auto Source Switching & Recovery, LFD Home UI, Button Lock, Hot key option, Plug&Play (Initial Setting)
Certification
Safety
60950-1
EMC
Class B
Accessory
Included
Quick Setup Guide, Warranty Card, Power Cord, Remote Controller, Batteries
Optional
Stand
STN-L4355F
Mount
WMN4070SE
Specialty
CML400XK
Media Player
Media Player
N/A
