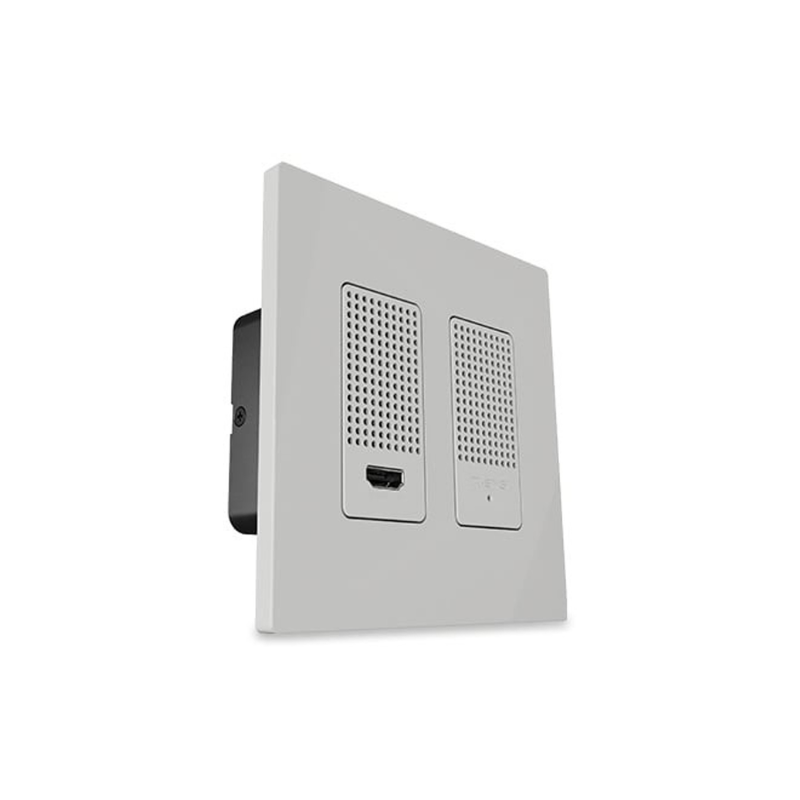

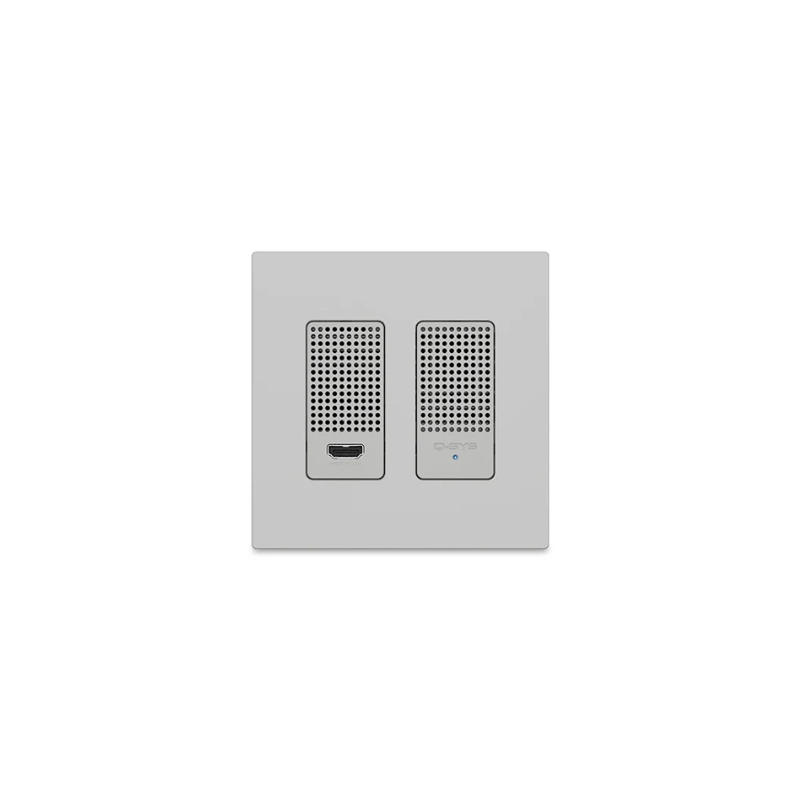

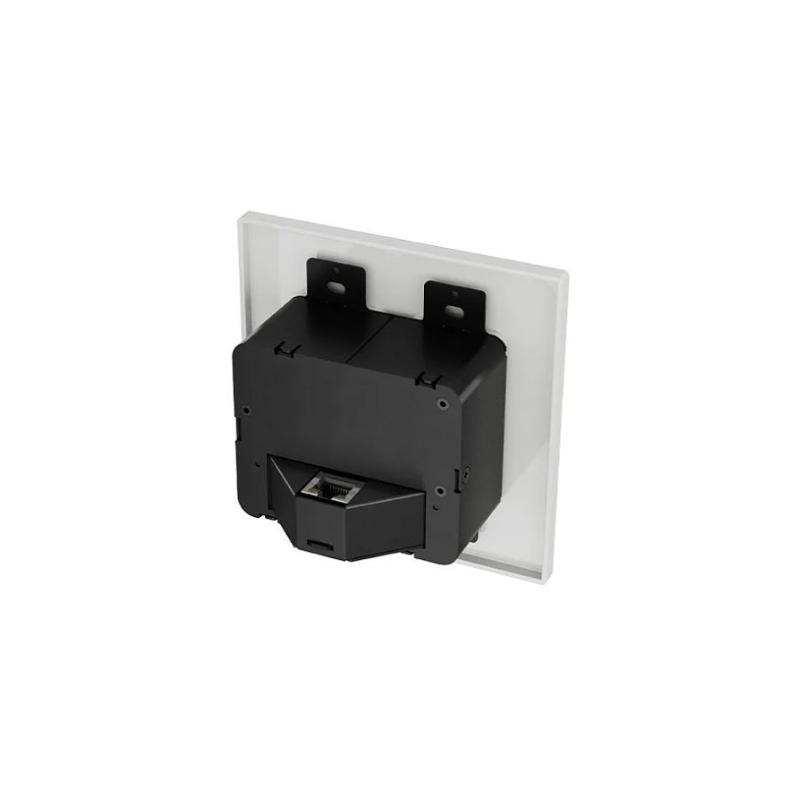

Q-SYS NV-1-H-WE HDMI Wallplate Encoder
Key Features
• Single-channel HDMI wallplate encoder
• Native HDMI video and audio distribution for Q-SYS
• Q-SYS Shift™ adaptive video compression
Description
The Q-SYS NV Series NV-1-H-WE is a single-channel HDMI wallplate encoder optimized for spaces where traditional rack-mount enclosures are not ideal, including flexible and divisible spaces or spaces with reconfigurable furniture. As a native Q-SYS peripheral, the NV-1-H-WE seamlessly integrates into your Q-SYS system, enabling no-code deployments and intelligent automation.
Features
Flexible and Scalable
NV-1-H-WE extends the Q-SYS NV Series portfolio to enable designers to customize and optimize their systems by mixing and matching endpoints to tailor their video distribution solutions based on connectivity requirements, I/O density and physical form factor.
Q-SYS Shift™
NV Series distributes visually lossless, low-latency video signals of up to 4K60 4:4:4 throughout your Q-SYS system using Q-SYS Shift™. This adaptive codec efficiently manages network bitrate by refreshing only the changes between frames, significantly reducing bandwidth without compromising quality or latency.
Designed For Q-SYS
Q-SYS NV Series network video endpoints are native to Q-SYS, which is powered by the Q-SYS OS; this software foundation manages NV Series end points and all other Q-SYS Products from a single application. The Q-SYS Platform’s modern IT architecture and development tools enable an entire ecosystem of third-party integrations developed by approved Q-SYS Partners and a worldwide community of developers using the available tools found in Q-SYS Open.
Specifications
Video I/O |
|||
| HDMI 2.0 input | 1x HDMI 2.0, capable of receiving input video formats up to 4K60 4:4:4 Support for HDCP 2.3 and HDCP 1.4 | ||
Audio I/O |
|||
| HDMI input | 8-channel PCM audio, Q-SYS routable | ||
Other Connectors |
|||
| LAN | 1000BASE-T, 2.5GBASE-T compliant | ||
| Power over Ethernet | 802.3at Type 2 Class 4 (30W from PSE, 25.5W at NV-1-H-WE) | ||
General |
|||
| Dimensions | 4.06 x 3.43 x 2.64 in (103 x 87 x 67 mm) |
||
| Weight | 0.84 lbs / 0.38 kg | ||
| Mounting options | See User Manual | ||
