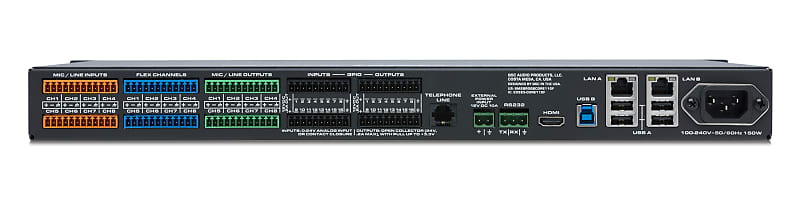

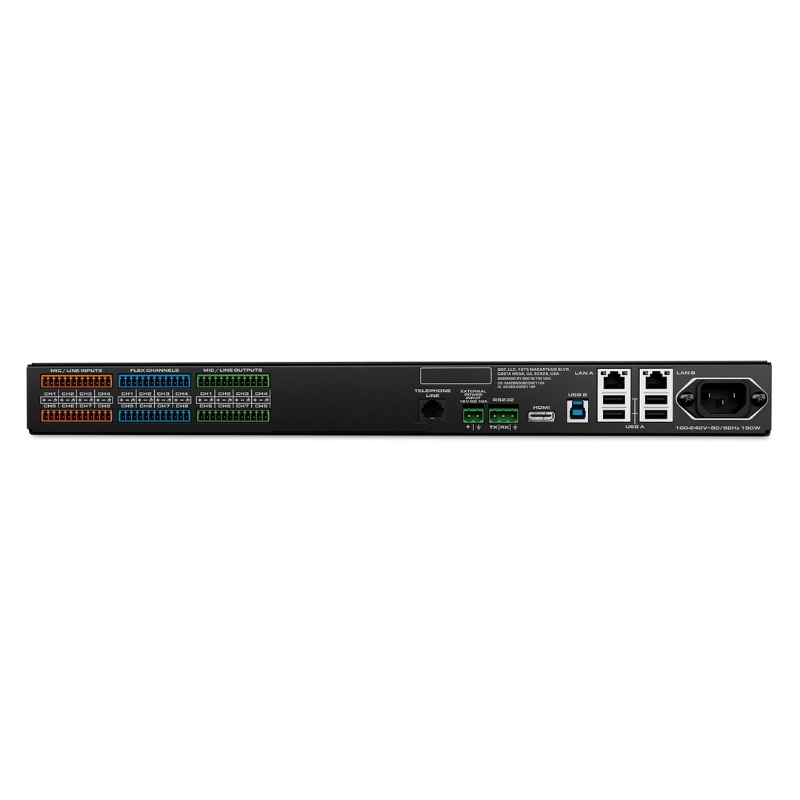

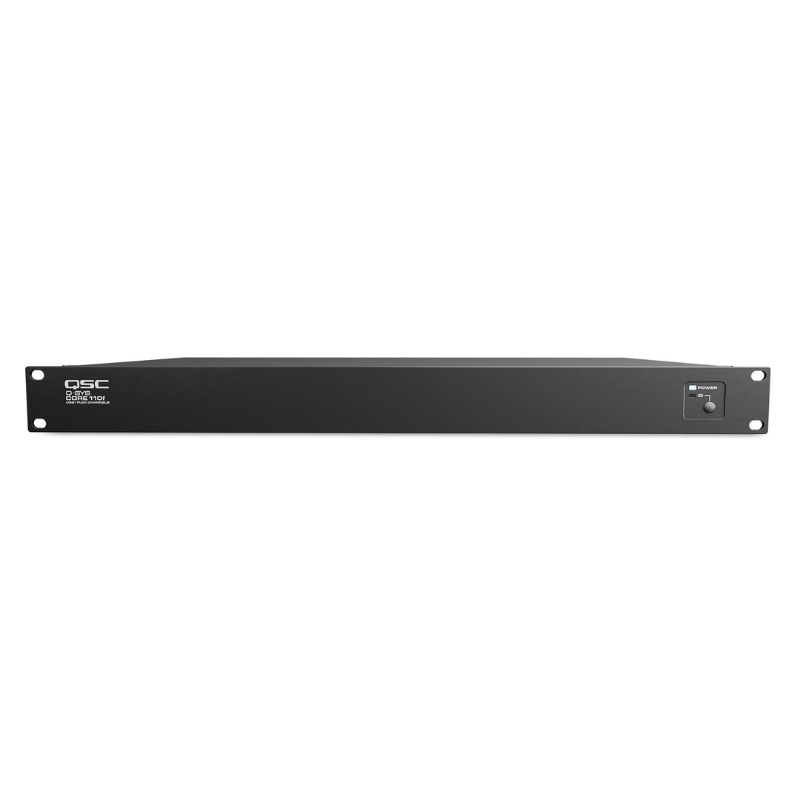

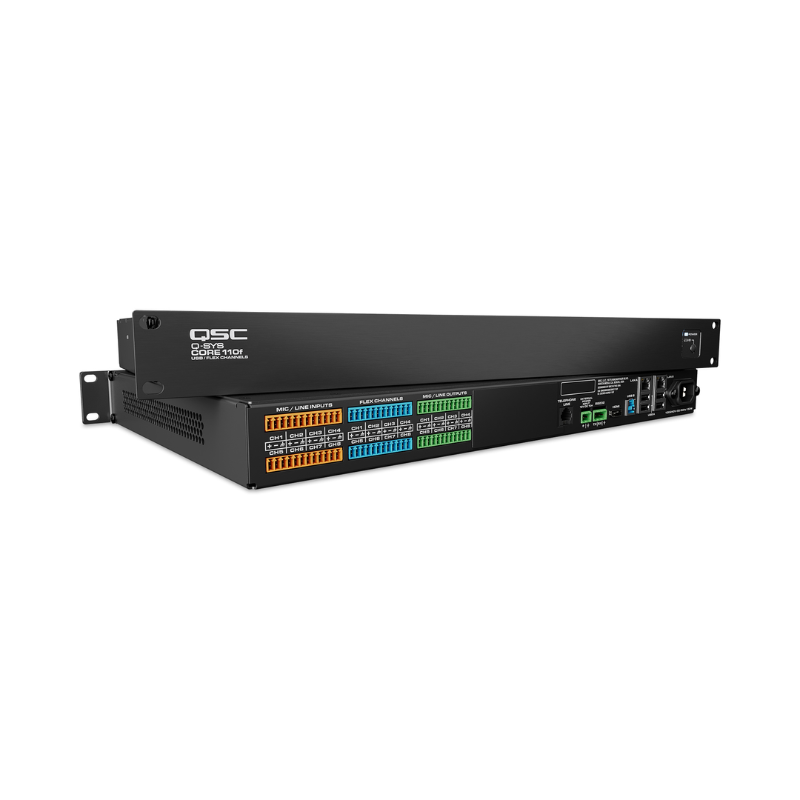

Q-SYS CORE 110f-v2 Network + Analog I/O Processor
Key Features
- 128 networked audio channels (Q-LAN / AES67)
- 24 channels of analog I/O, including 8 configurable Flex channels
- 16x AEC processors
- Up to 32 x 32 Dante audio channels (8 x 8 included)
- USB AV bridging (16 x 16 audio + Q-SYS camera support)
- Full-featured Q-SYS Control engine (with optional feature license)
- External USB audio device host
- Up to 4x VoIP instances
Description
The Q-SYS™ Core 110f processor provides a solution for small, single room projects up to the largest Enterprise scale deployments. Q-SYS is a cloudmanageable audio, video, and control platform that provides the system integrator and end-user a unified software design tool and feature set suitable for projects of any scale. The continuity of Q-SYS is unique within the competitor space and allows the Q-SYS Core 110f to leverage all the features that are available across the entire Q-SYS Platform to be used in the following applications: video conference bridging, Acoustic Echo Canceling (AEC) and sound reinforcement in small to large meeting or multipurpose rooms, sound reinforcement in performance venues such as house of worship and theater, background music systems, wide area paging in airports, convention centers and hospitals
The Q-SYS™ Core 110f v2 processor provides a fully integrated audio, video and control solution for installations with a mixture of analog and network channels, supporting medium-sized rooms through the largest Enterprise scale deployments.
Features
Class leading I/O
Q-SYS Core 110f has 24 analog I/O + USB, POTS and VoIP simultaneously in a single rack space and one SKU, offering the best cost to I/O ratio in a single chassis product available on the market from any manufacturer.
8 Flex Channels
Nearly all the flexibility of a card-based DSP solution without the hassle of multiple SKU’s and custom ordering.
Extend your network I/O connectivity with QIO Series
QIO Series lets you quickly add network I/O connectivity to your Q-SYS systems where it’s most convenient. Each of the six models supports a different, specific connectivity type, from mic/line audio I/O to control (IR, Serial, or GPIO).
True IT Software Integration
The Q-SYS Operating System is a true IT integrative solution that is free of the fixed hardware limitations seen in competing products. It allows for greater functionality such as Layer 3 routing, LDAP contact server integration, SNMP monitoring, as well as the latest software-based security for your AV system like cryptographically signed firmware updates, encrypted data transport and storage.
Suite of Software-Based Conferencing Technology applications
Built by Q-SYS from the ground up allowing for continued refinement, without any additional hardware. The suite includes next generation acoustic echo cancellation (AEC), multiple-instance SIP softphones, gain sharing, gating automixers and role-based access controls.
Unified Software Platform
The integrator has a single training investment in one software design tool rather than needing to learn several platforms to scale from small to large systems.
Specifications
Input Frequency Response |
|
| 20Hz to 20kHz @ +21dBu | +0.05dB/-0.5dB |
Input THD+N @ 1KHz |
|
| @ +21 dBu Sensistivity & +21 dBu input | < 0.1% |
| @ +21 dBu Sensistivity & +10 dBu input | < 0.0015% |
| @ +10 dBu Sensistivity & +8 dBu input | < 0.0007% |
| @ -10 dBu Sensistivity & -10.5 dBu input | < 0.0006% |
| @ -39 dBu Sensistivity & -39.5 dBu input | < 0.007% |
| EIN (no weighting, 20Hz to 20kHz) | < -121dB |
| Input to Input Crosstalk @1kHz | >110dB Typical, 90dB Max |
Input Dynamic Range |
|
| @ +21 dBu Sensitivity | > 109.5dB |
| @ +10 dBu Sensitivity | > 106.4dB |
| @ -10 dBu Sensitivity | > 104.6dB |
| @ -39 dBu Sensitivity | > 104.6dB |
Input Common Mode Noise Rejection |
|
| @ +21 dBu Sensitivity | |
| @ +10 dBu Sensitivity | 56.5 |
| @ -10 dBu Sensitivity | 73.2 |
| @ -39 dBu Sensitivity | 63.2 |
| Input Impedance (balanced) | 5K Ohms Nominal |
| Input Sensitivity Range (1dB Steps) | -39 dBu min to +21 dBu max |
| Phantom Power | +48v DC, 10mA per input max |
| Sampling Rate | 48kHz |
| A/D – D/A Converters | 24-bit |
| Overall Dimensions/Weight | Device Height: 44 mm (1.75 in) Device Width: 483 mm (19 in) Device Depth: 282.5 mm (11.12 in) Device Weight: 5 kg (11 lb) Shipping Height: 152 mm (6 in) Shipping Width: 584 mm (23 in) Shipping Depth: 356 mm (14 in) Shipping Weight: 5.6 kg (12.4 lb) |
Output Frequency Response |
|
| 20Hz to 20kHz @ all settings | +0.2/-0.5 dB |
| Output THD | 0.003%, +10 dBu Max output level |
| Output Crosstalk @1khZ | >100dB Typical, 90dB max |
| Output Dynamic Range | >108dB |
| Output Impedance (balanced) | 220 0hms |
| Output Level Range : (1dB Steps) | -39 dBu min to +21 dBu max |
USB B |
|
| Bit Depth | 16-bit |
| Number of Channels | up to 16 × 16 |
| Sample Rate | 48kHz |
Environmental |
|
| Power Consumption | 60 watts, typical. 120 watts max |
| BTU/Heat load: | 205 BTU/Hour |
General |
|
| Compliance | FCC Part 15B (USA), FCC part 68 / TIA-968-B (USA), JATE (Japan), AS/ACIF S002 (Australia), PTC200 (New Zealand), ES203 021 (Europe), ANATEL Resolution 473 (Brazil), NOM-151-SCTI (Mexico), PSTN01 (Taiwan), Industry Canada CS-03 (Canada), CE marked (Europe), UL and C-UL listed (USA & Canada), RCM (Australia), EAC (Eurasian Customs Union) & RoHS Directive (Europe) |
