Description

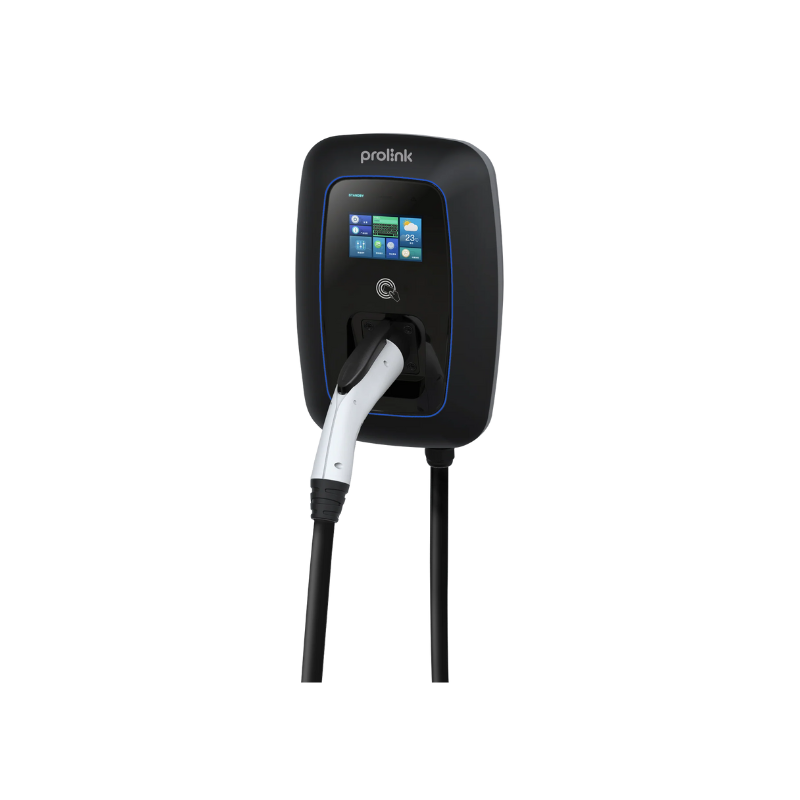

AP Series Wall Mounting Type AC EV Charger with Type 2 (IEC 62196-2) plug socket is a series of Level 2 electric vehicle (EV) chargers ranging from 7kW to 21kW power output (single-phase and three-phase). They are compact in design and offer various features and functions to meet your electric vehicle charging needs.
Installing an EV charger at home can be a great investment for electric vehicle (EV) owners. It offers the convenience of charging your vehicle at your own home, eliminates the need to rely on public charging stations and can save you money on charging costs. In addition, having an EV charger installed at your home can also increase the value of your property.
Features
Easy to install wall-mounted EV charger that provide users with a safe, efficient, and reliable charging experience.
 |
Single-phase AC 220 – 240VAC |
|---|---|
 |
Three-phase AC 380 -415VAC |
 |
IP65 rated casing |
 |
LCD dsiplay |
 |
OCPP 1.6 |
Suitable for both outdoor and indoor use
With an lP65 patented design and IK10 (cabinet) vandal-proof enclosure, it is built to withstand any weather.
Menneskes (Type 2 EU IEC 62196-2)
The Type-2 connector is widely used in European EV models (i.e., Audi, BMW, Renault, Mercedes, VW, and Volvo) and is becoming increasingly common globally, making it compatible with a wide range of electric vehicles (EVs).
You can connect all vehicles with a Type-2 play to public charging stations easily with the Mennekes charging connector. Depending on the variant, you can also power up to 23kW (3 Phase 415V, 32A) in public charging areas, or even private households.

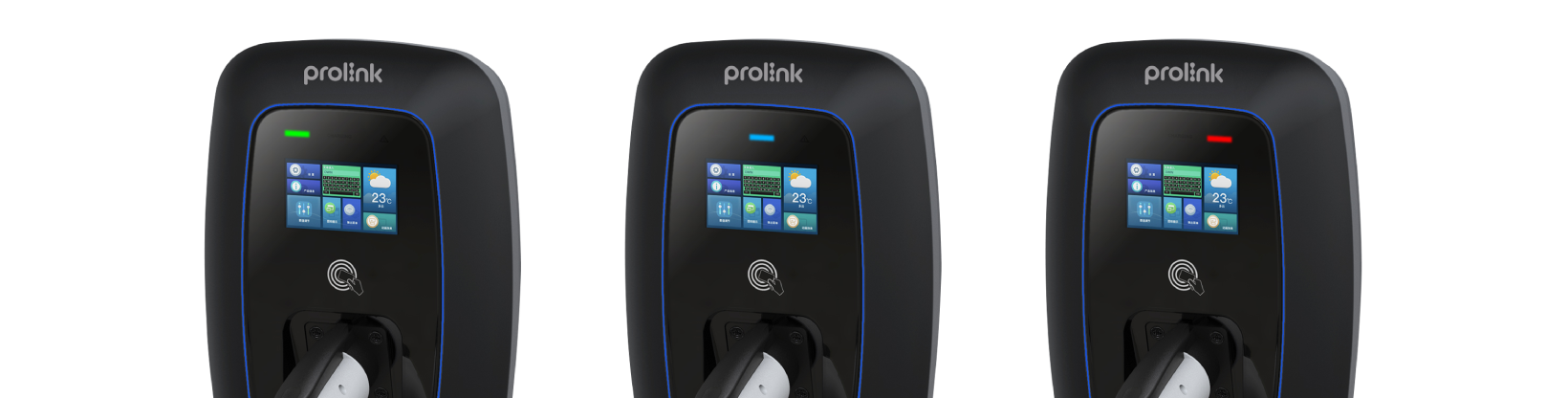

LED Lights Indicator
The LED indicator light allows you to monitor the 4 operating status:
- Charger Powered ON,
- Charger Connected to Vehicle,
- Charging in Progress, and
- Charger Faulty.
Dual-installation methods
The ability to be wall-mounted (default) or floor-mounted with pedestal provides flexibility when installing.
OCPP1.6J Approved
OCPP (Open Charge Point Protocol) 1.6J is a communication protocol standard specifically designed for Electric Vehicle (EV) charging stations.
It provides a standardized way for charging stations (also known as charge points) to communicate with a central management system (CMS) or backend server. This protocol enables interoperability between different EV charging station manufacturers and allows for remote monitoring, management, and control of charging infrastructure.
Prolink PEV6511W-AP Features
• Wall mounting type (pedestal mounting option available)• IP65 and IK10 rated plastic enclosure; IP55 rated connector• Dedicated LED status indicator light for each charging mode• Multilingual support for 4.3″ coloured touch screen LCD• Supports OCPP 1.6 JSON network and 3G/4G• Adapting OCPP network security protocol toimplement the OTA feature• Cloud network protocol verified by OCTT |
• Linux 5.10 OS and CPU conformed withcybersecurity standards• Singapore TR25:2022 charging standard compliance• SGS certified and CE certification withILAC-MRA endorsement• Passed rigorous environmental and thermal shock testsfrom -35°C to 55°C to ensure the system reliability• Customisable casing colour to complement its surrounding |
|---|
Specifications
| Charging Type | Charging Mode 3 |
|---|---|
| Outlet Options | AC Type 2 (IEC 62196-2) |
| Input/Output Current Rating |
|
| Input/Output Power Rating |
|
| Input/Output Voltage |
|
| Input Frequency | 50 or 60Hz |
| Number of EV Served | 1 |
| Cable Length | 5.0m, Optional: 7.5m |
| Distribution Systems | TT, TN, Split-phase |
| Connector Type |
|
| Cellular Communication | GSM, 4G, LTE |
| Connectivity | Ethernet (RJ45), Optional: 4G/3G or WiFi |
| User Authentication | RFID |
| User Interface | 4.3” touchscreen LCD, Optional: 5” touchscreen LCD |
| Status Indication | 3 indicators |
| Communication Protocols | OCPP 1.6J |
| RFID Reader | ISO/IEC 14443 A/B Mifare RFID reader |
| Emergency Button | Yes |
| Software Upgrade | Over-the-air (OTA) |
| Language System | English, Chinese |
| Protection Rating | IP65 and IK10 (cabinet)/IK8 (touchscreen)/IP55 (connector) |
| Housing Material | Plastic |
| Operating Temperature | -35°C to +55°C |
| Mounting | Wall-mount or pedestal stand |
| Dimensions | 110mm (D) x 282mm (W) x 407mm (H) |
| Weight | 7Kg |
