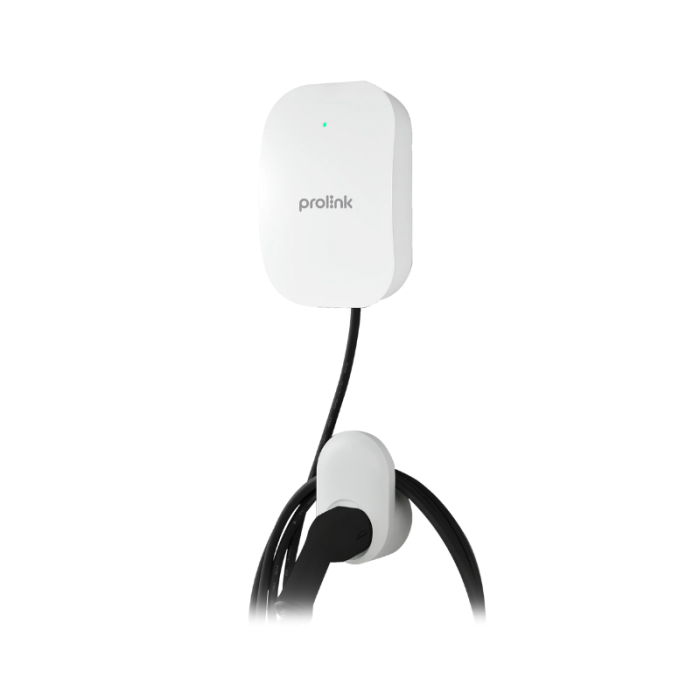

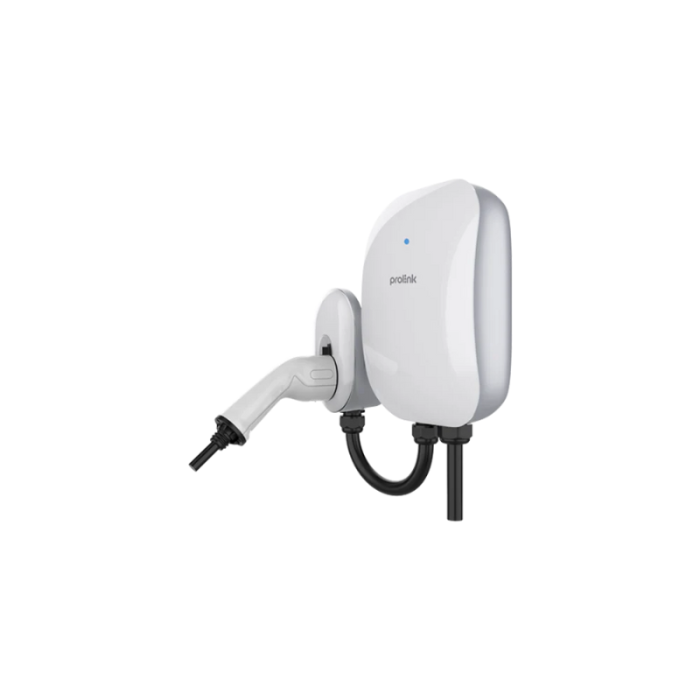

Prolink PEV III 6521W-AP 32A Three phase Wall Mounting Type AC EV Charger
Key Features
- EU Type 2 Connector (IEC 62196-2)
- Charging Mode 3
- Mobile App Control & Monitoring
- LED Indicator
- Low Cost of Maintenance
Description
A sleek and compact yet powerful wall-mounted Mode 3 AC EV Charger (Pedestal Mounting option available) using EU Type-2 connector (IEC 62196-2), with an input/output current rating of either a Single-phase AC 220 – 240VAC or Three-phase AC 380 – 415VAC distribution system.
Installing an EV charger at home can be a great investment for electric vehicle (EV) owners. It offers the convenience of charging your vehicle at your own home, eliminates the need to rely on public charging stations and can save you money on charging costs. In addition, having an EV charger installed at your home can also increase the value of your property.
Features
Easy to install wall-mounted EV charger that provide users with a safe, efficient, and reliable charging experience.
 |
Single-phase AC 220 – 240VAC |
|---|---|
 |
Three-phase AC 380 -415VAC |
 |
IP65 rated casing |
 |
Mobile app |
 |
System protection |
Built to withstand any weather
The wall-mounted EV charger is designed for outdoor usage and is made from durable and robust materials – with lP65 patented design and IK10 (cabinet) vandal-proof enclosure.

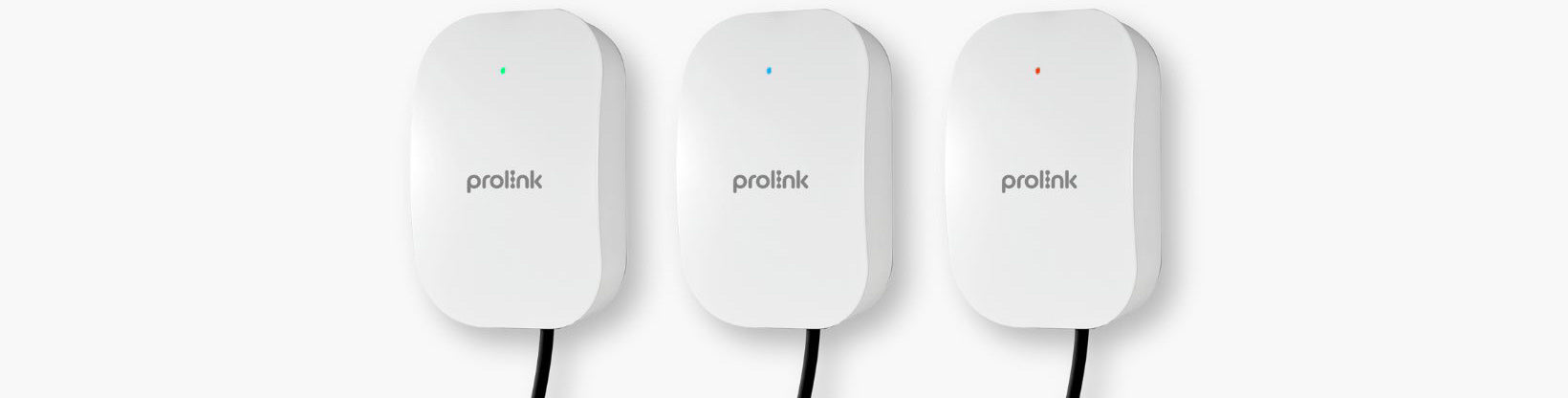

LED Lights Indicator
The LED indicator light allows you to monitor the 4 operating status:
- Charger Powered ON,
- Charger Connected to Vehicle,
- Charging in Progress, and
- Charger Faulty.

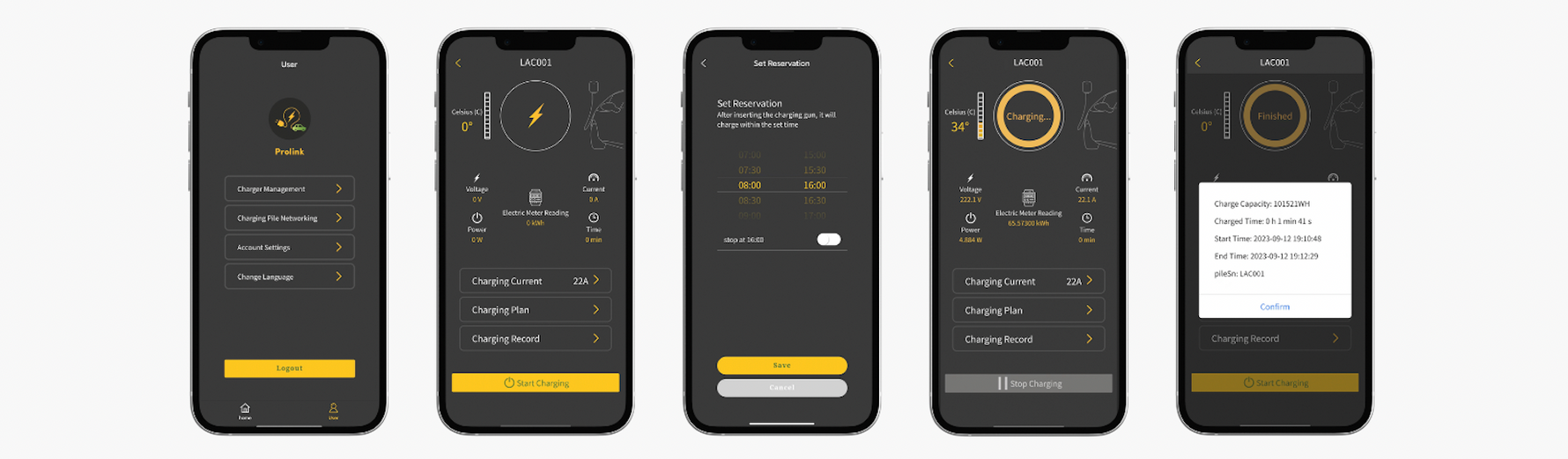

ICharging Mobile App
-
Remote controlling
Monitor the charging status and progress, set and track charging current and sessions, or switch on/off your charger anytime, anywhere.
-
Smart scheduling
Customize your charging sessions to suit your day-to-day lifestyle.
-
Long-term savings
Save money by scheduling your charging sessions when energy is cheapest.
Prolink PEV III 6511W-AP Features
• Wall mounting type (pedestal mounting option available)• IP65 and IK10 rated plastic enclosure; IP55 rated connector• Dedicated LED status indicator light for each charging mode• Multiple installation options with great flexibility• Low cost of maintenance• Real-time management of charging times andintegration into smart grid programs• Remote charging management via mobile app• Time-of-use (TOU) charging control |
• Singapore TR25:2022 charging standard compliance• SGS certified and CE certification withILAC-MRA endorsement• Passed rigorous environmental and thermal shock testsfrom -35°C to 50°C to ensure the system reliability• Customisable casing colour to complement its surrounding• Built-in RDC-PD (AC 30mA+DC6mA) for leakagecurrent protection |
|---|
Specifications
| Charging Type | Charging Mode 3 |
|---|---|
| Outlet Options | AC Type 2 (IEC 62196-2) |
| Input/Output Current Rating |
|
| Input/Output Power Rating |
|
| Input/Output Voltage |
|
| Input Frequency | 50 or 60Hz |
| Number of EV Served | 1 |
| Cable Length | 5.0m, Optional: 7.5m |
| Distribution Systems |
|
| Connector Type |
|
| Connectivity | Wi-Fi, Bluetooth (Optional) |
| Status indication | Coloured indicator |
| Protection Rating | IP65 and IK10 (enclosure)/IP55 (connector) |
| Housing Material | Plastic |
| Operating Temperature | -35°C to 50°C |
| Mounting | Wall-mount or pedestal stand (Optional) |
| Dimensions | 73mm (D) x 190mm (W) x 270mm (H) |
| Weight |
|
