Bose PowerSpace P2600A Versatile Power Amplifier

Ideal for zone-expansion applications, Bose Professional PowerSpace amplifiers enhance any premium commercial sound installation with clean, reliable power — and digital connectivity. A Bose Professional AmpLink input allows for multiple channels of uncompressed, low-latency digital audio from Bose Professional DSPs via a single Cat 5 cable. The PowerSpace P2600A provides 600 watts per channel and features versatile outputs that give you the flexibility to deliver full channel power to either low- or high-impedance loads — without bridging — and even send double power to a single zone. For premium commercial applications, PowerSpace amplifiers provide the power and performance to get the job done — pure and simple.

Description

Description

FEATURES

  • 600 watts per channel and works seamlessly with loudspeakers, DSPs, and controls to create complete commercial sound systems
  • AmpLink input for simplified multichannel digital audio connection to compatible DSPs, reducing terminations and related points of failure
  • Load-independent outputs deliver full channel power to either low-impedance loads (4-8 Ω) or high-impedance (70/100V) loads without bridging
  • I-Share outputs deliver 2x power level by combining the current of two channels
  • Auto-standby mode saves power when audio signal falls below a set threshold, then wakes when audio returns



PowerSpace 2600A

Applications

Designed for a wide range of applications, including:

  • Retail stores
  • Restaurants and bars
  • Hospitality venues
  • Conference centers
  • Schools
  • Auxiliary zones





SPECIFICATIONS

TECHNICAL SPECIFICATION

AMPLIFICATION

  • Channel Separation (Crosstalk) > 80 dB at 1 kHz, > 65 dB at 20 kHz
  • Dynamic Range ≥ 100 dB at rated power, A-weighted
  • Frequency Response 20 Hz – 20 kHz (±1 dB) at 1 W, 4–8 Ω / 20 Hz – 20 kHz (±1 dB) at 1 W with 50 Hz high-pass filter, 70/100V
  • Gain, High-Impedance 35 dB, 70V mode / 38 dB, 100V mode
  • Gain, Low-Impedance 35 dB
  • Maximum Peak Power, Symmetrical 1200 W
  • Number of Channels 2
  • Power Class Class D
  • Rated Power, Symmetrical 600 W
  • THD+N < 0.04% at 1 kHz, 4–8 Ω, 70V/100V

AUDIO INPUTS, ANALOG

  • Channels 2 balanced
  • Connectors (1) 6-pin Euroblock
  • Input Impedance 10 kΩ
  • Maximum Input Level 22 dBu at 14 dBu sensitivity
  • Sensitivity -10 dBV, 4 dBu, 14 dBu

AUDIO INPUTS/OUTPUTS, DIGITAL

  • Channels 8 AmpLink in, 8 AmpLink thru
  • Connectors (1) RJ-45 AmpLink in / (1) RJ-45 AmpLink thru
  • Type 6-pin Euroblock

AUDIO OUTPUTS, ANALOG

  • Channels 2
  • Connectors (1) 4-terminal block

COMPLIANCE

  • EMC This product meets all EN55103-2 immunity requirements for E2 electromagnetic environment.

ELECTRICAL

  • Mains Connector IEC 60320-C14 inlet
  • Mains Voltage 100–240 VAC (±10%), 50/60 Hz
  • Power Consumption 25 W auto-standby, 570 W maximum

INDICATORS AND CONTROLS

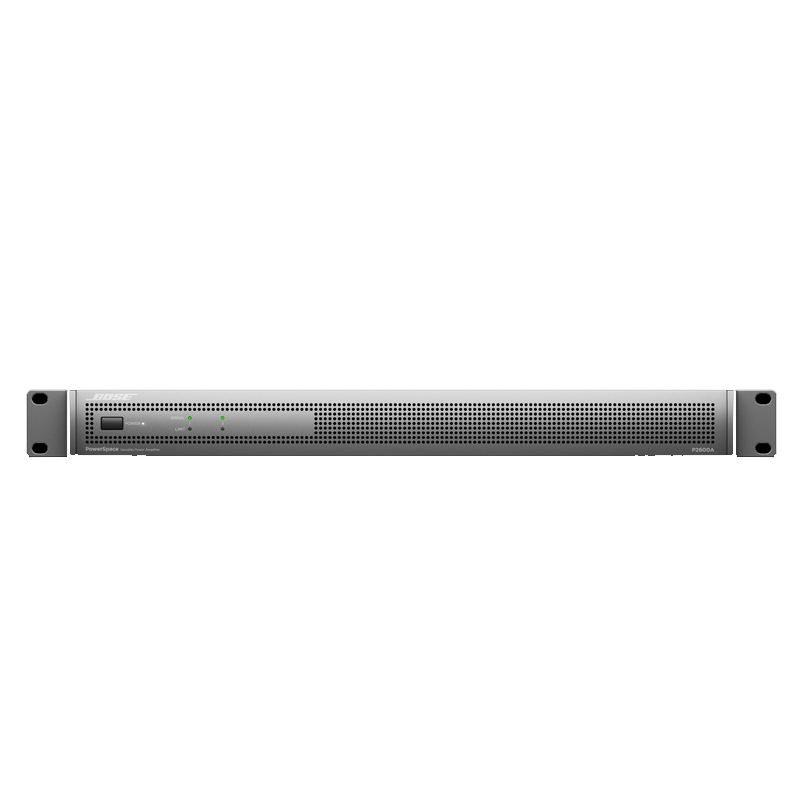

  • Controls, Front Panel (1) power button

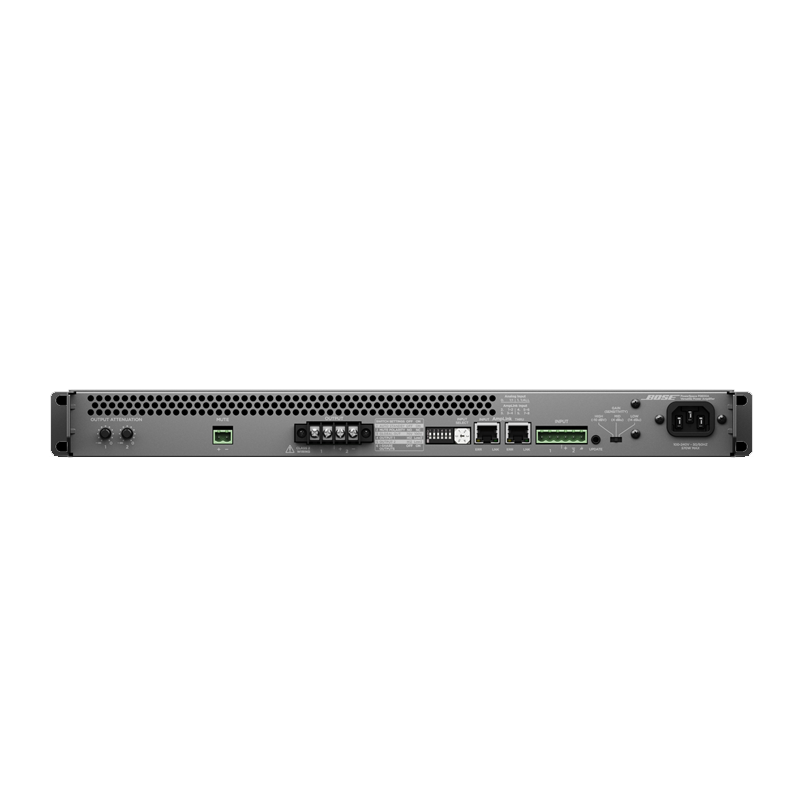

  • Controls, Rear Panel Mute, output attenuators, DIP switches for amplifier configuration, input selector, update port, gain/sensitivity
  • LED Status Indicators (1) power/status LED, (4) input signal LEDs, (4) output limit LEDs

INTEGRATED DSP

  • DSP-Enabled No

PHYSICAL

  • Colors Gray
  • Cooling System Microprocessor-controlled variable-speed fans, front-to-back air flow
  • Mounting/Rigging Provisions Rack-mounting
  • Net Weight 13.7 lb (6.2 kg)
  • Operating Temperature 0 °C to 40 °C (32 °F to 104 °F)
  • Product Dimensions (H×W×D) 1.7 in × 19.0 in × 16.5 in (44 mm × 483 mm × 420 mm)
  • Rack Spaces 1
  • Shipping Weight 18.1 lb (8.2 kg)



WARRANTY PERIOD

5 years



Technical Data Sheet
