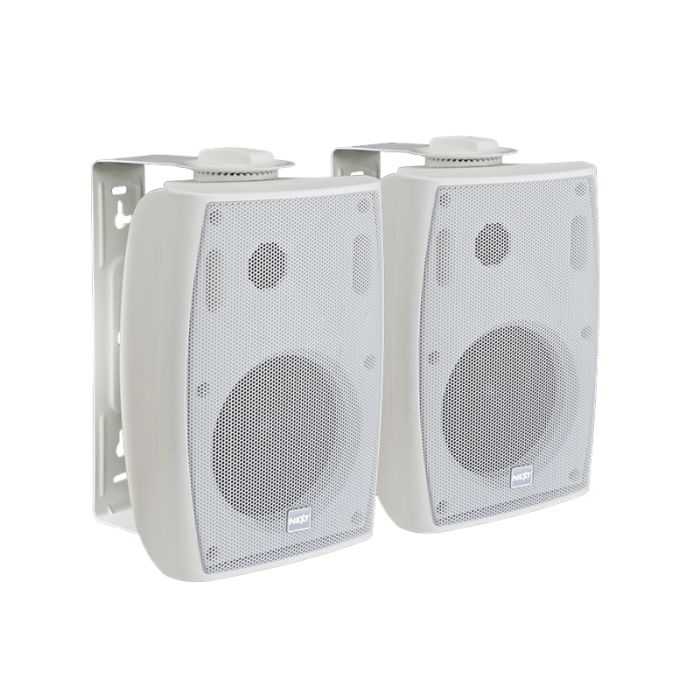

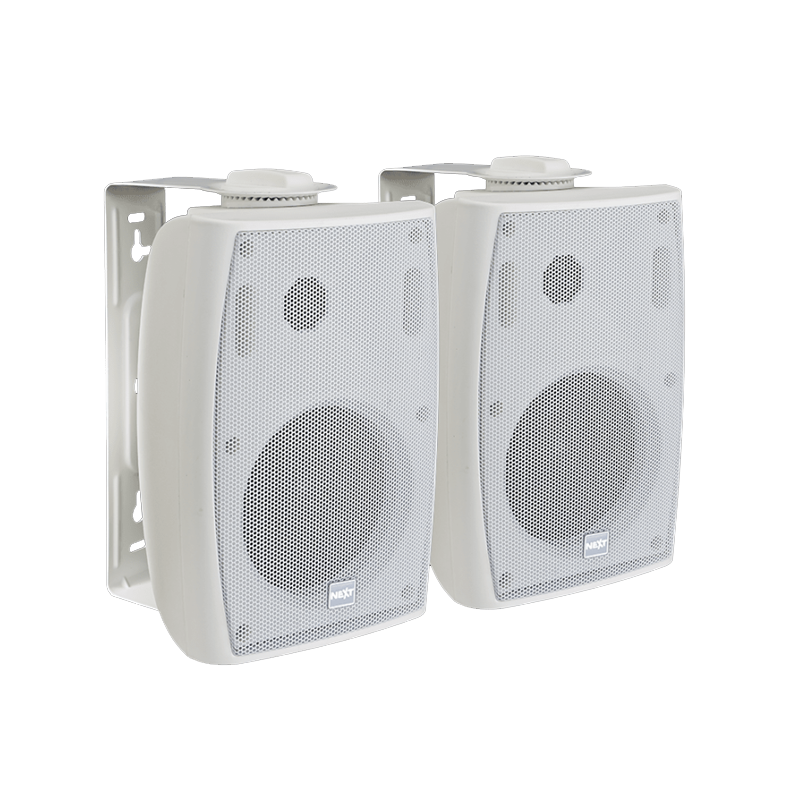

Next Audio W6 6.5″ Passive Speaker White (PAIR) [100V|8Ω]
Key Features
Low Impedance Input
The low impedance input allows you to use your speaker in 8Ω configuration for your small to medium installations.
Ver./Hor. Installation
You can install your speaker on either horizontally or vertically, depending on your installation needs.
Bracket Included
Easily install your speaker on the wall or ceiling using the included bracket.
100V Line Input
The built-in transformer allows you to use the speaker in 100V line configurations for your medium to big installations.
Easy Install
The installation is made easy with no high technical skills or very special tools needed to install your device.
Discreet Design
The discreet design allows you have an unobtrusive sound source keeping the original design of your venue.
Description

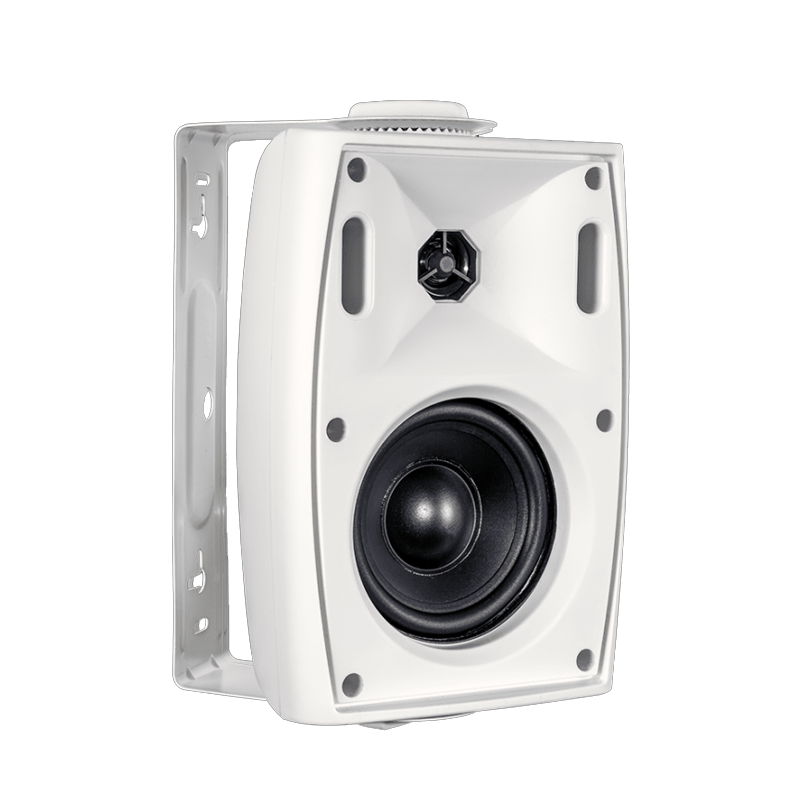

The W6 two-way loudspeakers with built-in 100V transformer and 8Ω power tap are perfect for both distributed and near-field applications in environments such as retail stores, restaurants, bars, churches and gyms. The low frequencies are reproduced by a 6.5” direct-radiating woofer with a polypropylene cone, while the high-frequency section is based on a titanium tweeter. The speaker’s design with a waveguide improves dynamics and efficiency bringing out details in everything you listen to, while reducing reflections that can color the sound. A U-bracket is included and will support your installation on the wall or ceiling.
Features
Versatile Installations
Integrated Transformer
The integrated transformer allows you to use the W6 speakers at 100V line configuration for medium to large scale installations. For this purpose, you can adjust the tap on the position you want.
Easy Install
Adjustable Bracket
Install your W6 speakers easily, adjusting the wall bracket and positioning in the desired position.
The W4, W6 and W8 speakers are available in black and white to match the decor and technical needs of your installation.
Specifications
| Product Type | 2-Way Passive Speaker (8Ω/100V) |
|---|---|
| RMS Power | 40W |
| Sensitivity (1W, 1m) | 88dB |
| High Frequency Driver | 1″ Silk Dome Tweeter |
| Recommended Amplifier | A40 | A200 | MX120 | MX350 |
| Frequency Response (-6dB) | 70Hz – 18kHz |
| Program Power | 80W |
| Maximum SPL Pgm/Peak (calculated) | 104dB |
| Transformer Taps 100V |
3.75W | 7.5W | 15W | 30W
|
| Construction | High-grade Rugged Polypropylene |
| Fixation | Wall U-Bracket (included) |
| Nominal Coverage (-6dB) | 100° H x 100º V |
| Nominal Impedance | 8Ω (low impedance mode) |
| Low Frequency Driver | 6.5″ Polypropylene Cone Woofer |
| Input Connectors | Binding Posts |
| IP Rating | Indoor Use |
| Dimensions (WxHxD) | 205 x 310 x 195mm (8″ x 12.2″ x 7.6″) [W6W] | 205 x 345 x 225mm (8″ x 13.5″ x 8.8″) [W6W + U-Bracket] |
| Shipping Weight | 8.5kg (18.74lb) |
| Net Weight |
4kg (8.82lb) [W6W + U-Bracket]
|
