Description

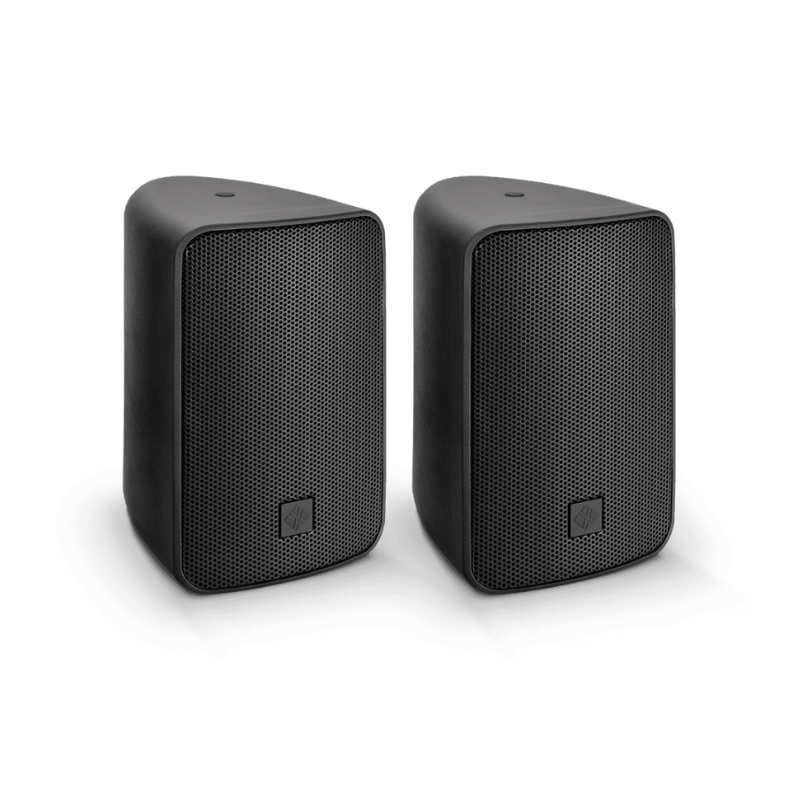

The T4 two-way IP65 speakers with built-in 100V transformer and low-impedance input (16Ω) are perfect for distribution or proximity applications in environments such as retail shops, restaurants, bars, terraces, churches, shopping centres or conference spaces. The speakers are housed in an elegant weatherproof plastic case (IP65 – using the rear cover) providing excellent architectural integration for indoor and outdoor environments. The speaker’s very precise coverage allows the entire audience to hear the sound in the same way. The low frequencies are reproduced by a 4″ speaker, while the treble section is reproduced by a titanium tweeter. The U-shaped bracket is included and will allow you to install it on the wall or ceiling.
Features

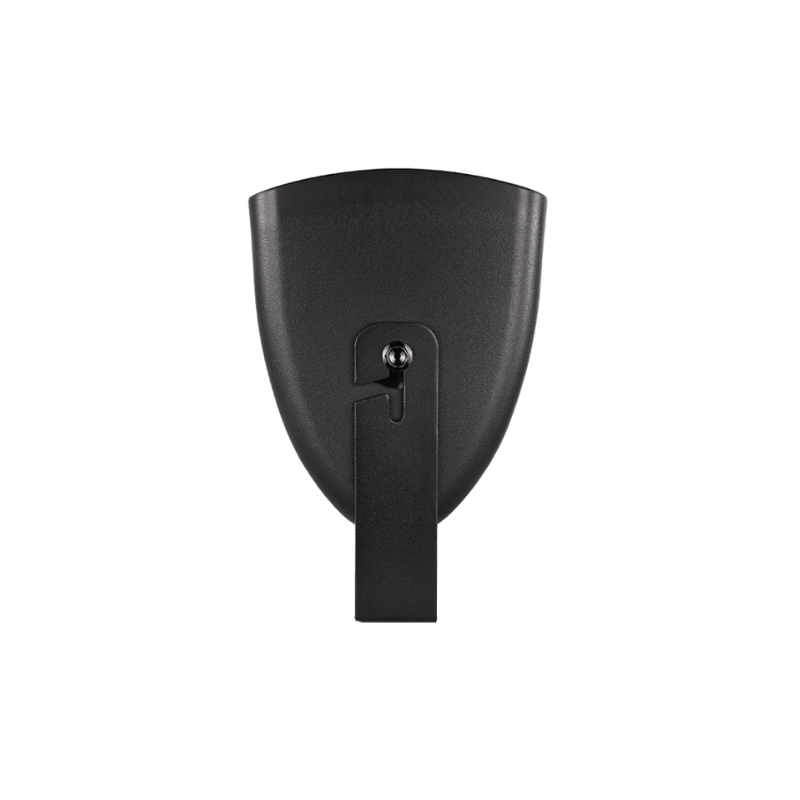

U-Shaped Holder Included
The T4 comes with a U-shaped bracket included in the package, made from hot-dip galvanised steel coated with a layer of zinc, making it corrosion-resistant. Other wall brackets (with pan and tilt) are available for the T4.

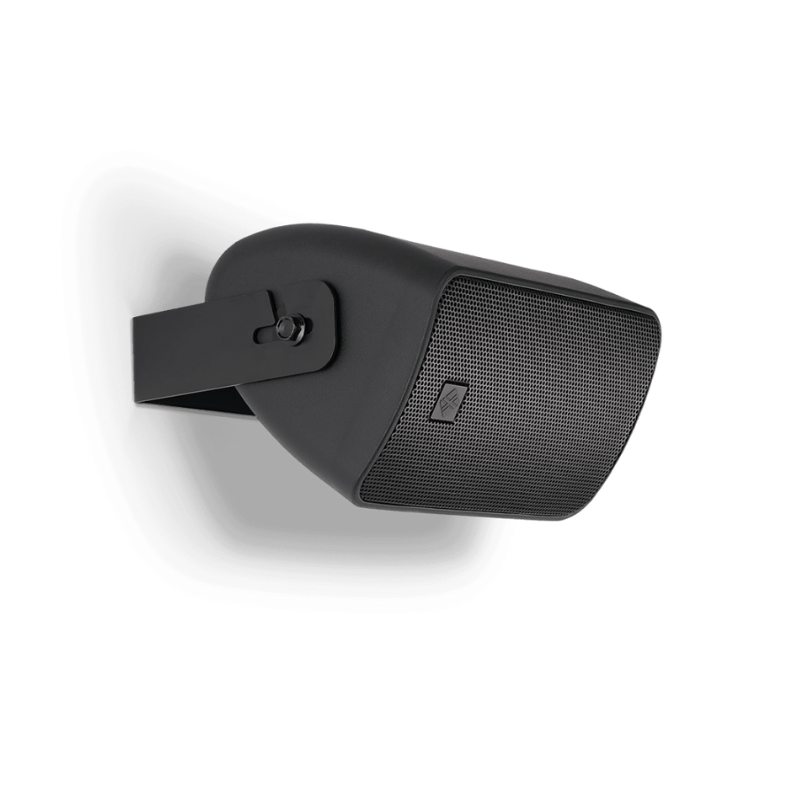

Adjustable Bracket
Install your T4 speakers quickly and easily by adjusting the screw after the bracket has been placed in the desired position.

Easy Connections
The T4 speakers are equipped with a 4-position Phoenix connector (IN+/IN- and LINK+/LINK-) located on the rear. The screw connector provides a faster connection and easier way to connect the system, allowing the speaker to fit perfectly into the shape of the wall while keeping the cables invisible.
Back Cover For IP65
The T4 includes a back cover that allows the speaker to be exposed to rain or very humid environments. Note: The IP65 protection rating can only be achieved when the back cover is in place.
Versatile Applications
The entire T series (T4, T6 and T8) is available in black and white so you can adapt to the aesthetics of the space and sound what you want.
Specifications
Product Type | 2-Way Outdoor Passive Speaker (16Ω/100V) |
---|---|
Frequency Response (-6dB) | 75Hz – 20kHz |
Nominal Coverage (-6dB) | 120° H x 90º V |
RMS Power | 40W |
Program Power | 80W |
Nominal Impedance | 16Ω (low impedance mode) |
Sensitivity (1W, 1m) | 88dB |
Maximum SPL Pgm/Peak (calculated) | 107dB |
Low Frequency Driver | 4″ Woofer |
High Frequency Driver | 0.8″ Dome Tweeter |
Transformer Taps 100V | 10W | 20W | 40W |
Recommended High-Pass Filter | 87Hz, 18dB/oct Butterworth |
Input Connectors | 4 Pins Screw Connector (IN/OUT) |
Recommended Amplifier | A200 | MX120 | MX350 |
Grille | Aluminum Acoustically Invisible |
Construction | Weatherproof Plastic Cabinet |
IP Rating | IP65 |
Dimensions (WxHxD) | 140 x 230 x 172mm (5.5 x 9 x 6.8 in) |
Fixation | Wall U-Bracket (included) |
Net Weight | 2.8kg (6.2lb) |
Shipping Weight | 7kg (15.4lb) |
Accessories | Ball-Joint Wall Bracket for T4 (not included) |
