Instrument Input
RCA Input
Microphone Input
AUX Input
Dedicated Presets
Extended CompatibilityDescription

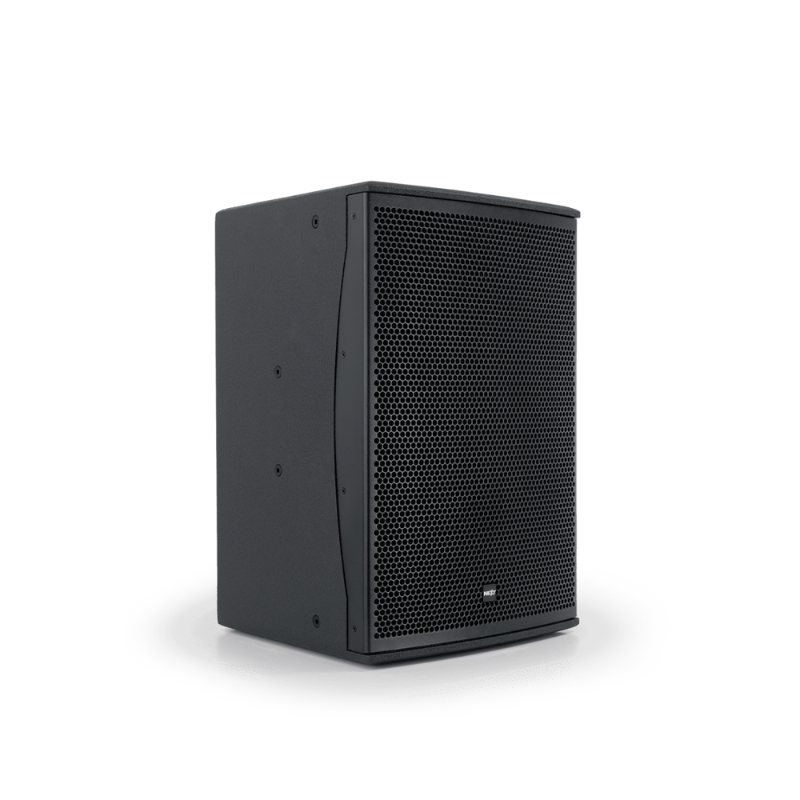

The Pro12A is an active 12” speakers engineered specifically for installation and portable solutions with a modern and trendy design to deliver high output and dynamics, extreme linearity and fidelity at a very competitive price, making them an affordable solution for the professional market. This speaker can be an ideal solution for hotels, restaurants, bars, lounges, conference rooms, Djs and musicians among many others. This versatile speaker works equally well on tripod stands or as a flying system with a wide range of rigging points. The cabinets are constructed using premium-quality 15mm plywood with polyurethane coating. Front and speakers’ protection is assured by an acoustically transparent a powdercoated steel grill with acoustical foam.
Features
Integrated DSP Processor
The Pro12A has a 2 channel mixer, BT included and 5 presets available to select and sound your spaces with quality. You can connect any instrument, microphone, CD Player or audio mixer to the active Pro Series input. The Pro speakers can be connected between each other using the “Mix Out” connector. An active external subwoofer can be added to extend the system frequency response.
Easy Install
The optional U-bracket allows mounting the Pro12A cabinet both horizontally and vertically. The U-Bracket has a total angle adjustment span of 115º. Depending on the adjustment bolt used, the final speaker’s angle may vary (100º to -15º, 10º to -105º or -80º to -195º).
Focus On Details
Thanks to the focus on details, the Pro12A is one of the best available solutions on its segment. The premium-quality components provide a balanced sound with an excellent low frequency extension and a refined look.
Versatile Use
Specifications
| Product Type | Active Multi-Purpose Speaker |
|---|---|
| Frequency Response (-6dB) | 46Hz – 20kHz |
| Low Frequency Extension (-10dB) | 42Hz |
| Nominal Coverage (-6dB) | 80º H x 50º V (User Rotatable) |
| Maximum SPL Pgm/Peak (calculated) | 122dB / 128dB (Full-Space) |
| Low Frequency Driver | 12″ Woofer | 2.5″ Voice Coil |
| High Frequency Driver | 1″ Titanium Driver | 1.7″ Voice Coil |
| Amplifier Technology | Class D Amplifier with DSP |
| Amplifier Power | RMS: 800W (550W + 250W) / Peak: 1400W |
| Mixer | 2 Channels |
| DSP Presets | Flat | HF Boost | Music | Wall | HPF 100Hz |
| Wireless Connection System | BT v4.0 |
| Wireless Range | 10m (32.8ft) |
| Audio Signal Inputs | BT | Microphone | Instrument | CD Player | AUX |
| Input Connectors | 2 x XLR / TRS combo | 1 x 3.5mm Stereo Jack | 1 x Stereo RCA |
| Audio Signal Outputs | Mixer Output |
| Output Connectors | 1 x XLR |
| Cooling Type | Convection |
| Power Input | AC 100V – 240V 50Hz/60Hz |
| Power Consumption | 550W (2.3A) |
| Fittings | 12 x M8 threaded inserts | 1 x 35mm pole mount socket |
| Handles | One on the Back |
| Grille | Black Perforated Steel |
| Construction | 15mm multi-laminate birch ply |
| Finish | Poliurea Coating |
| Dimensions (WxHxD) | 356 x 578 x 398mm (14 x 20.8 x 15.7 in) |
|---|---|
| Net Weight | 20kg (44.1lb) |
| Shipping Weight | 23kg (50.7lb) |
| Accessories | U-Bracket (not included) |
