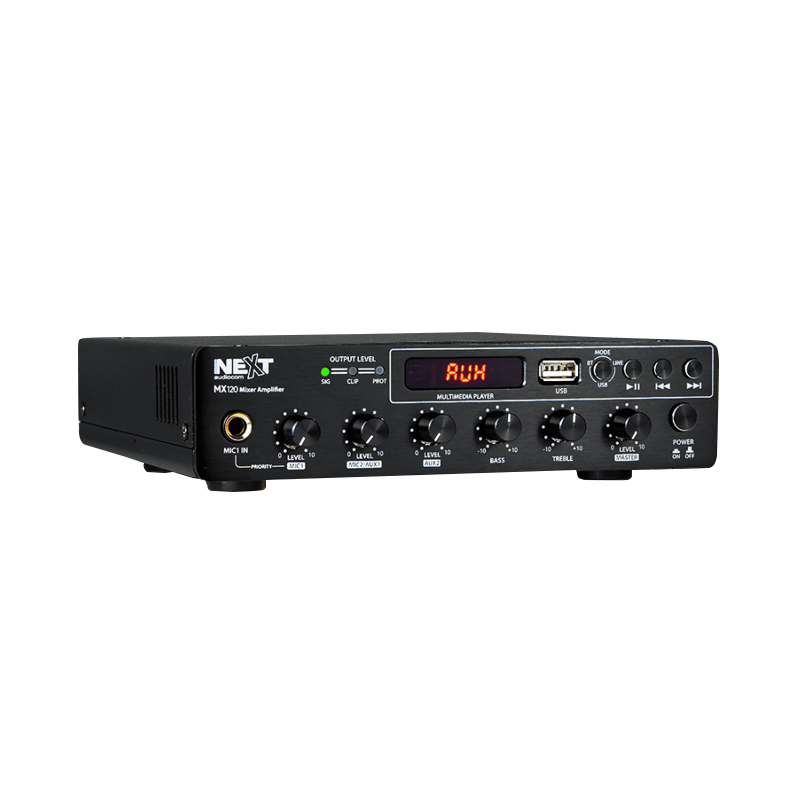

Next Audio MX120 Mixer Amplifier With BT 120W [100V]
Key Features
100V Line Output
Use this amplifier to power, with flexibility, medium to big system configurations with 100V line speakers.
Extended Compatibility
Wireless compatibility with your Smartphone, Tablet, Laptop, Desktop, TV, Game Console and many other devices.
USB Player
With the incorporated USB Player, it is possible to insert your USB Flash Drive and play your audio files directly on the device.

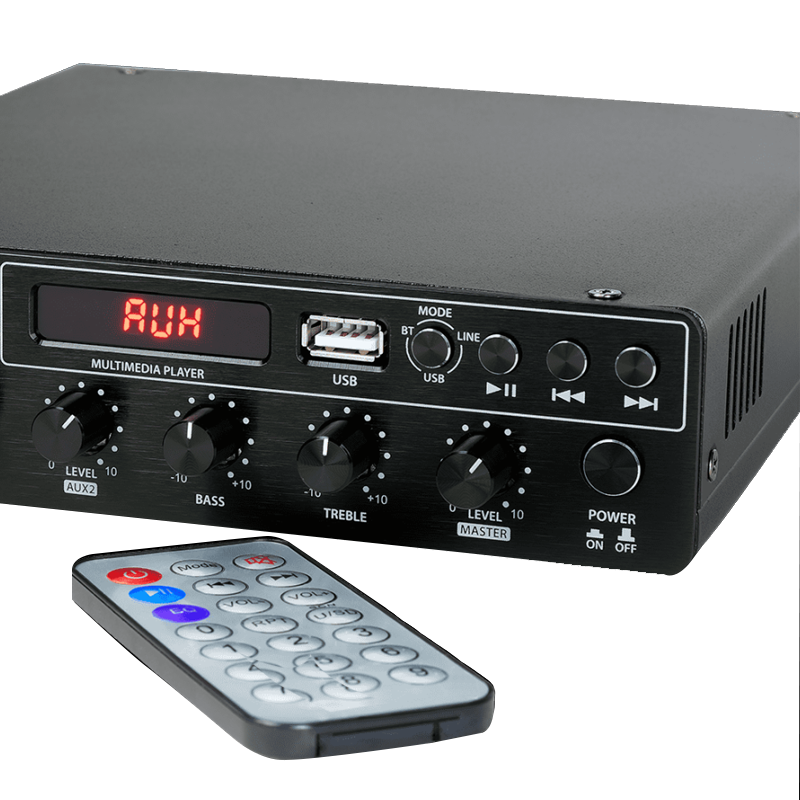

Remote Control
Be the master of your system with the remote control. Wirelessly, have the power of control on your hands.
Microphone Input
The MIC input allows you to connect your microphone directly on the device.
Description
The MX120 is a 120W (100V) amplifier with an ultra-small size and lightweight for incorporating into your small to medium-sized installations allowing its installation where you want, and can be installed in any place keeping the installation design. With MX120, you can have multiple audio signal solutions USB, RCA, XLR, AUX and BT. This amplifier incorporates a multimedia player that allows you to control and reproduce the USB.
Features
Inputs Versatility
With MX120, you can have multiple audio signal solutions USB, RCA, XLR, AUX and BT.
Ultra Compact Design
The MX120 is a 120W amplifier with an ultra-small size for incorporating into your small to medium-sized installations.
Multimedia Player
MX120 incorporates a multimedia player that allows you to control and reproduce the USB.
Recommended Applications
Specifications
| Product Type | Mixer Amplifier with BT |
|---|---|
| Frequency Response (-6dB) | 80Hz – 16kHz |
| Amplifier Technology | D Class Amplifier |
| Amplifier Power | 120W |
| Speaker Output | 100V |
| THD+N | <0.5% |
| SNR (Signal to Noise Ratio) | Mic: >74dB | Line-in: >80dB |
| Input Sensitivity | Mic: 60mV (±15mV) | Line-in : 300mV(±20mV) |
| Mixer | 3 Channels |
| Wireless Connection System | BT v5.0 |
| Wireless Range | 10m (32.8ft) |
| Audio Signal Inputs | BT | Microphone | CD Player | USB |

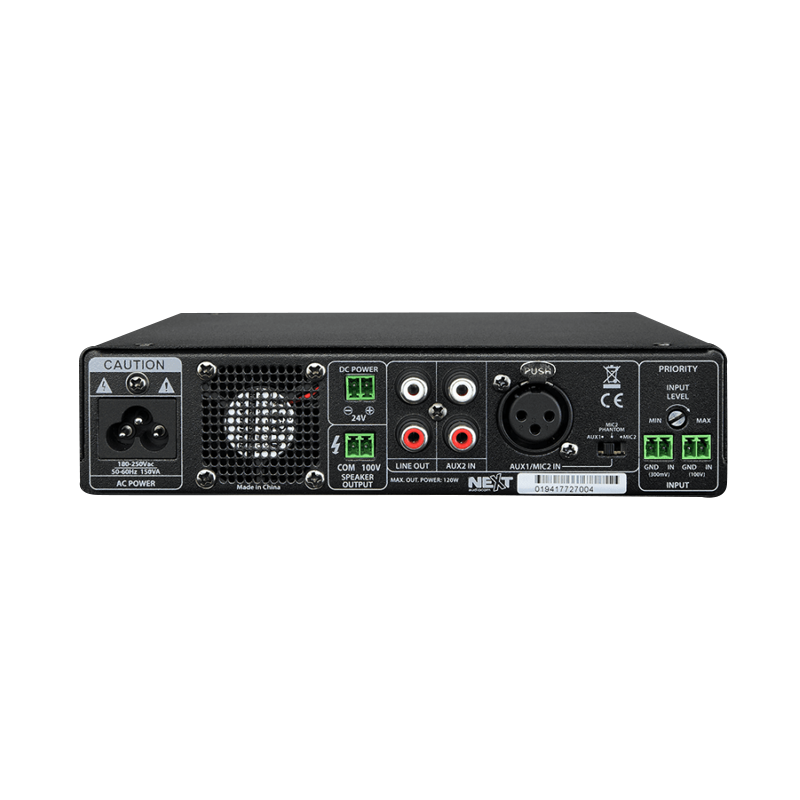

| Input Connectors | 1 x Stereo RCA | 1 x MIC (TS) | 1 x MIC or AUX (XLR) | 1 x Line-in (Phoenix Connector) | 1 x 100V IN (Phoenix Connector) | 1 x USB A Type |
| Audio Signal Outputs | Line Audio |
| Output Connectors | 1 x Stereo RCA |
| Protections | DC Voltage | Overload | Short-Circuit |
| Cooling Type | Speed Controlled Fan |
| Power Input | AC 180V – 250V / 50Hz – 60Hz and/or DC 24V – 6A |
| Power Consumption | 150W |
| Special Features | Ducking | Priority Mic. | Phantom Power (+48V) | Bass Adjust.: ±10dB (100Hz) | Treble Adjust.: ±10dB (10kHz) |
| Construction | Aluminum / Steel |
| IP Rating | Indoor Use |
| Dimensions (ØxD) | 200 x 44 x 190mm (7.9″ x 1.7″ x 7.5″) |
| Net Weight | 1.5kg (3.3lb) |
| Shipping Weight | 2kg (4.4lb) |
