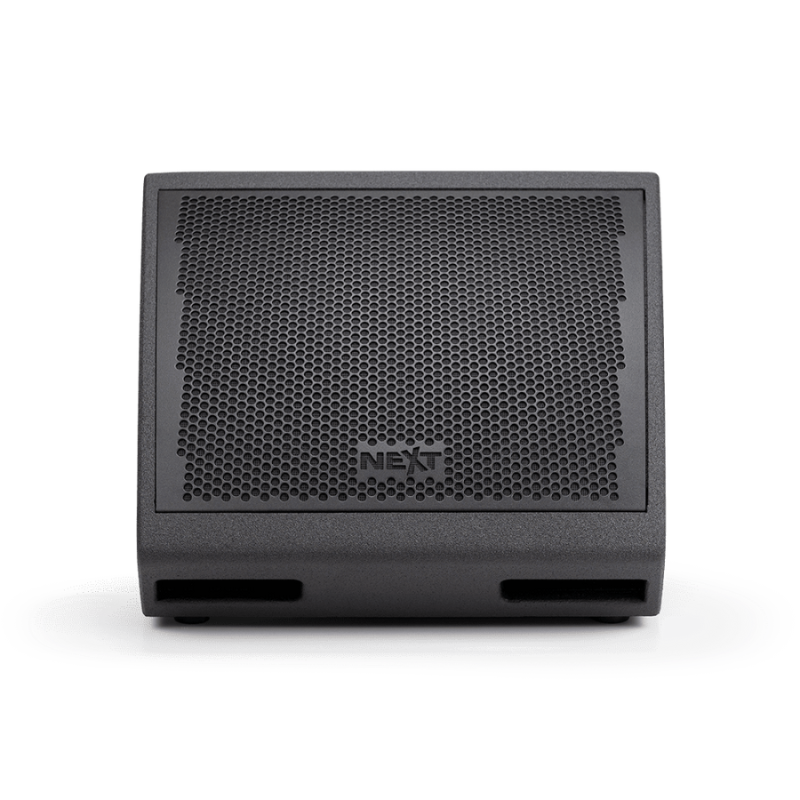

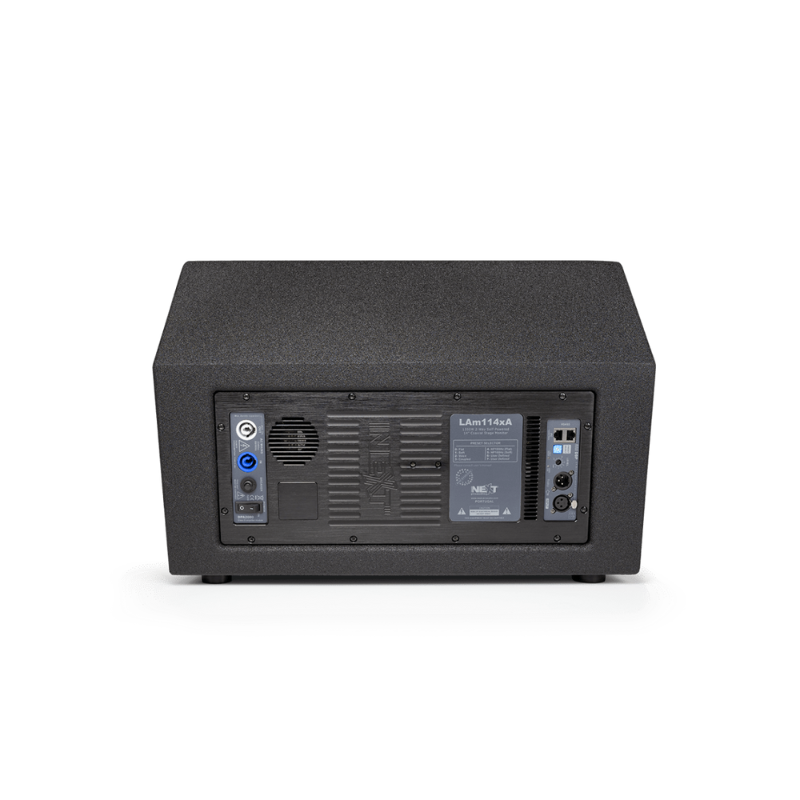

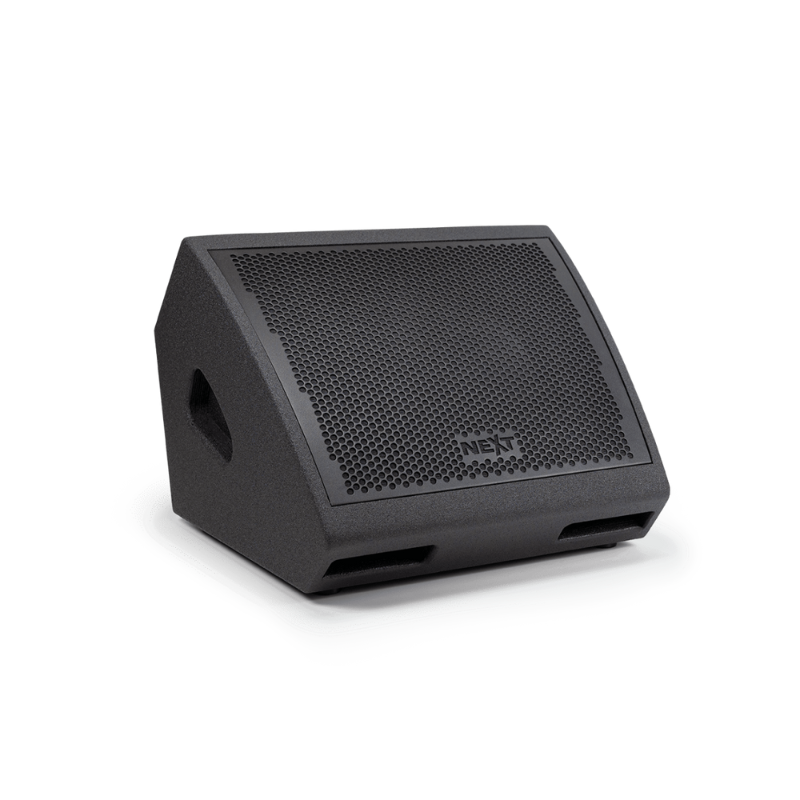

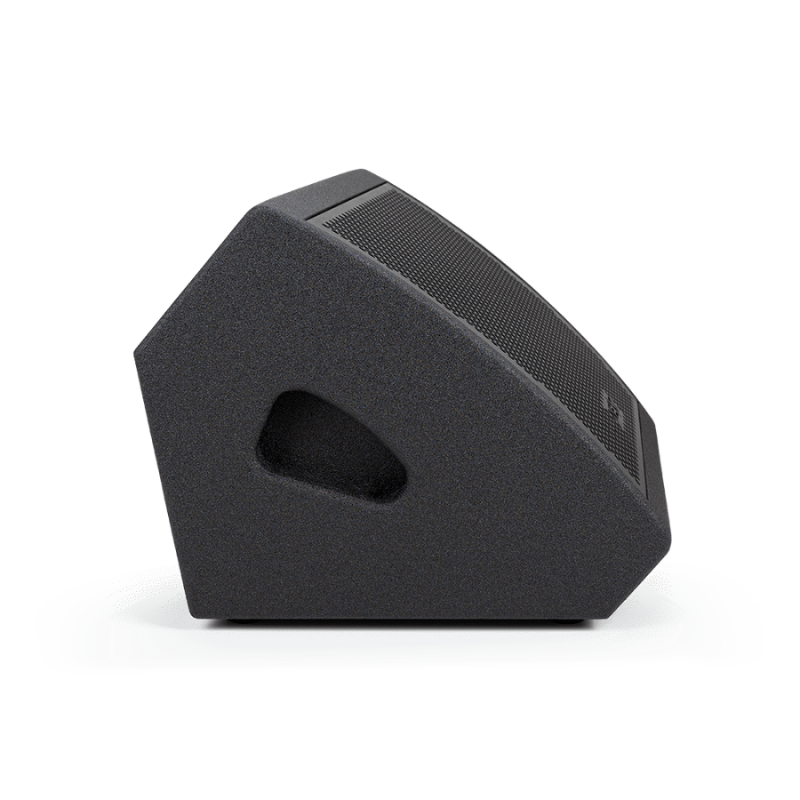

Next Audio LAm114xA Active Coaxial Stage Monitor

Description

Stage monitoring is very important for an artist’s successful performance. To fulfil all the needs the Lam114xA aimed to provide the musicians a perfect listening on the most demanding situations. The LAm114xA stage monitor incorporates advanced coaxial 14” B&C Custom made speaker and a high performance DPA amplifier module, capable of generating 1,650W (rms) for a very high acoustic pressure. The design combines the voice reproduction clarity associated with 12” drivers with the bass extension typically of 15” speakers. The high-frequency reproduction is handled by a 2-inch exit, 3-inch voice coil, HF neodymium driver for the critical voice frequency range. The cabinet’s small footprint and low weight, combined with the absolutely linear and extended response at very high-pressure levels, makes the LAm114xA the well suited to both small and large venue use. The heart of the LAm114xA, is a powerful, lightweight, highly efficient class-D power amplifier module, with switch mode power supply, that offers both sonic punch, balanced sound as well as a rich and transparent,sound at any level.

Features

Clear and Powerful

The LAm114xA incorporates an advanced coaxial 14” speaker B&C custom made which combines the voice reproduction clarity associated with 12” drivers with the bass extension typically of 15” speakers. The high-frequency reproduction is handled by a 2-inch exit, 3-inch voice coil, HF neodymium driver for the critical voice frequency range.

The high efficiency 1650Wrms DPAmplifier module, integrated with an advanced digital processing (DSP), set a new standard for audio quality, distortion and thermal efficiency.

The integrated DSP and low-noise AD/DA converters give eight selectable presets (six factory defined and two user-defined) –accessed by a selector on the module front panel or real-time edited on a PC, using the supplied Soundware software via USB remote control. This permits easy customization of the sound programme for different applications and venues.

Versatile Use

The cabinet’s small footprint and low weight, combined with the absolutely linear and extended response at very high-pressure levels, makes the LAm114xA the well suited choice for Rock, Pop, Classic music, Hip-Hop, Jazz as well as Dance music.

With the Soundware software it is possible to edit each one of the six pre-loaded presets and store it in one of the two free memories. Editable parameters are: input equalization, input delay, input high-pass/low-pass filters and a Bass Enhancer function. A total of 255 units can be controlled simultaneously by the software.

Specifications
