Next Audio FLEXi 15 System 15″ Active Compact PA System
Key Features
Combo Pack
The active speaker is powered by the dedicated built-in amplifier and powers the passive speaker, avoiding the use of an external amplifier on your installation.
Rotatable Horn
The speakers installed horn can be easily rotated by the user allowing the coverage pattern to be changed according to the venue/installation needs.
Dedicated Presets
The integrated DSP allows you to have dedicated presets for different situations. You just need to select which one is the most convenient for your application.
Polyurea Coating
The speaker is covered with a thick layer of polyurea, a highly resistant two-component polymer, giving it high immunity against impacts and scratches.
Plywood Enclosure
The cabinet is built using plywood which is an excellent material in terms of strength and durability giving your speaker great longevity.
Built-in Amplifier
Powered with a dedicated built-in amplifier, this speaker doesn´t need an external amplifier.
Description

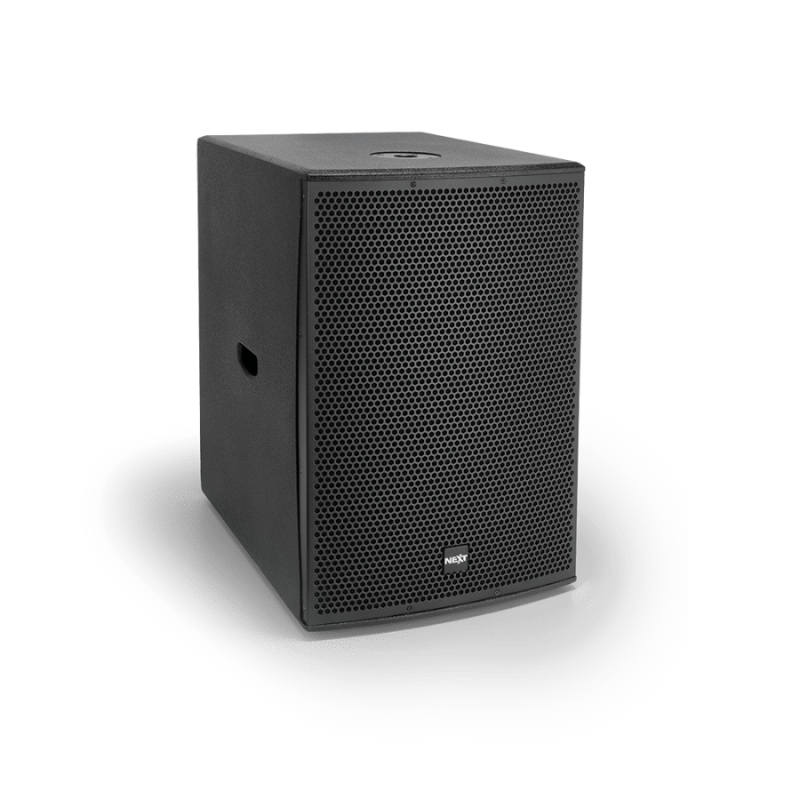

The FLEXI15 is a 2000W active 2.1 compact PA system with an integrated DSP processing engine that forms a precisely matched, compact system with professional acoustic properties required by DJs and musicians for both portable use or permanent installation The 15 inch reflex loaded subwoofer provides powerful accurate bass sound while the satellites with 8 inch mid drivers and 1 inch HF drivers are responsible for natural sounding mids and crystal-clear highs.
Features
Flexible Use
The FLEXi 15 was designed for a fast and flexible on-site setup, and maximum reliability with a modern design and a handling optimisation (the tripod is not included on the system).
DSP Preset
System presets are selected by simply rotating the encoder, instantly optimizing the system sound for the required configuration. The presets apply precise DSP sound adjustment settings automatically, eliminating the need for additional hardware, software, and, most importantly, time.
All About Details
Subwoofer with pole mount for satellite speaker, 4 castors, two with locking brakes. Two speaker cables are included in the delivery. Speaker protective covers, matching speaker stands, spacer tubes, and wall mount brackets are also available separately.
Expand Your System
You can link two or more FLEXi 15 to easily expand your system. Simply connect both systems using a XLR cable (solid line).
Specifications
| Product Type | Flexible Active PA System – 1 x 15″ + 2 x 8″ |
|---|---|
| Frequency Response (-6dB) | 40Hz – 19kHz |
| Nominal Coverage (-6dB) | 50-100° H x 55º V (User Rotatable) |
| FR Maximum SPL (calculated) | 121dB |
| Subwoofer Driver | 15″ Woofer | 3″ Voice Coil |
| SW Maximum SPL (calculated) | 127dB |
| Low Frequency Driver | 8″ Woofer | 1.5″ Voice Coil |
| High Frequency Driver | 1.4″ Driver | 1.35″ Voice Coil |
| Amplifier Technology | Class D with DSP |
| Amplifier Power | RMS: 1000W | PGM: 2000W |
| DSP Technology |
24bit | 48kHz DSP
|
| DSP Presets | Flat Indoor, Flat Outdoor, Music, DJ, Vocal |

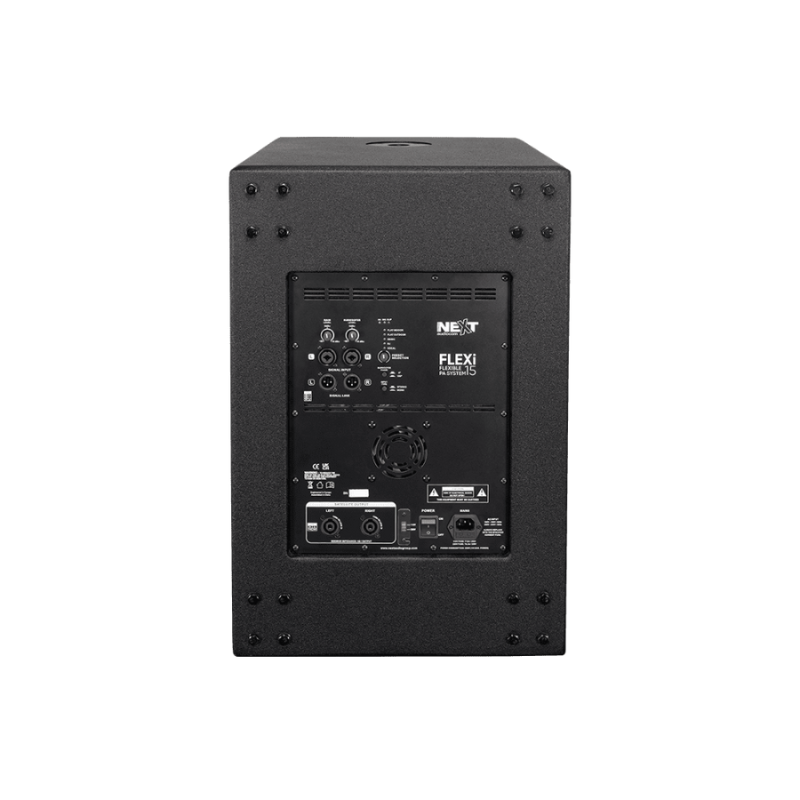

| Control Type | Parameters Controlled on the Subwoofer Panel |
| Audio Signal Inputs | Mono / Stereo Analog Audio |
| Input Connectors | 2 x XLR / TRS Combo |
| Audio Signal Outputs | Mono / Stereo Analog Audio |
|---|---|
| Output Connectors | 2 x XLR |
| Speakers Output Connectors | 2 x NL4 (1+/1-) |
| Protections | Overload and Overcurrent |
| Operating Temperature Range | 0ºC – 45ºC (32ºF – 113ºF) |
| Cooling Type | Speed Controlled Fan |
| Power Supply | Switching Mode Power Supply (SMPS) |
| Power Input | AC 110V – 120V | AC 220V – 240V 50Hz/60Hz |
| Mains Connector | Standard IEC socket |
| Power Consumption | 280W (1/8 Max. Power) |
| Special Features |
Subwoofer Phase (0º / 180º) | Input Type (Mono / Stereo) | Main Level Adjust. | Subwoofer Level Adjust.
|
| Fittings | 35mm Pole Mount Socket |
| Handles | Subwoofer: One on Each Side | Satellite: One on Top |
| Grille | Powder Coated Steel Grille with Acoustical Foam |
| Construction | 12mm and 15mm Multi-Laminate Plywood |
| Finish | Poliurea Coating |
| Dimensions (WxHxD) | Subwoofer: 440 x 655 x 583mm (17.3 x 25.8 x 23 in) | Satellite: 250 x 440 x 238mm (9.8 x 17.3 x 9.4 in) |
| Accessories | peaker Cables and Subwoofer Wheels are included |
