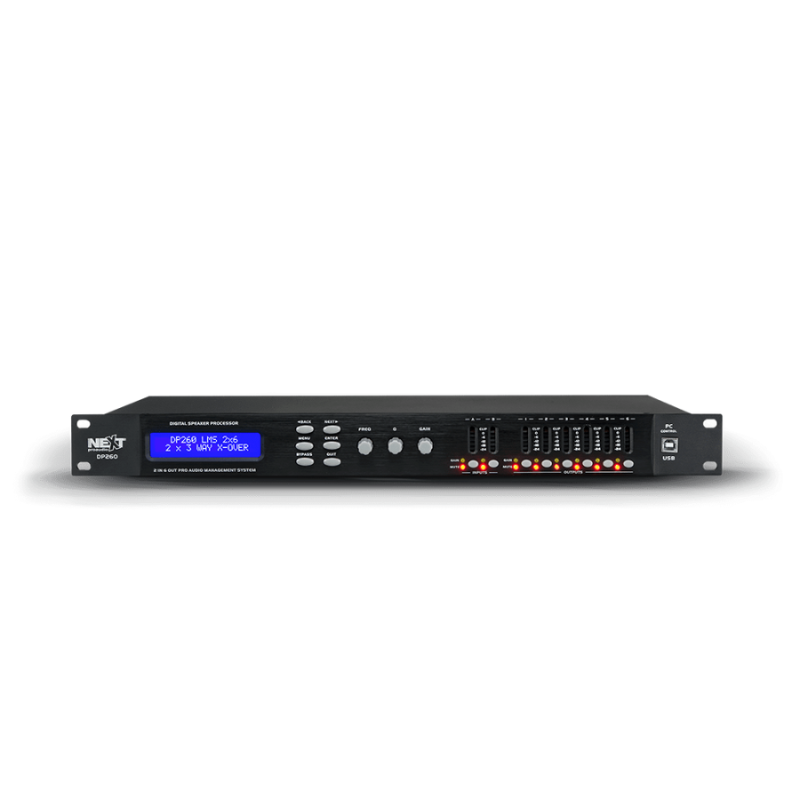

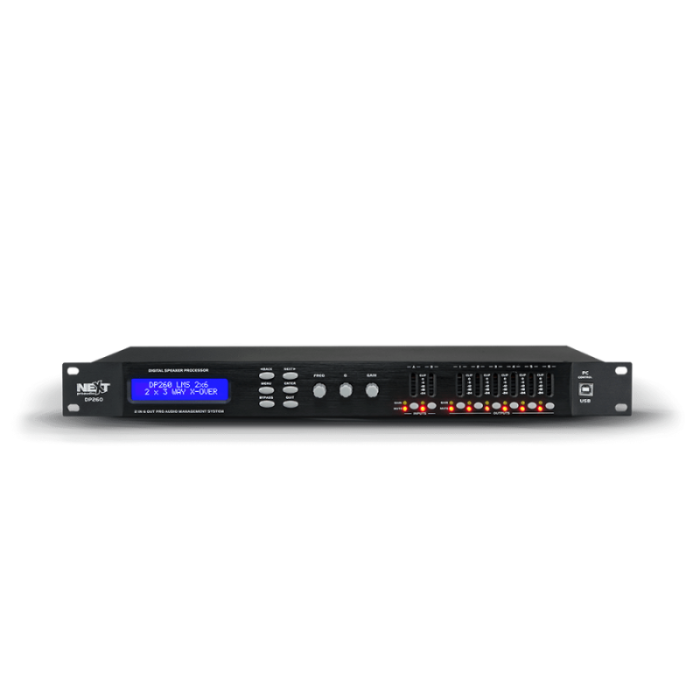

Next Audio DP260 2IN 6OUT Loudspeaker Management System
Description
Description
Specifications
| Product Type | Electronicaly balanced |
|---|---|
| Frequency Response (-6dB) | ± 0.5dB (20Hz to 20.000Hz) |
| Amplifier Gain | -40dB to +6dB in 0.1dB steps |
| THD+N | 0.005% (1.000Hz at +4dBu) |
| Common Mode Rejection Ratio (CMRR) | >102dB (50Hz to 10.000Hz) |
| Crosstalk | <100dB |
| Input Impedance | >10kΩ |
| DSP Technology | 48kHz/24-Bit 40Bit floating point |
| Latency | 1,5ms |
| DSP Presets | 30 |
| Delay Adjustment | Up to 6.979ms (2.397m) per output |
| Input Connectors | 3 pin XLR |
| Power Input | 90-250 VAC (50Hz – 60Hz) – 18VA |
| Mains Connector | Standard IEC socket |
| Dimensions (WxHxD) | 483mm x 168mm x 44.5mm |
| Net Weight | 3,6kg |
