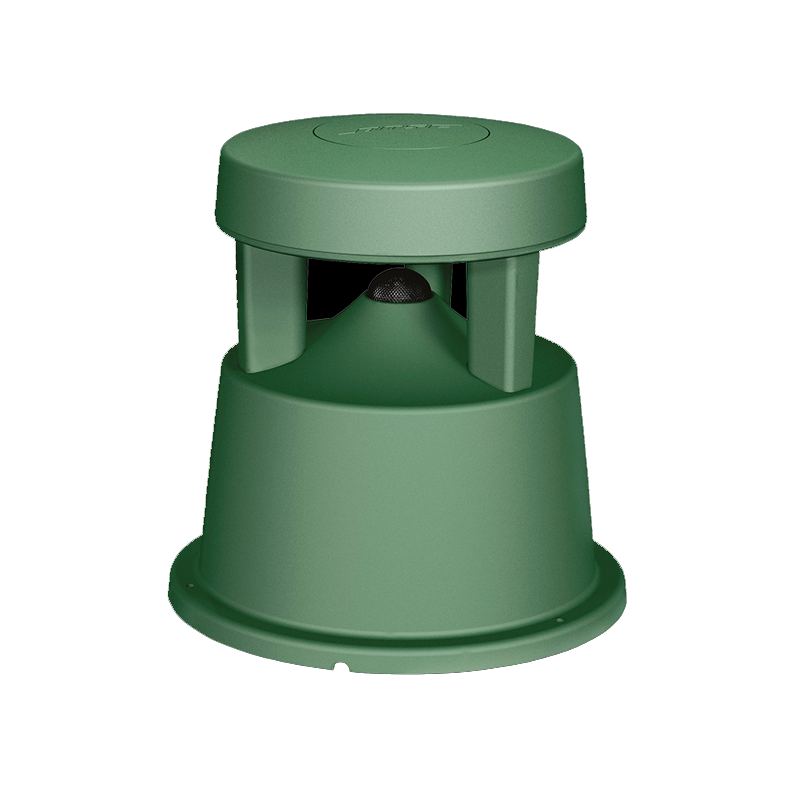

FreeSpace 360P Series II
Full-range environmental loudspeaker designed to blend with landscaping for in-ground or above-ground applications, such as shopping malls, outdoor restaurants, resorts and theme parks. Features 360° horizontal coverage and frequency range down to 60 Hz.
For indoor and outdoor applications.
Technical Data Sheet
Description
Description
FEATURES
- Full-range environmental loudspeaker with one downward firing 4.5-inch (114 mm) advance composite environmental full-range driver for in-ground or above-ground mounting
- Domed port grille reflects sound into the listening area for clear, consistent performance

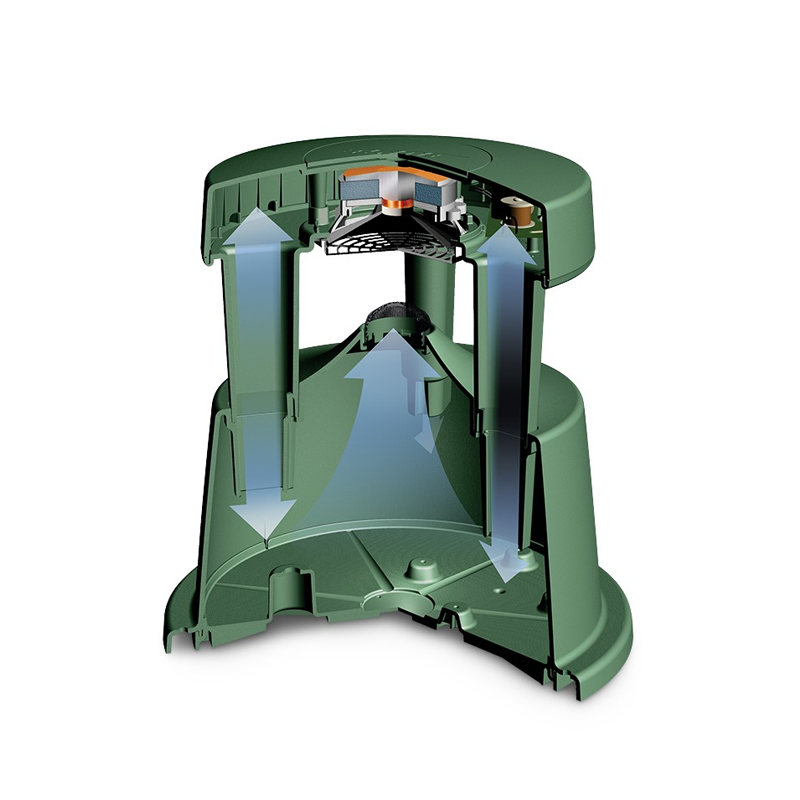

- Cabinet shape acts as acoustic diffuser directing mid- and high-frequency energy out towards listeners. Base of loudspeaker acts as a tuned, multi-chambered ported enclosure
- Multi-tap line transformer provides easy-to-change tap settings
- Tamper-resistant design
- Internal speaker protection circuit safeguards drivers
MECHANICAL DIAGRAMS
Top View
Bottom View
Side View
Applications
Designed for a wide range of applications, including:
- Shopping centers
- Restaurants and bars
- Cafes
- Resorts and hospitality venues
- Theme parks
- Atriums and malls
SPECIFICATIONS
TECHNICAL SPECIFICATION
PHYSICAL
- Ingress Protection IP35
- Mounting/Rigging Provisions 3 × #10 (M4) holes in base, 3 × #10 (M4) screws required
- Net Weight 14.5 lb (6.6 kg)
- Product Dimensions (H×W×D) 368 mm × 379 mm (14.5 in × 14.9 in), loudspeaker diameter × height
- Shipping Weight 14.9 lb (6.8 kg)
PERFORMANCE
- Frequency Range (-10 dB) 60 Hz – 15,000 Hz
- Coverage, Horizontal 360°
- Maximum SPL at 1 m 107 dB
- Nominal Impedance 8Ω (transformer bypassed)
- Power Handling, Continuous 70/100V: 80 W / 8Ω: 65 W
- Power Handling, Peak 70/100V: 320 W / 8Ω: 260 W
- Recommended Signal Processing No Bose Professional EQ required. For best performance, Bose Professional EQ presets available.
- Sensitivity (SPL/1 W at 1 m) 87 dB
- Transformer Taps, 100V 10, 20, 40, 80 W, bypass
- Transformer Taps, 70V 10 W, 20 W, 40 W, 80 W, bypass
- Coverage, Vertical 50°
TRANSDUCERS
- Driver Protection Recommended high-pass filter 60 Hz with minimum 24-dB/octave filter, Presets available
- Low-Frequency Transducer Quantity and Size 1 × Bose Professional 4.5 in (114 mm) environmental driver
