Description
FEATURES
- Combine DesignMax models to complete any design, big or small — 12 loudspeakers to mix and match, from 2-inch, low-profile models to 8-inch, high-SPL compression-driver loudspeakers and outdoor-rated options
- Deliver rich lows and clear, intelligible highs with coaxial two-way drivers — no DSP or EQ required. For even better sound, use select Bose Professional DSPs and amplifiers to enable Bose Professional loudspeaker EQ and SmartBass processing, which expands performance and response at any listening level
- Blend with any room design with elegant form factors, minimum-bezel grilles available in black or white, and removable logos
- Reduce installation time with the patented QuickHold mounting system, which also reduces strain, hassle, and the chance of product damage
- Install easily with industry-standard accessories — all models include Euroblock connectors; in-ceiling models include plenum-rated backcans, tile bridges, and front-access audio wiring that makes installation and troubleshooting easier
- Deliver high SPL for demanding applications, including high-ceiling venues such as ballrooms, concourse, and convention centers
Applications
Designed for a wide range of applications, including:
- Performing arts venues
- Places of worship
- Conference centers
- Retail stores
- Restaurants and bars
- Hospitality venues
TECHNICAL SPECIFICATION
COMPLIANCE
- Safety Agency Ratings UL-1480A, S5591/ UL Listed, in compliance with UL2043 for plenum-space installation, NFPA70 & NFPA90-A, CE compliant

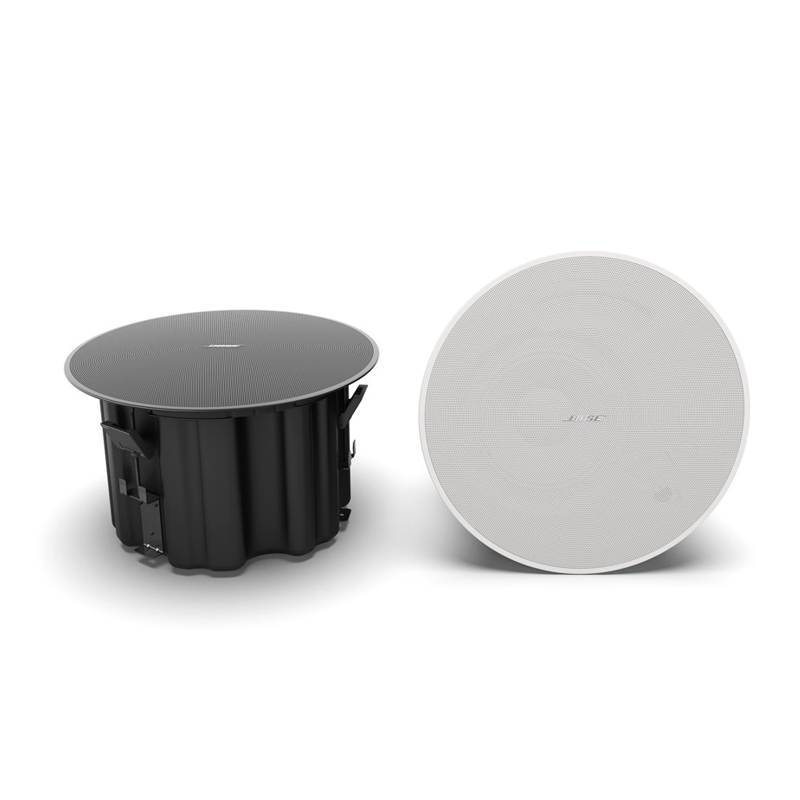

PHYSICAL
- Colors Black (RAL 9005), white (RAL 9003), paintable
- Cutout Diameter 13.8 in (349 mm)
- Enclosure Material Engineered-plastics front baffle with integrated steel-formed backcan
- Environmental Testing Indoor only

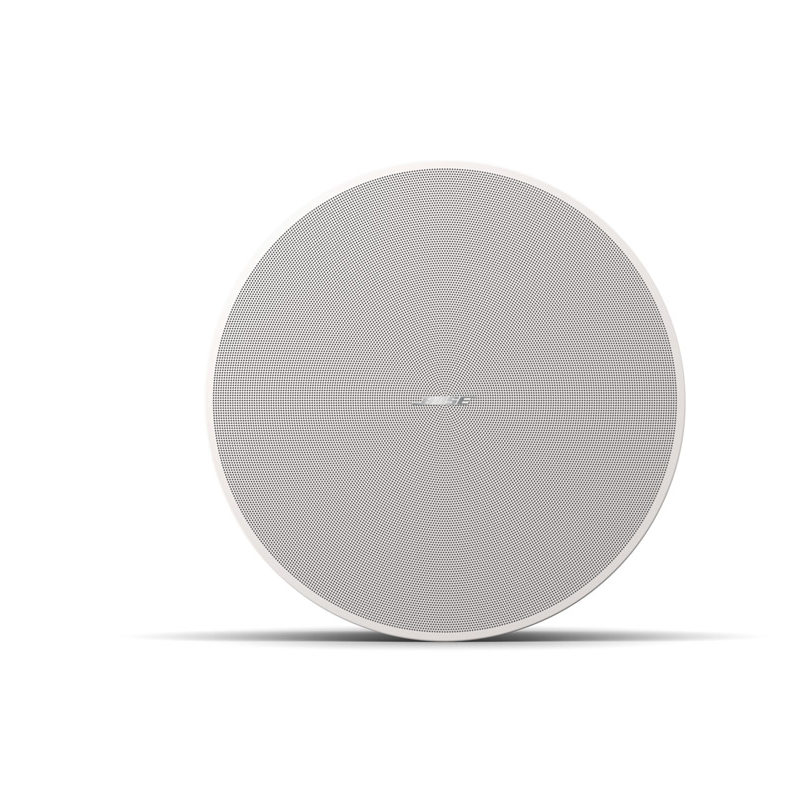

- Grille Material Magnetically attached perforated steel, powder-coated finish, paintable, with safety tether
- Logo Rotatable, removable
- Mounting/Rigging Provisions (3) QuickHold spring-loaded mounting arms, (3) safety cable attachment points
- Net Weight 21.1 lb (9.6 kg), loudspeaker with grille / 2.2 lb (1.0 kg), tile bridge
- Operating Temperature 0 °C to 50 °C (32 °F to 122 °F)
- Product Dimensions (H×W×D) 16.1 in × 10.0 in (409 mm × 255 mm), loudspeaker diameter × depth / 13.4 in × 9.5 in (340 mm × 240 mm), backcan diameter × depth
- Shipping Weight 28.0 lb (12.7 kg), single
PERFORMANCE
- Frequency Range (-10 dB) 52 Hz – 20,000 Hz
- Coverage, Horizontal 135° conical
- Maximum SPL at 1 m 113 dB
- Nominal Impedance 8 Ω (transformer bypass)
- Power Handling, Continuous 150 W
- Power Handling, Peak 600 W
- Recommended Signal Processing Not required, Bose Professional EQ voicing and SmartBass processing available
- Sensitivity (SPL/1 W at 1 m) 91 dB
- Transformer Taps, 100V 5, 10, 20, 40, 80 W, bypass
- Transformer Taps, 70V 2.5 W, 5 W, 10 W, 20 W, 40 W, 80 W, bypass
- Coverage, Vertical 135° conical
TRANSDUCERS
- Crossover Frequency 1.5 kHz, passive 2-way crossover
- Driver Protection Recommended high-pass protection 48 Hz with recommended 24 dB/octave filter; Overload protection; Resistor-network power reduction with automatic reset
- High-Frequency Transducer Quantity and Size 1 × 1 in (25 mm) compression driver, coaxial center-firing
- Low-Frequency Transducer Quantity and Size 1 × 8 in (203 mm) woofer
