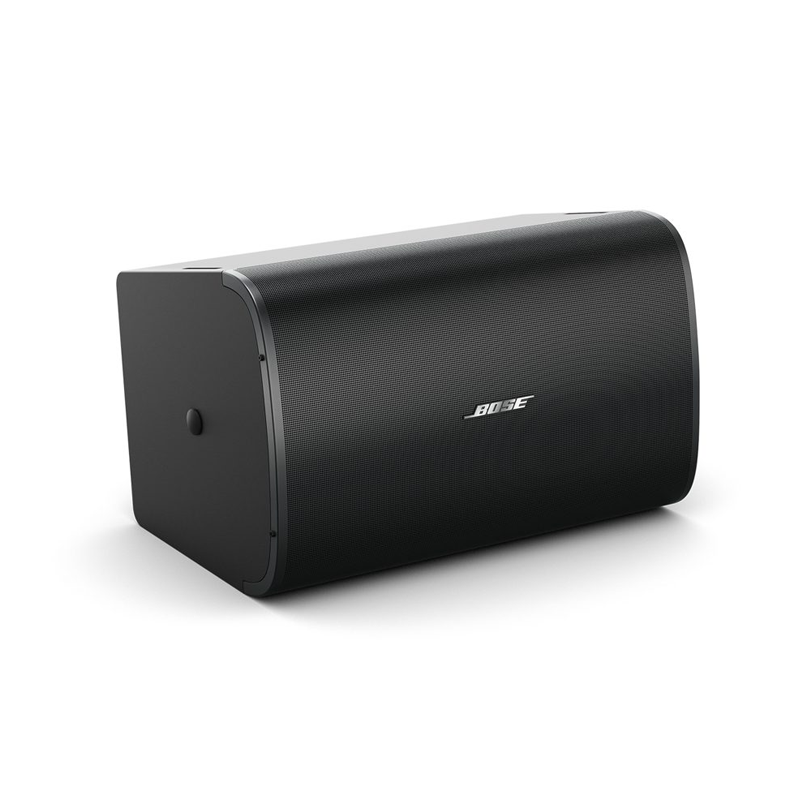

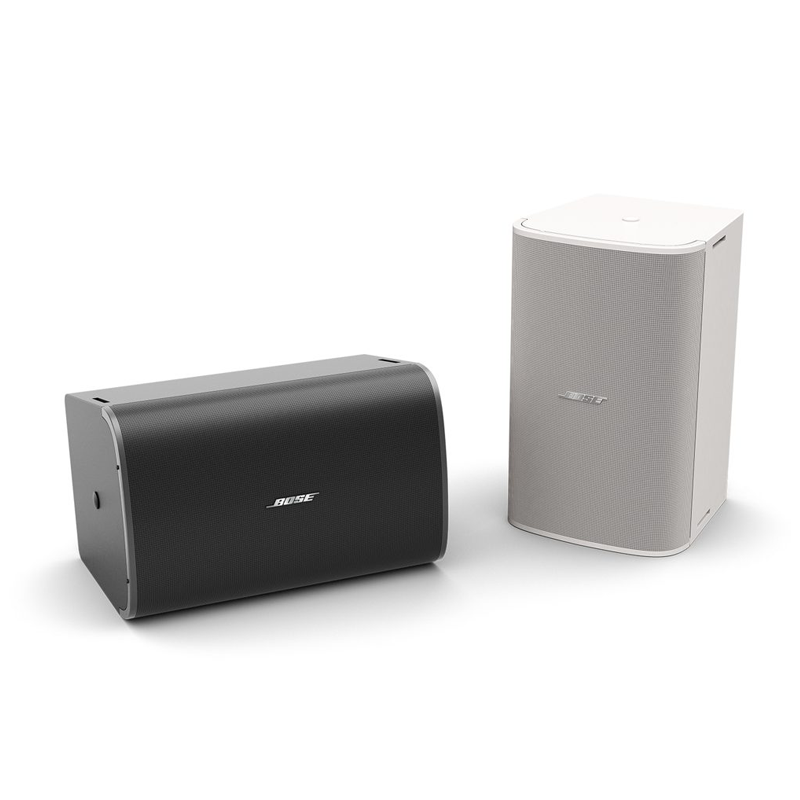

Bose DesignMax DM10S-SUB subwoofer
Delivering rich low-end performance, 300-watt Bose Professional DM10S-SUB subwoofer brings instantly impressive bass to any commercial sound installation. The surface-mounted DM10S-SUB has a 10-inch woofer, 35 Hz – 125 Hz frequency range, and locks onto a hidden QuickHold U-bracket. DesignMax subwoofers complement and enhance any DesignMax installation.
Description
Description
FEATURES
- Combine DesignMax models to complete any design, big or small — 12 loudspeakers to mix and match, from 2-inch, low-profile models to 8-inch, high-SPL compression-driver loudspeakers and outdoor-rated options
- Deliver rich bass performance with custom Bose Professional drivers; for optimal performance use select Bose Professional DSPs and amplifiers to enable Bose Professional loudspeaker EQ and SmartBass processing, which expands performance and response at any listening level
- Blend with any room design with elegant form factors, minimum-bezel grilles available in black or white, and removable logos
- Reduce installation time with the patented QuickHold mounting system, which also reduces strain, hassle, and the chance of product damage
- Install easily with industry-standard accessories — all models include Euroblock connectors; in-ceiling models include plenum-rated backcans, tile bridges, and front-access audio wiring that makes installation and troubleshooting easier
Applications
Designed for a wide range of applications, including:
- Performing arts venues
- Places of worship
- Conference centers
- Retail stores
- Restaurants and bars
- Hospitality venues
SPECIFICATIONS
TECHNICAL SPECIFICATION
COMPLIANCE
- Safety Agency Ratings UL-1480A, S5591/ UL Listed, NFPA70, CE compliant
PHYSICAL

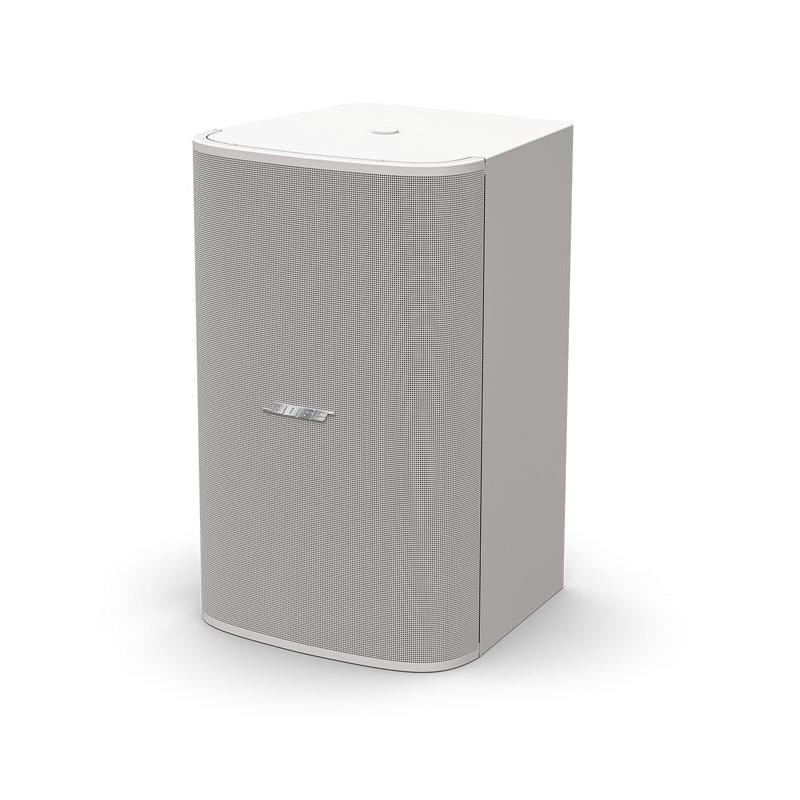

- Colors Black (RAL 9005), white (similar to RAL 9003), paintable
- Enclosure Material High-density wood composite with solid color laminate, UV fade-resistant
- Environmental Testing Indoor only
- Grille Material Perforated steel, powder-coated finish, paintable, tamper-resistant design
- Logo Rotatable, removable
- Mounting/Rigging Provisions QuickHold mounting system with included U-Bracket, (1) M8 safety cable attachment insert
- Net Weight 35.5 lb (16.1 kg), loudspeaker with grille & bracket
- Operating Temperature 0 °C to 50 °C (32 °F to 122 °F)
- Product Dimensions (H×W×D) 19.8 in × 12.5 in × 12.7 in (502 mm × 316 mm × 323 mm), loudspeaker / 19.8 in × 12.5 in × 13.6 in (502 mm × 316 mm × 346 mm), loudspeaker with bracket
- Shipping Weight 41.5 lb (18.8 kg)
PERFORMANCE
- Frequency Range (-10 dB) 35 Hz – 125 Hz
- Coverage, Horizontal Omnidirectional below 200 Hz
- Maximum SPL at 1 m 115 dB
- Nominal Impedance 8 Ω (transformer bypass)
- Power Handling, Continuous 300 W
- Power Handling, Peak 1200 W
- Recommended Signal Processing Not required, Bose Professional EQ voicing and SmartBass processing available
- Sensitivity (SPL/1 W at 1 m) 90 dB
- Transformer Taps, 100V 40, 80, 150 W, bypass
- Transformer Taps, 70V 20 W, 40 W, 80 W, 150 W, bypass
- Coverage, Vertical Omnidirectional below 200 Hz
TRANSDUCERS
- Crossover Frequency 80 Hz – 200 Hz via active crossover in DSP
- Driver Protection Recommended high-pass protection 40 Hz with recommended 18 dB/octave filter
- Low-Frequency Transducer Quantity and Size 1 × 10 in (254 mm) woofer
Technical Data Sheet
